FN9263 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Features	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Connector Style	Material Flammability Rating	Approval Agency	Mounting Type	Ingress Protection	Filter Type	Current Rating - Filter	Connector Type	Switch Features	Termination	Termination	Termination	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]
TE Connectivity AMP Connectors FN9263-3-06	Front or Rear Side Mount	33.2 mm	29.2 mm	IEC 320-C14	UL94 V-2	CQC CSA ENEC UL	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	3 A	Receptacle Male Blades - Module	Switch On-Off	6.3 mm	Quick Connect	0.25 "

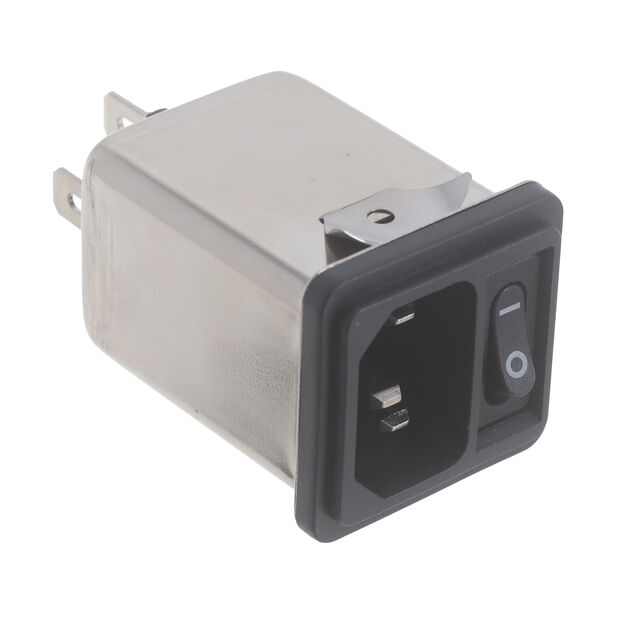

TE Connectivity AMP Connectors FN9263S-3-06		32.6 mm	29 mm	IEC 320-C14	UL94 V-2	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	3 A	Receptacle Male Blades - Module	Switch On-Off	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.6 mm	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9263S-2-06		32.6 mm	29 mm	IEC 320-C14	UL94 V-2	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	2 A	Receptacle Male Blades - Module	Switch On-Off	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.6 mm	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9263S-8-06		32.6 mm	29 mm	IEC 320-C14	UL94 V-2	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	8 A	Receptacle Male Blades - Module	Switch On-Off	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.6 mm	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9263-2-06	Front or Rear Side Mount	33.2 mm	29.2 mm	IEC 320-C14	UL94 V-2	CQC CSA ENEC UL	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	2 A	Receptacle Male Blades - Module	Switch On-Off	6.3 mm	Quick Connect	0.25 "
TE Connectivity AMP Connectors FN9263-4-06	Front or Rear Side Mount	33.2 mm	29.2 mm	IEC 320-C14	UL94 V-2	CQC CSA ENEC UL	Flange Panel Mount	IP40	Filtered (EMI RFI) - Commercial	4 A	Receptacle Male Blades - Module	Switch On-Off	6.3 mm	Quick Connect	0.25 "
TE Connectivity AMP Connectors FN9263S1-10-06		33.3 mm	28.3 mm	IEC 320-C14	UL94 V-2	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	10 A	Receptacle Male Blades - Module	Switch On-Off	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.6 mm	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9263S1-8-06		33.3 mm	28.3 mm	IEC 320-C14	UL94 V-2	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	8 A	Receptacle Male Blades - Module	Switch On-Off	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.6 mm	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9263S1-4-06		33.3 mm	28.3 mm	IEC 320-C14	UL94 V-2	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	4 A	Receptacle Male Blades - Module	Switch On-Off	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.6 mm	0.059 in	0.024 in
TE Connectivity AMP Connectors FN9263S-6-06		32.6 mm	29 mm	IEC 320-C14	UL94 V-2	CQC CSA ENEC UL	Panel Mount Snap-In	IP40	Filtered (EMI RFI) - Commercial	6 A	Receptacle Male Blades - Module	Switch On-Off	6.3 mm	Quick Connect	0.25 "	1.5 mm	0.6 mm	0.059 in	0.024 in
