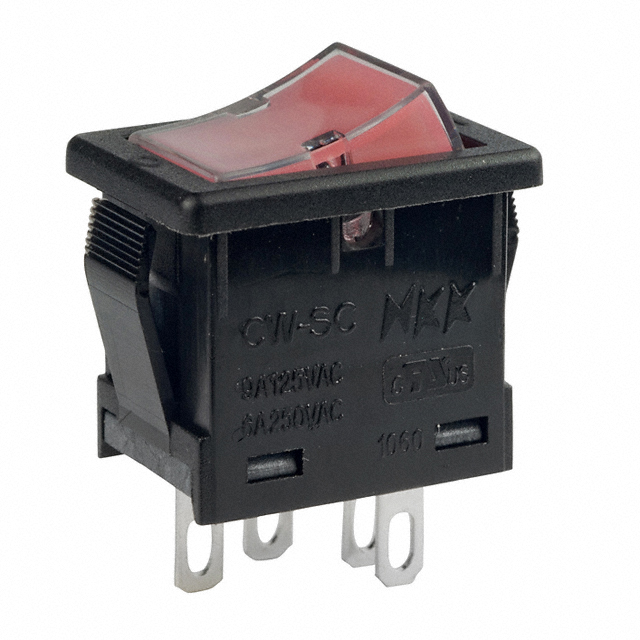

CWSC11JC Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPST 9A 125V
| Part | Electrical Life | Mechanical Life | Current Rating (Amps) | Color - Actuator/Cap | Voltage Rating - AC | Illumination Type, Color | Mounting Type | Features | Actuator Type | Switch Function | Actuator Marking | Approval Agency | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Voltage (Nominal) | Termination Style | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Cycles | 30000 Steps | 9 A | Clear | 125 V | LED Red | Panel Mount Snap-In | Audible Click | Concave (Curved) - Illuminated | On-Off | No Marking | UL | 12.9 mm | 19.2 mm | 50 °C | -10 °C | 1.95 VDC | Quick Connect - 0.110" (2.8mm) | SPST |
