R18525 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

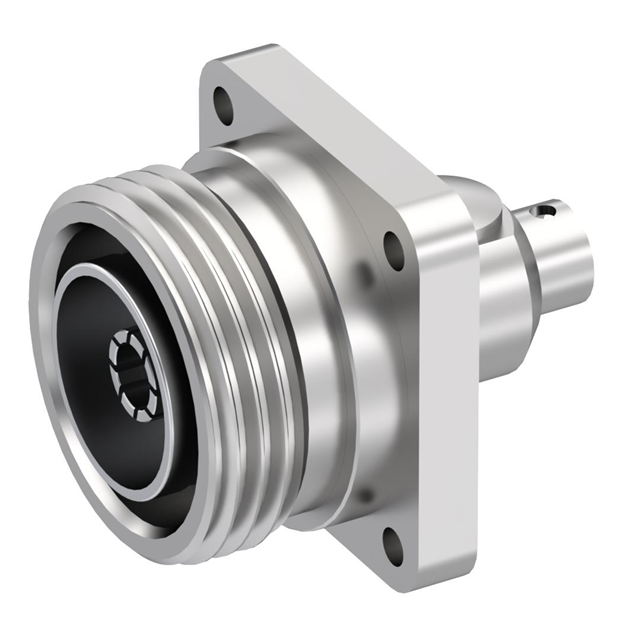

7-16 / STRAIGHT SQUARE FLANGE JA
| Part | Center Contact Plating | Dielectric Material | Mating Cycles | Voltage Rating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Shield Termination | Contact Termination | Mounting Feature | Ingress Protection | Cable Group | Fastening Type | Housing Color | Connector Type | Impedance | Connector Style | Frequency - Max [Max] | Number of Ports | Center Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Silver | Polytetrafluoroethylene (PTFE) | 500 | 1400 V | White Bronze | -55 C | 105 ░C | Brass | Solder | Solder | Flange | IP67 - Dust Tight Waterproof | RG-401 (.250" Semi Rigid) | Threaded | Silver | Female Socket Jack | 50 Ohms | 7/16 DIN | 7.5 GHz | 1 | Beryllium Copper | Panel Mount |
 Radiall USA, Inc. | Silver | Polytetrafluoroethylene (PTFE) | 500 | 1000 VDC | White Bronze | -55 C | 105 ░C | Brass | Solder | Solder | Flange | IP67 - Dust Tight Waterproof | Threaded | Silver | Female Socket Jack | 50 Ohms | 7/16 DIN | 7.5 GHz | 1 | Beryllium Copper | Panel Mount |
