CFM60 Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

AC/DC DIN RAIL SUPPLY 15V 60W

Part	Operating Temperature [Max]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Approval Agency	Applications	Features	Voltage - Output 1	Voltage - Isolation	Efficiency	Voltage - Output 1 [custom]	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Current - Output 1	Type	Voltage - Output 2	Voltage - Output 3	Current - Output 2	Current - Output 3	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)

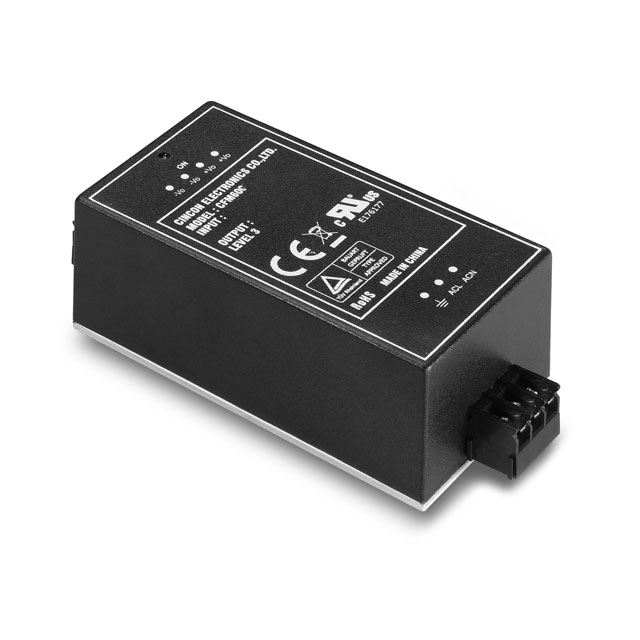

Cincon Electronics Co. LTD CFM60C150-DR	70 °C	90 VAC	264 VAC	AC	2.32 "	4.33 in	1.62 "	41.2 mm	59 mm	110 mm	1	60 W	4 A	CE cURus FCC TUV	ITE (Commercial)	Universal Input	15 V	4.242 kV	86 %
Cincon Electronics Co. LTD CFM60C240-DR	70 °C	90 VAC	264 VAC	AC	2.32 "	4.33 in	1.62 "	41.2 mm	59 mm	110 mm	1	60 W	2.5 A	CE cURus FCC TUV	ITE (Commercial)	Universal Input	24 V	4.242 kV	86 %
Cincon Electronics Co. LTD CFM60C480-DR	70 °C	90 VAC	264 VAC	AC	2.32 "	4.33 in	1.62 "	41.2 mm	59 mm	110 mm	1	60 W	1.25 A	CE cURus FCC TUV	ITE (Commercial)	Universal Input	48 V	4.242 kV	88 %
Cincon Electronics Co. LTD CFM60C360-DR	70 °C	90 VAC	264 VAC	AC	2.32 "	4.33 in	1.62 "	41.2 mm	59 mm	110 mm	1	60 W	1.67 A	CE cURus FCC TUV	ITE (Commercial)	Universal Input		4.242 kV	88 %	36 V

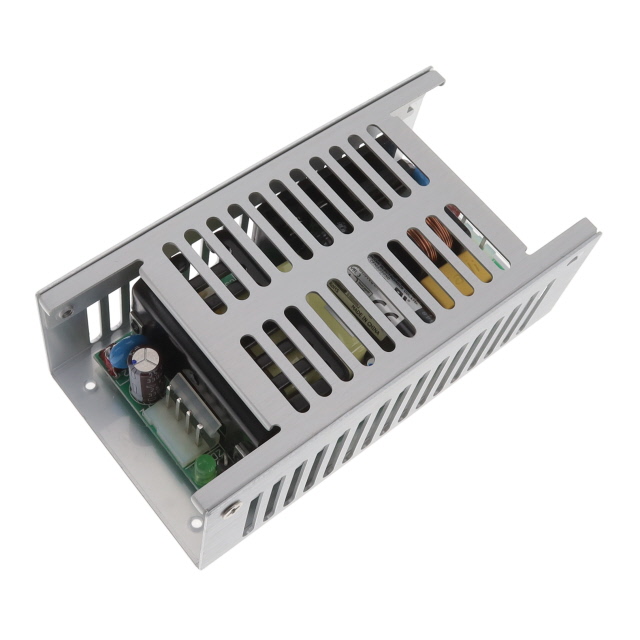

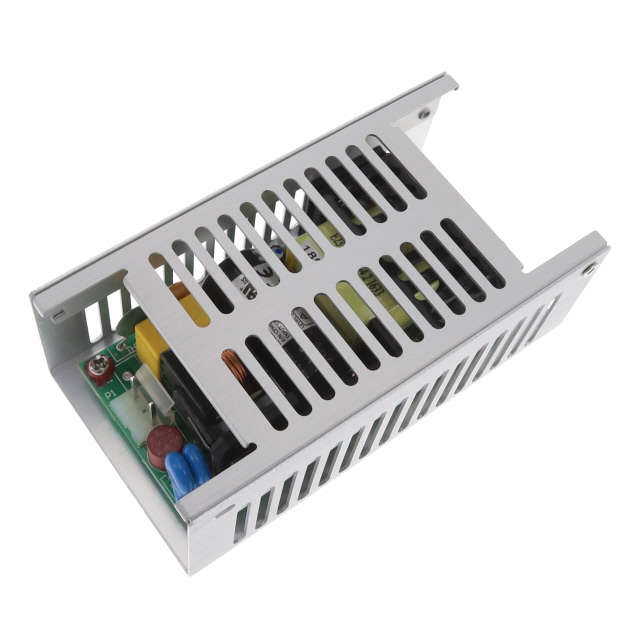

Cincon Electronics Co. LTD CFM60S050-CA	70 °C				2.44 "	4.61 "	1.58 in	40 mm	62 mm	117 mm	1	40 W		CE cURus FCC TUV	ITE (Commercial)	Universal Input	5 V	4.242 kV	77 %		264 VAC	90 VAC	Chassis Mount	8 A	Enclosed
Cincon Electronics Co. LTD CFM60C300-DR	70 °C	90 VAC	264 VAC	AC	2.32 "	4.33 in	1.62 "	41.2 mm	59 mm	110 mm	1	60 W	2 A	CE cURus FCC TUV	ITE (Commercial)	Universal Input	30 V	4.242 kV	86 %

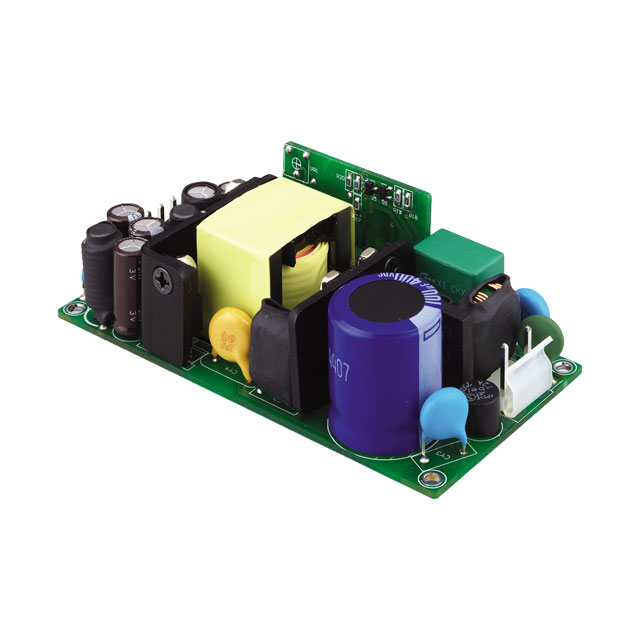

Cincon Electronics Co. LTD CFM60T-03	60 °C				2 in	4 "	1.26 "			101.6 mm	3	62 W		CE cURus FCC TUV	ITE (Commercial)	Universal Input	5 V	4.242 kV	83 %		264 VAC	90 VAC	Chassis Mount	4 A	Open Frame	24 V	-12 V	1.5 A	500 mA	32 mm	50.8 mm
Cincon Electronics Co. LTD CFM60T-02	60 °C				2 in	4 "	1.26 "			101.6 mm	3	62 W		CE cURus FCC TUV	ITE (Commercial)	Universal Input	5 V	4.242 kV	83 %		264 VAC	90 VAC	Chassis Mount	4 A	Open Frame	15 V	-15 V	2.5 A	300 mA	32 mm	50.8 mm
Cincon Electronics Co. LTD CFM60T-01	60 °C				2 in	4 "	1.26 "			101.6 mm	3	62 W		CE cURus FCC TUV	ITE (Commercial)	Universal Input	5 V	4.242 kV	83 %		264 VAC	90 VAC	Chassis Mount	4 A	Open Frame	12 V	-12 V	3 A	500 mA	32 mm	50.8 mm
Cincon Electronics Co. LTD CFM60C120-DR	70 °C	90 VAC	264 VAC	AC	2.32 "	4.33 in	1.62 "	41.2 mm	59 mm	110 mm	1	60 W		CE cURus FCC TUV	ITE (Commercial)	Universal Input	12 V	4.242 kV	85 %													5 A
