A22NN Series

Manufacturer: Omron Automation and Safety

Catalog

Catalog

PSHIN FLT BM BZL BLUE 2NC

...

Part	Electrical Life	Mechanical Life	Termination Style	Mounting Type	Actuator Type	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Color - Actuator/Cap	Switch Function	Actuator Marking	Current Rating (Amps)	Type	Voltage Rating - DC	Panel Cutout Dimensions [diameter]	Ingress Protection
Omron Automation and Safety A22NN-MNM-NAA-P202-NN	500000 Cycles	5000000 Cycles	Spring Terminal	Panel Mount Front	Button Flush Round	120 V	-25 °C	70 °C	DPST-NC	Blue	On-Mom	No Marking	10 A	Standard	24 V
Omron Automation and Safety A22NN-RNA-NRA-P002-NN	500000 Cycles	500000 Cycles	Spring Terminal	Panel Mount Front	Button Flush Round	120 V	-25 °C	70 °C	SPST-NC	Red	On-Off	No Marking	10 A	Standard	24 V

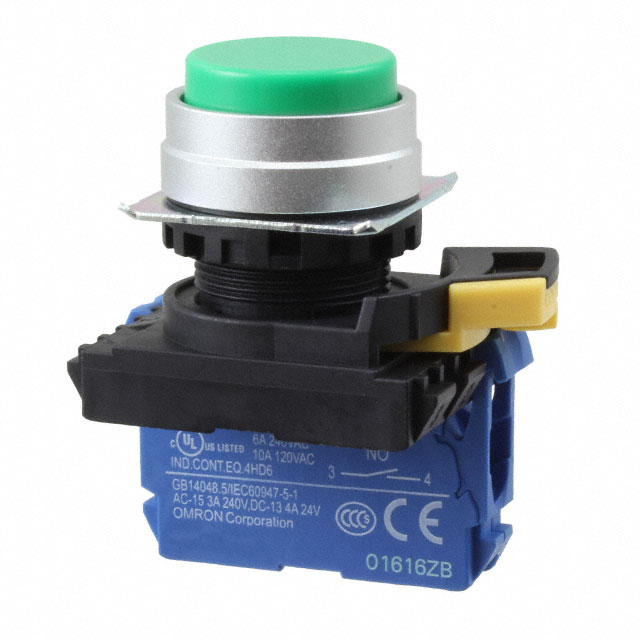

Omron Automation and Safety A22NN-MPA-NGA-G100-NN	500000 Cycles	500000 Cycles	Screw Terminal	Panel Mount Front	Button Round	120 V	-25 °C	70 °C	SPST-NO	Green	Off-On	No Marking	10 A	Standard	24 V	22.3 mm	IP66 - Dust Tight Water Resistant
Omron Automation and Safety A22NN-BNA-NAA-G202-NN	500000 Cycles	500000 Cycles	Screw Terminal	Panel Mount Front	Button Flush Round	120 V	-25 °C	70 °C	DPST-NC	Blue	On-Off	No Marking	10 A	Standard	24 V	22.3 mm	IP66 - Dust Tight Water Resistant
Omron Automation and Safety A22NN-MNA-NWA-P202-NN	500000 Cycles	500000 Cycles	Spring Terminal	Panel Mount Front	Button Flush Round	120 V	-25 °C	70 °C	DPST-NC	White	On-Off	No Marking	10 A	Standard	24 V
Omron Automation and Safety A22NN-MPM-NGA-G202-NN	500000 Cycles	5000000 Cycles	Screw Terminal	Panel Mount Front	Button Round	120 V	-25 °C	70 °C	DPST-NC	Green	On-Mom	No Marking	10 A	Standard	24 V	22.3 mm	IP66 - Dust Tight Water Resistant
Omron Automation and Safety A22NN-BPM-NYA-G101-NN	500000 Cycles	5000000 Cycles	Screw Terminal	Panel Mount Front	Button Round	120 V	-25 °C	70 °C	DPST-NO	Yellow	Off-Mom	No Marking	10 A	Standard	24 V	22.3 mm	IP66 - Dust Tight Water Resistant
Omron Automation and Safety A22NN-BPA-NWA-G101-NN	500000 Cycles	500000 Cycles	Screw Terminal	Panel Mount Front	Button Round	120 V	-25 °C	70 °C	DPST-NO	White	Off-On	No Marking	10 A	Standard	24 V	22.3 mm	IP66 - Dust Tight Water Resistant
Omron Automation and Safety A22NN-MNM-NYA-G100-NN	500000 Cycles	5000000 Cycles	Screw Terminal	Panel Mount Front	Button Flush Round	120 V	-25 °C	70 °C	SPST-NO	Yellow	Off-Mom	No Marking	10 A	Standard	24 V	22.3 mm	IP66 - Dust Tight Water Resistant
Omron Automation and Safety A22NN-MNA-NYA-G101-NN	500000 Cycles	500000 Cycles	Screw Terminal	Panel Mount Front	Button Flush Round	120 V	-25 °C	70 °C	DPST-NO	Yellow	Off-On	No Marking	10 A	Standard	24 V	22.3 mm	IP66 - Dust Tight Water Resistant
