M2015TX Series

Catalog

SWITCH ROCKER SPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Termination Style	Mounting Type	Voltage Rating - DC	Current Rating (Amps)	Switch Function	Color - Actuator/Cap	Actuator Type	Actuator Marking	Features	Circuit	Approval Agency
NKK Switches M2015TXG13-GA	50000 Cycles	50000 Cycles	85 °C	-30 ░C	28 V	PC Pin	Through Hole	28 V	0.4 VA	On-Mom	Black	Paddle	No Marking	Epoxy Sealed Terminals	SPDT	CSA UL

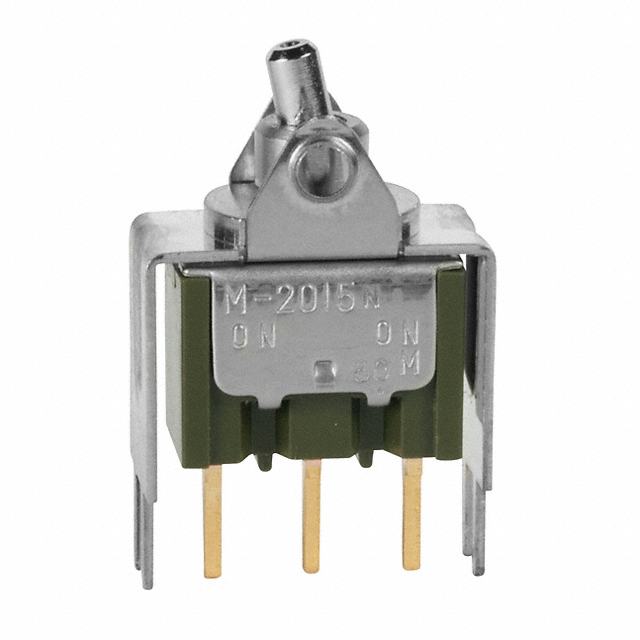

NKK Switches M2015TXG13	50000 Cycles	50000 Cycles	85 °C	-30 ░C	28 V	PC Pin	Through Hole	28 V	0.4 VA	On-Mom		Actuator Arm Cap Required	Varies by Cap	Epoxy Sealed Terminals	SPDT	CSA UL
NKK Switches M2015TXG13-EA	50000 Cycles	50000 Cycles	85 °C	-30 ░C	28 V	PC Pin	Through Hole	28 V	0.4 VA	On-Mom	Black	Paddle	No Marking	Epoxy Sealed Terminals	SPDT	CSA UL
NKK Switches M2015TXG13-GG	50000 Cycles	50000 Cycles	85 °C	-30 ░C	28 V	PC Pin	Through Hole	28 V	0.4 VA	On-Mom	Blue	Paddle	No Marking	Epoxy Sealed Terminals	SPDT	CSA UL

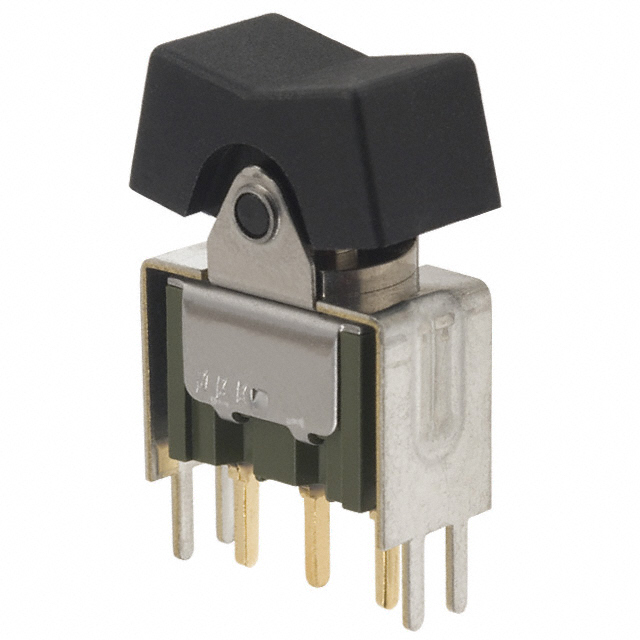

NKK Switches M2015TXG13-DA	50000 Cycles	50000 Cycles	85 °C	-30 ░C	28 V	PC Pin	Through Hole	28 V	0.4 VA	On-Mom	Black	Concave	No Marking	Epoxy Sealed Terminals	SPDT	CSA UL
NKK Switches M2015TXG13-GB	50000 Cycles	50000 Cycles	85 °C	-30 ░C	28 V	PC Pin	Through Hole	28 V	0.4 VA	On-Mom	White	Paddle	No Marking	Epoxy Sealed Terminals	SPDT	CSA UL
NKK Switches M2015TXW13-GA	50000 Cycles	25000 Steps	85 °C	-30 ░C	125 V	PC Pin	Through Hole	30 V	3 A 6 A	On-Mom	Black	Paddle	No Marking	Epoxy Sealed Terminals	SPDT	CSA UL
