GST60A48 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

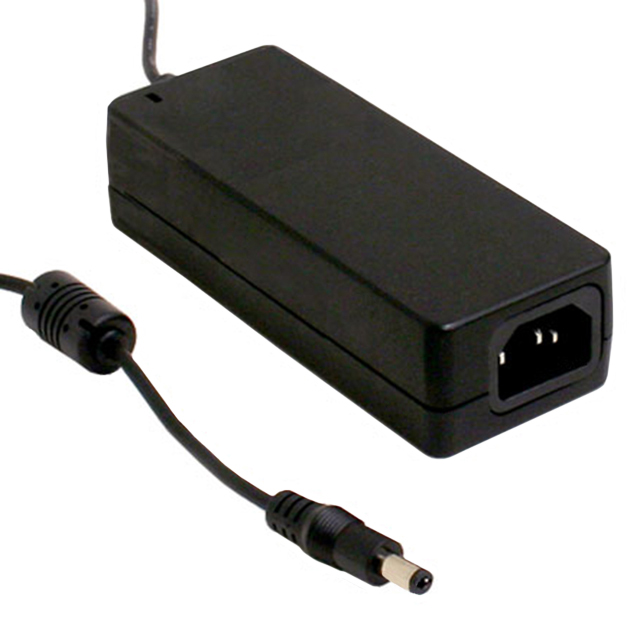

AC/DC DESKTOP ADAPTER 48V 60W
| Part | Cord Length | Cord Length | Input Connector | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Approval Agency | Power (Watts) | Efficiency | Current - Output (Max) [Max] | Region Utilized | Polarization | Form | Applications | Voltage - Output | Input Type | Operating Temperature [Min] | Operating Temperature [Max] | Output Connector [x] | Output Connector [diameter] | Output Connector | Voltage - Input [Max] | Voltage - Input [Min] | No Load Power Consumption |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 70.9 " | 1.8 m | IEC 320-C14 | 1.97 in | 1.24 " | 4.92 in | 50 mm | 125 mm | 31.5 mm | BIS BSMI CB CCC CE cULus EAC GS KC PSE RCM SIRIM | 60 W | Level VI | 1.25 A | International | Positive Center | Desktop (Class I) | ITE (Commercial) | 48 V | Cord (Sold Separately) | -30 ░C | 70 °C | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 264 VAC | 90 VAC | 75 mW |
