333-058 Series
Manufacturer: EDAC Inc.
Beta
⌘K

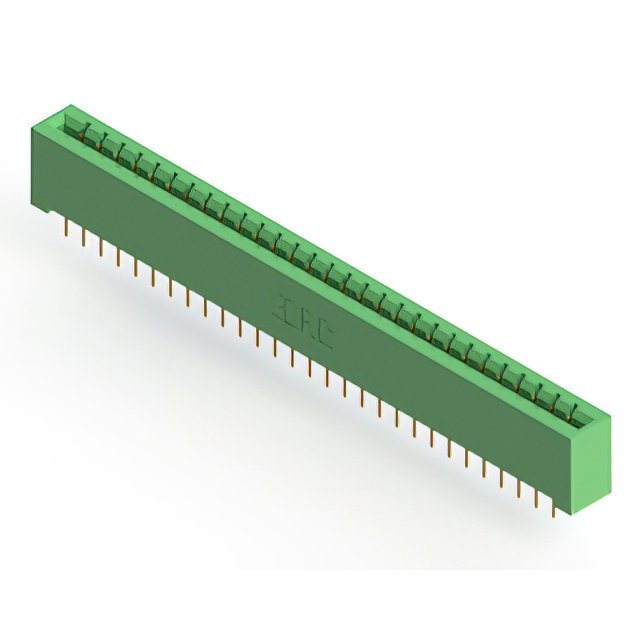

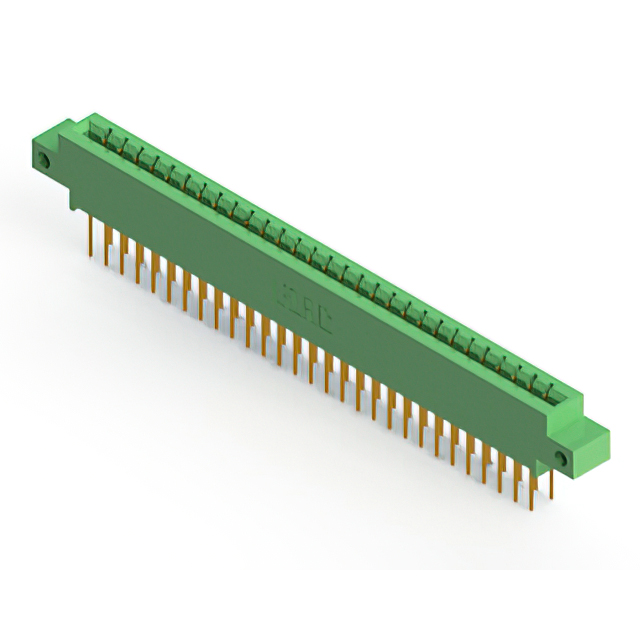

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 58 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows [custom] | Material - Insulation | Pitch | Pitch | Read Out | Number of Rows [custom] | Termination | Flange Feature | Card Thickness [Max] | Card Thickness [Min] | Number of Positions/Bay/Row | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Color | Contact Material | Mounting Type | Gender | Contact Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Dual | 2 | Wire Wrap | M3 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Gold | 0.25 Ám | 10 Áin | Green | Copper Alloy | Through Hole | Female | Cantilever | 58 | -40 C | 105 ░C | Non Specified - Dual Edge | |||
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Dual | 2 | Wire Wrap | Floating Bobbin Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Gold | 0.25 Ám | 10 Áin | Green | Copper Alloy | Through Hole | Female | Cantilever | 58 | -40 C | 105 ░C | Non Specified - Dual Edge | 0.116 " | 2.95 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Dual | 2 | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Gold | 0.25 Ám | 10 Áin | Green | Copper Alloy | Board Edge Straddle Mount | Female | Cantilever | 58 | -40 C | 105 ░C | Non Specified - Dual Edge | Card Extender | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Dual | 2 | Solder | Floating Bobbin Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Gold | 0.25 Ám | 10 Áin | Green | Copper Alloy | Board Edge Straddle Mount | Female | Cantilever | 58 | -40 C | 105 ░C | Non Specified - Dual Edge | 0.116 " | 2.95 mm | Card Extender |
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Dual | 2 | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Gold | 0.25 Ám | 10 Áin | Green | Copper Alloy | Right Angle Through Hole | Female | Cantilever | 58 | -40 C | 105 ░C | Non Specified - Dual Edge | 0.156 " | 3.96 mm | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 3.96 mm | 0.156 in | Dual | 2 | Solder Eyelet(s) | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Gold | 0.25 Ám | 10 Áin | Green | Copper Alloy | Through Hole | Female | Cantilever | 58 | -40 C | 105 ░C | Non Specified - Dual Edge | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Dual | 2 | Wire Wrap | Floating Bobbin Flush Mount | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Gold | 0.25 Ám | 10 Áin | Green | Copper Alloy | Through Hole | Female | Cantilever | 58 | -40 C | 105 ░C | Non Specified - Dual Edge | 0.116 " | 2.95 mm | |
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Dual | 2 | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Gold | 0.25 Ám | 10 Áin | Green | Copper Alloy | Through Hole | Female | Cantilever | 58 | -40 C | 105 ░C | Non Specified - Dual Edge | ||||
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Dual | 2 | Solder | 4-40 Threaded Insert Top Mount Opening | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Gold | 0.25 Ám | 10 Áin | Green | Copper Alloy | Board Edge Straddle Mount | Female | Cantilever | 58 | -40 C | 105 ░C | Non Specified - Dual Edge | Card Extender | ||
 EDAC Inc. | 2 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Dual | 2 | Wire Wrap | Flush Mount Top Opening Unthreaded | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 29 | Gold | 0.25 Ám | 10 Áin | Green | Copper Alloy | Right Angle Through Hole | Female | Cantilever | 58 | -40 C | 105 ░C | Non Specified - Dual Edge | 0.128 " | 3.25 mm |
