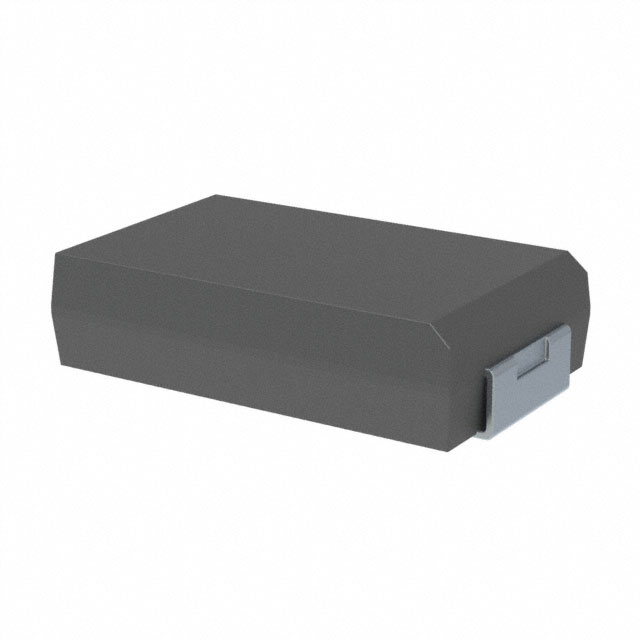

T520V Series
Manufacturer: KEMET
Beta
⌘K
TANTALUM POLYMER CAPACITOR, KO-CAP®, 330 ΜF, ± 20%, 2.5 V, V, 0.007 OHM, 2917 [7343 METRIC]
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Mounting Type | Features | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Capacitance | Manufacturer Size Code | Lifetime @ Temp. | ESR (Equivalent Series Resistance) | Tolerance | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | -55 C | 105 ░C | 2.5 V | Surface Mount | General Purpose | 1.9 mm | 0.075 " | 330 µF | V | 2000 Hrs | 7 mOhm | 20 % | Molded |
 KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | -55 C | 105 ░C | 20 V | Surface Mount | General Purpose | 1.9 mm | 0.075 " | 22 µF | V | 2000 Hrs | 40 mOhm | 20 % | Molded |
 KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | -55 C | 105 ░C | 10 V | Surface Mount | General Purpose | 1.9 mm | 0.075 " | 220 µF | V | 2000 Hrs | 25 mOhm | 20 % | Molded |
KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | -55 C | 105 ░C | 4 V | Surface Mount | General Purpose | 1.9 mm | 0.075 " | 220 µF | V | 2000 Hrs | 25 mOhm | 20 % | Molded |
KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | -55 C | 105 ░C | 4 V | Surface Mount | General Purpose | 1.9 mm | 0.075 " | 330 µF | V | 2000 Hrs | 9 mOhm | 20 % | Molded |
KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | -55 C | 105 ░C | 6.3 VDC | Surface Mount | General Purpose | 1.9 mm | 0.075 " | 330 µF | V | 2000 Hrs | 40 mOhm | 20 % | Molded |
KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | -55 C | 105 ░C | 16 V | Surface Mount | General Purpose | 1.9 mm | 0.075 " | 47 µF | V | 2000 Hrs | 70 mOhm | 20 % | Molded |
KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | -55 C | 105 ░C | 10 V | Surface Mount | General Purpose | 1.9 mm | 0.075 " | 150 µF | V | 2000 Hrs | 25 mOhm | 20 % | Molded |
KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | -55 C | 105 ░C | 10 V | Surface Mount | General Purpose | 1.9 mm | 0.075 " | 220 µF | V | 2000 Hrs | 40 mOhm | 20 % | Molded |
KEMET | 0.169 " | 7.3 mm | 0.287 " | 4.3 mm | 2917 (7343 Metric) | -55 C | 105 ░C | 10 V | Surface Mount | General Purpose | 1.9 mm | 0.075 " | 150 µF | V | 2000 Hrs | 18 mOhm | 20 % | Molded |
