073101 Series
Manufacturer: Molex
Beta
⌘K
CONN BNC RCPT STR 75 OHM PCB
| Part | Mounting Type | Connector Type | Center Contact Plating | Dielectric Material | Shield Termination | Fastening Type | Body Finish | Number of Ports | Body Material | Center Contact Material | Mounting Feature | Includes | Contact Termination | Features | Impedance | Mating Cycles | Connector Style | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Panel Mount Through Hole | Female Socket Jack | Gold | Polytetrafluoroethylene (PTFE) | Solder | Bayonet Lock | Nickel | 1 | Zinc Alloy | Phosphor Bronze | Bulkhead - Front Side Nut | 1 Connector 1 Lockwasher 1 Nut | Solder | Board Guide Isolated | 75 Ohms | 500 | BNC | Silver White | ||||
Molex | ||||||||||||||||||||||
Molex | ||||||||||||||||||||||

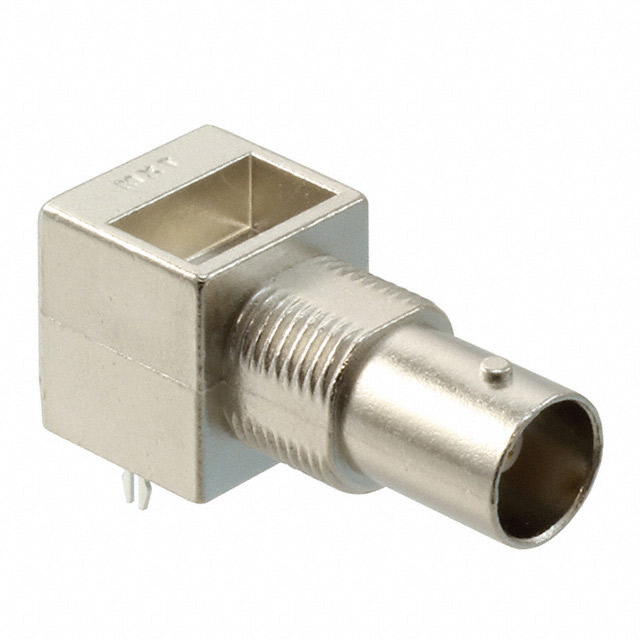

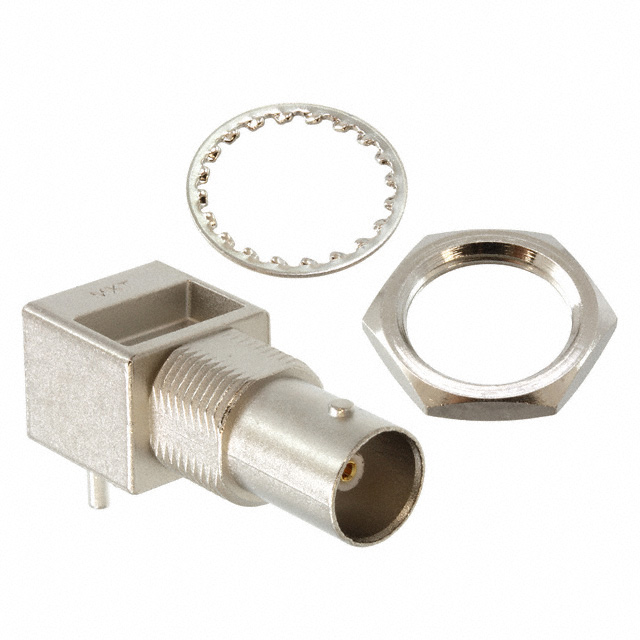

 Molex | Panel Mount Right Angle Through Hole | Female Socket Jack | Gold | Polypropylene (PP) | Solder | Bayonet Lock | Nickel | 1 | Zinc Alloy | Phosphor Bronze | Bulkhead - Front Side Nut | 1 Connector 1 Lockwasher 1 Nut | Solder | 75 Ohms | 500 | BNC | Silver | |||||
 Molex | Panel Mount Right Angle Through Hole | Female Socket Jack | Gold | Polypropylene (PP) | Solder | Bayonet Lock | Nickel | 1 | Zinc Alloy | Phosphor Bronze | Bulkhead - Front Side Nut | Solder | 75 Ohms | 500 | BNC | Silver | ||||||
Molex | Female Socket Jack | Gold | Polytetrafluoroethylene (PTFE) | Solder | Nickel | 1 | Brass | Phosphor Bronze | Flange | Solder | Extended Insulation | 50 Ohms | 500 | N Type | Silver | -55 °C | 125 °C | 11 GHz | 1000 VDC | |||
Molex | ||||||||||||||||||||||
 Molex | Panel Mount Right Angle Through Hole | Female Socket Jack | Gold | Polypropylene (PP) | Solder | Bayonet Lock | Nickel | 1 | Zinc Alloy | Phosphor Bronze | Bulkhead - Front Side Nut | Solder | 75 Ohms | 500 | BNC | Silver |
