OSTTS13 Series

Catalog

TERM BLOCK PLUG 13POS 90DEG 5MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Pitch [x]	Pitch [x]	Contact Material	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Color	Voltage - UL	Positions Per Level	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Wire Strip Length [Max]	Wire Strip Length [Min]	Housing Material	Mounting Type	Number of Levels	Material Flammability Rating	Torque - Screw	Torque - Screw	Wire Gauge or Range - mm˛	Wire Gauge or Range - mm²	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]
On Shore Technology Inc. OSTTS13715A	-30 ░C	105 ░C	13	5 mm	0.197 in	Brass	Screw	24 AWG	12 AWG	Plug Female Sockets	Green	300 V	13	0.34 mm²	2.5 mm²	7 mm	6 mm	Brass	Free Hanging (In-Line)	1	UL94 V-0	0.4 Nm	3.5 Lb-In
On Shore Technology Inc. OSTTS13315A	-30 ░C	105 ░C	13	3.81 mm	0.15 in	Brass	Screw	28 AWG	16 AWG	Plug Female Sockets	Green	300 V	13			7 mm	6 mm	Brass	Free Hanging (In-Line)	1		0.2 Nm	1.7 Lb-In	1.5 mm˛
On Shore Technology Inc. OSTTS13515D	-30 ░C	105 ░C	13	5.08 mm	0.2 in	Brass	Screw	24 AWG	12 AWG	Plug Female Sockets	Green	300 V	13	0.34 mm²	2.5 mm²	7 mm	6 mm	Brass	Free Hanging (In-Line)	1	UL94 V-0	0.4 Nm	3.5 Lb-In
On Shore Technology Inc. OSTTS13515A	-30 ░C	105 ░C	13	5.08 mm	0.2 in	Brass	Screw	24 AWG	12 AWG	Plug Female Sockets	Green	300 V	13	0.34 mm²	2.5 mm²	7 mm	6 mm	Brass	Free Hanging (In-Line)	1	UL94 V-0	0.4 Nm	3.5 Lb-In
On Shore Technology Inc. OSTTS13115A	-30 ░C	105 ░C	13	3.5 mm	0.138 in	Brass	Screw	28 AWG	16 AWG	Plug Female Sockets	Green	300 V	13			7 mm	6 mm	Brass	Free Hanging (In-Line)	1		0.2 Nm	1.7 Lb-In		1.5 mm²
On Shore Technology Inc. OSTTS13715D	-30 ░C	105 ░C	13	5 mm	0.197 in	Brass	Screw	24 AWG	12 AWG	Plug Female Sockets	Green	300 V	13	0.34 mm²	2.5 mm²	7 mm	6 mm	Brass	Free Hanging (In-Line)	1	UL94 V-0	0.4 Nm	3.5 Lb-In
On Shore Technology Inc. OSTTS13A15C	-30 ░C	105 ░C	13	7.5 mm	0.295 in	Brass	Screw	24 AWG	12 AWG	Plug Female Sockets		300 V	13			7 mm	6 mm	Brass	Free Hanging (In-Line)	1	UL94 V-0	0.4 Nm	3.5 Lb-In
On Shore Technology Inc. OSTTS13A15D	-30 ░C	105 ░C	13	7.5 mm	0.295 in	Brass	Screw	24 AWG	12 AWG	Plug Female Sockets		300 V	13			7 mm	6 mm	Brass	Free Hanging (In-Line)	1	UL94 V-0	0.4 Nm	3.5 Lb-In
On Shore Technology Inc. OSTTS13515B	-30 ░C	105 ░C	13	5.08 mm	0.2 in	Brass	Screw	24 AWG	12 AWG	Plug Female Sockets	Green	300 V	13			7 mm	6 mm	Brass	Free Hanging (In-Line)	1	UL94 V-0	0.4 Nm	3.5 Lb-In			0.34 mm˛	2.5 mm˛

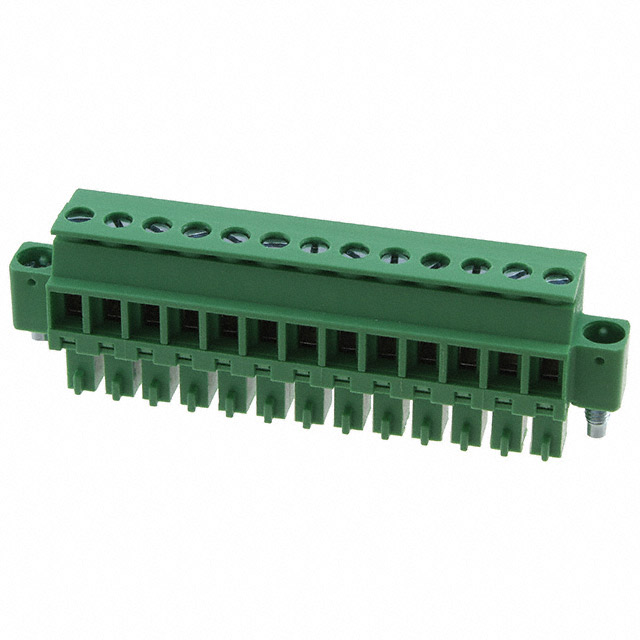

On Shore Technology Inc. OSTTS13315C	-30 ░C	105 ░C	13	3.81 mm	0.15 in	Brass	Screw	28 AWG	16 AWG	Plug Female Sockets	Green	300 V	13			7 mm	6 mm	Brass	Free Hanging (In-Line)	1	UL94 V-0	0.2 Nm	1.7 Lb-In	1.5 mm˛
