SSL-LX5093 Series

Manufacturer: Lumex Opto/Components Inc.

Catalog

Catalog

LED WHITE CLEAR T-1 3/4 T/H

...

Part	Height (Max) [Max] [z]	Supplier Device Package	Viewing Angle	Package / Case	Lens Style	Current - Test	Configuration	Lens Color	Lens Transparency	Mounting Type	Millicandela Rating	Voltage - Forward (Vf) (Typ)	Lens Size	Lens Size	Color	Wavelength - Peak

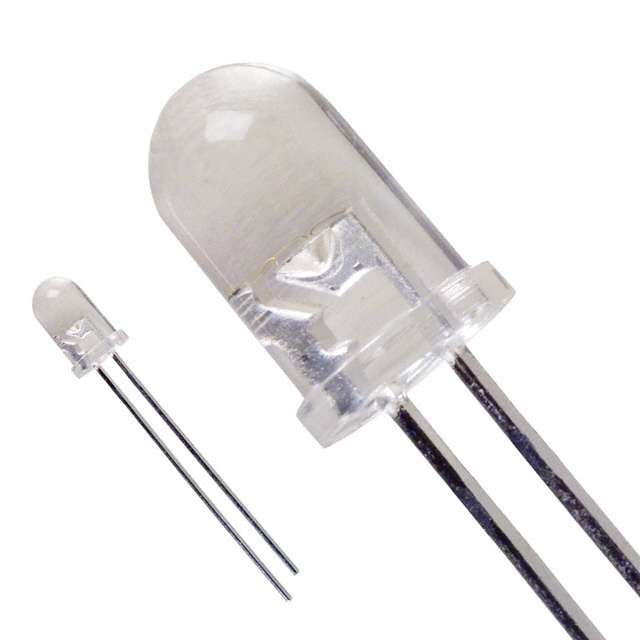

Lumex Opto/Components Inc. SSL-LX5093UWC/G	8.6 mm	T-1 3/4	20 °	Radial	Round with Domed Top	20 mA	Standard	Colorless	Clear	Through Hole	11000 mcd	3.5 V	5 mm	T-1 3/4	White

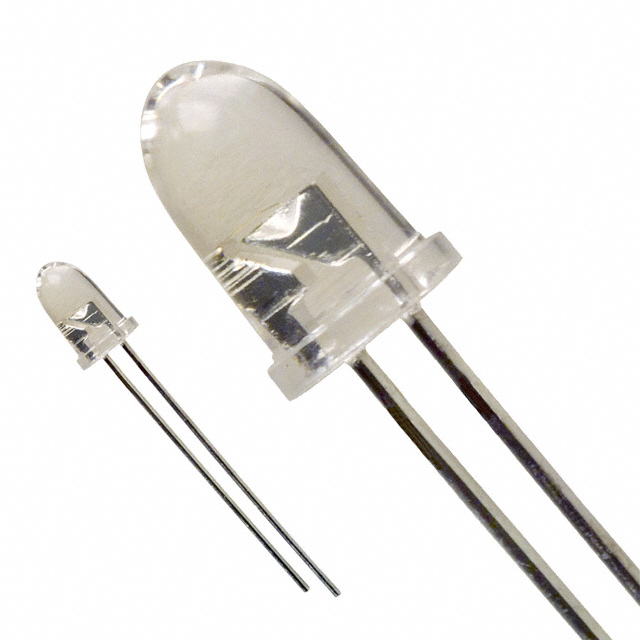

Lumex Opto/Components Inc. SSL-LX5093XYC	8.6 mm	T-1 3/4	20 °	Radial	Round with Domed Top	20 mA	Standard	Colorless	Clear	Through Hole	1300 mcd	2.1 V	5 mm	T-1 3/4	Yellow	590 nm
Lumex Opto/Components Inc. SSL-LX5093SID	8.6 mm	T-1 3/4	60 °	Radial	Round with Domed Top	20 mA	Standard	Red	Diffused	Through Hole	700 mcd	2 V	5 mm	T-1 3/4	Red	636 nm
Lumex Opto/Components Inc. SSL-LX5093UEGC	8.6 mm	T-1 3/4	20 °	Radial	Round with Domed Top	20 mA	Standard	Colorless	Clear	Through Hole	12000 mcd	3.2 V	5 mm	T-1 3/4	Green	500 nm

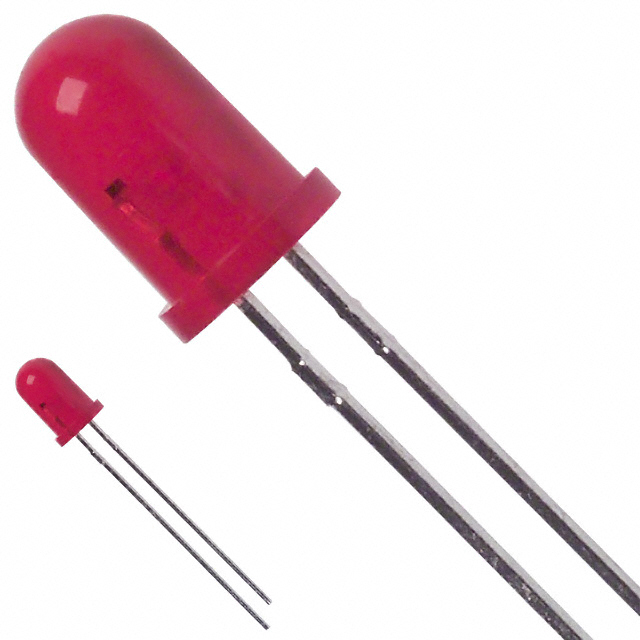

Lumex Opto/Components Inc. SSL-LX5093HD	8.6 mm	T-1 3/4	30 °	Radial	Round with Domed Top	20 mA	Standard	Red	Diffused	Through Hole	6 mcd	2.25 V	5 mm	T-1 3/4	Red	700 nm

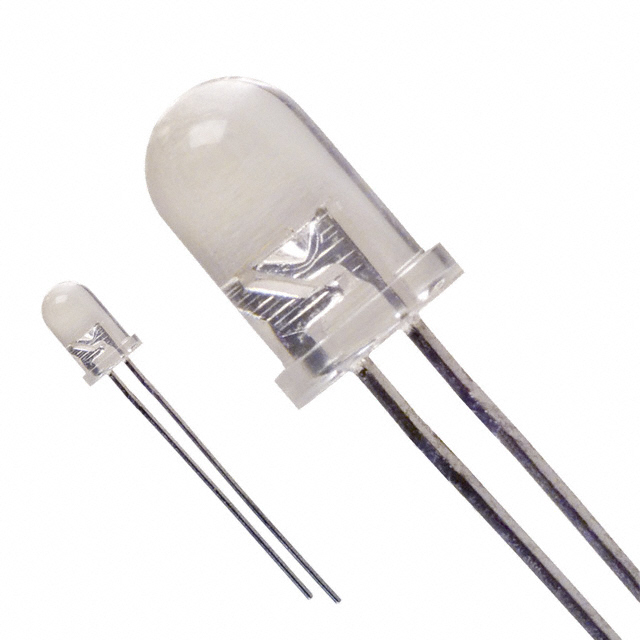

Lumex Opto/Components Inc. SSL-LX5093SRC/DW	8.6 mm	T-1 3/4	30 °	Radial	Round with Domed Top	20 mA	Standard	Colorless	Clear	Through Hole	1800 mcd	1.7 V	5 mm	T-1 3/4	Red	660 nm

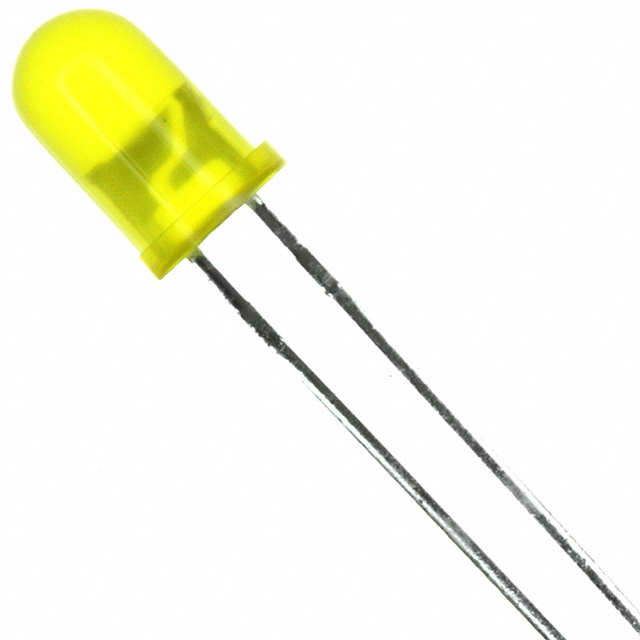

Lumex Opto/Components Inc. SSL-LX5093SYD	8.6 mm	T-1 3/4	60 °	Radial	Round with Domed Top	20 mA	Standard	Yellow	Diffused	Through Hole	300 mcd	2.1 V	5 mm	T-1 3/4	Yellow	590 nm
Lumex Opto/Components Inc. SSL-LX5093LIT	8.6 mm	T-1 3/4	30 °	Radial	Round with Domed Top	20 mA	Standard	Red	Clear	Through Hole	200 mcd	2 V	5 mm	T-1 3/4	Red	635 nm

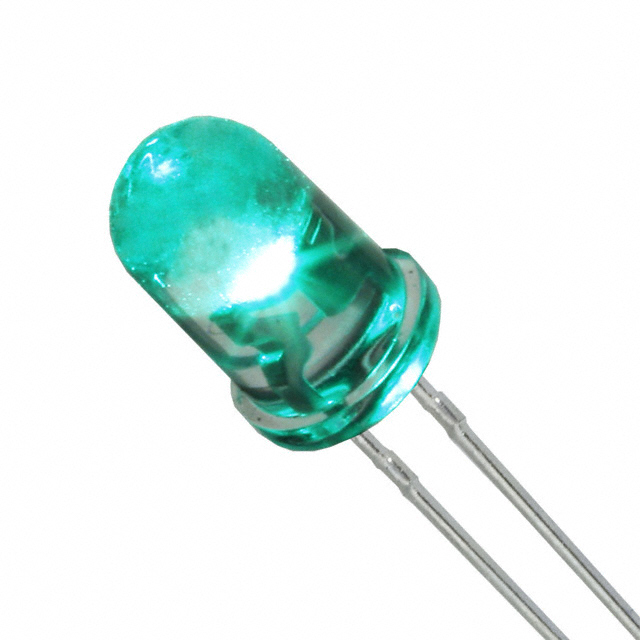

Lumex Opto/Components Inc. SSL-LX5093TC	8.6 mm	T-1 3/4	20 °	Radial	Round with Domed Top	20 mA	Standard	Colorless	Clear	Through Hole	2200 mcd	3.2 V	5 mm	T-1 3/4	Turquoise

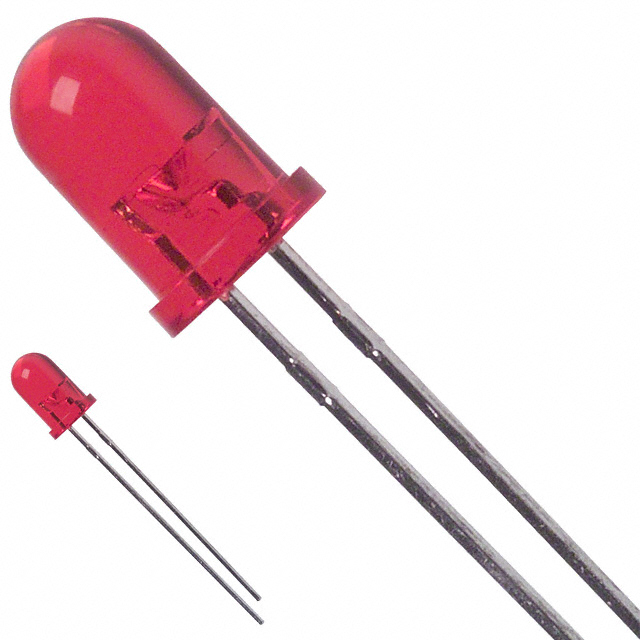

Lumex Opto/Components Inc. SSL-LX5093HT	8.6 mm	T-1 3/4	30 °	Radial	Round with Domed Top	20 mA	Standard	Red	Clear	Through Hole	25 mcd	2 V	5 mm	T-1 3/4	Red	700 nm
