1565357 Series

Catalog

CONN RCPT 80POS SMD GOLD

Part	Mated Stacking Heights [z]	Contact Finish	Mounting Type	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Features	Number of Rows	Number of Positions	Connector Type

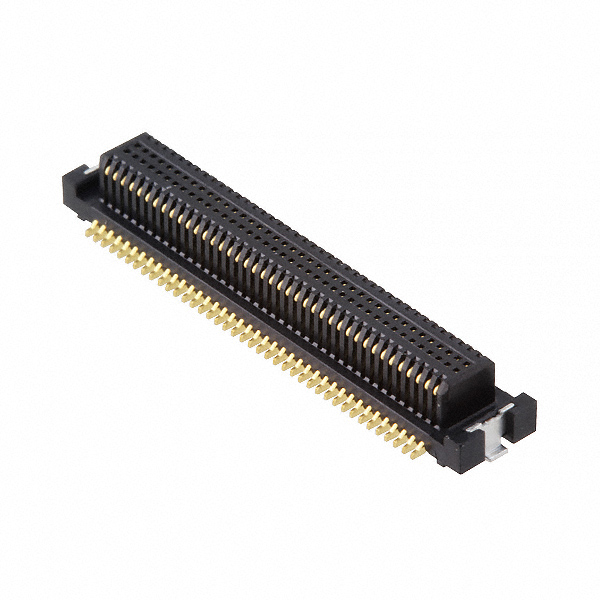

TE Connectivity Raychem Cable Protection 1565357-3	4 mm 4.5 mm 5.5 mm 6 mm	Gold	Surface Mount	3.2 mm	0.126 in	0.5 mm	0.02 in	Solder Retention	2	80	Center Strip Contacts Receptacle
TE Connectivity Raychem Cable Protection 1565357-5	4 mm 4.5 mm 5.5 mm 6 mm	Gold	Surface Mount	3.2 mm	0.126 in	0.5 mm	0.02 in	Solder Retention	2	60	Center Strip Contacts Receptacle
