NREC040 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

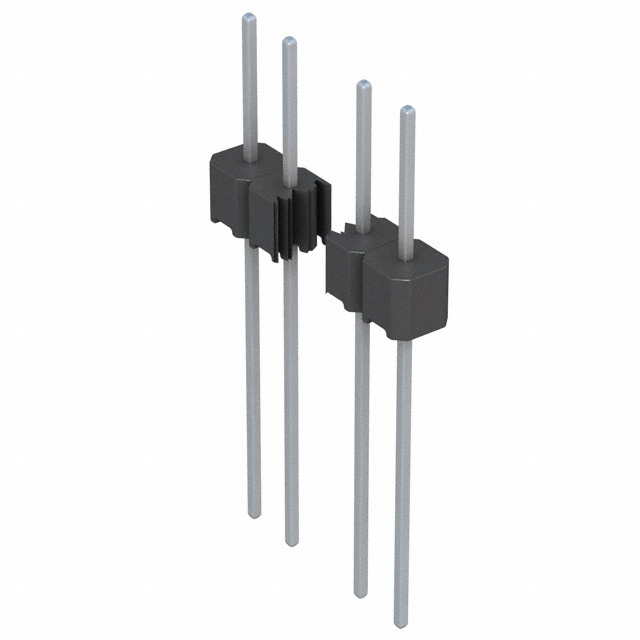

CONN HEADER VERT 40POS 2.54MM
| Part | Contact Material | Shrouding | Number of Rows | Termination | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Type | Current Rating (Amps) | Style | Overall Contact Length | Overall Contact Length | Contact Length - Mating | Contact Length - Mating | Number of Positions | Insulation Material | Material Flammability Rating | Mounting Type | Contact Shape | Number of Positions Loaded | Contact Finish - Post | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Brass | Unshrouded | 1 | Solder | 0.1 " | 2.54 mm | Black | Male Pin | 3 A | Board to Board Cable | 0.848 in | 21.55 mm | 0.23 in | 5.84 mm | 40 | Nylon 6T Polyamide (PA6T) | UL94 V-0 | Through Hole | Square | All | Tin | 0.52 in | 13.21 mm | 0.098 " | 2.5 mm | -40 C | 105 ░C | Header Breakaway | Push-Pull |
