200r Series
Manufacturer: E-Switch
Beta
⌘K

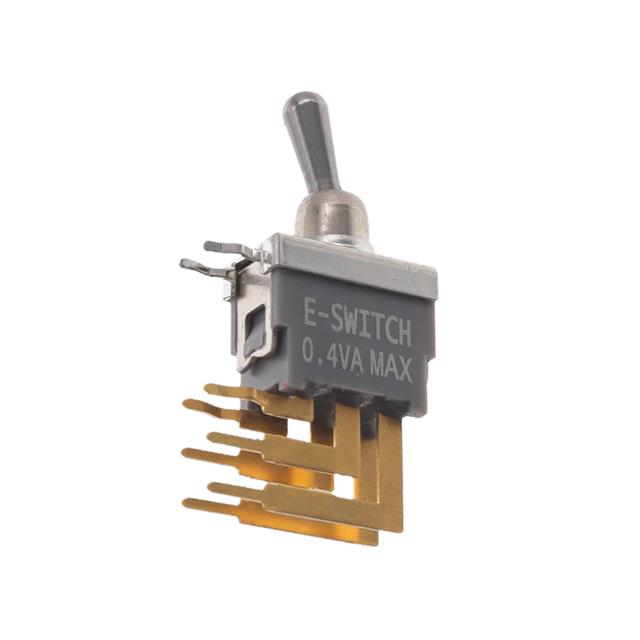

SWITCH: TOGGLE; POS: 2; DPDT; ON-ON; LEADS: FOR PCB,ANGLED; 200R
| Part | Actuator Length | Switch Function | Operating Temperature (Max) | Operating Temperature (Min) | Illumination | Ingress Protection Description | Ingress Protection IP Rating | Voltage Rating - DC | Circuit | Actuator Type | Termination Style | Bushing Thread | Current Rating | Mounting Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 6 mm | On-On | 85 °C | -30 °C | Non-Illuminated | Dust Tight Waterproof | IP67 | 48 V | DPDT | Standard Round | PC Pin | Unthreaded | 0.4 VA | Right Angle Through Hole Vertical | 48 V |
