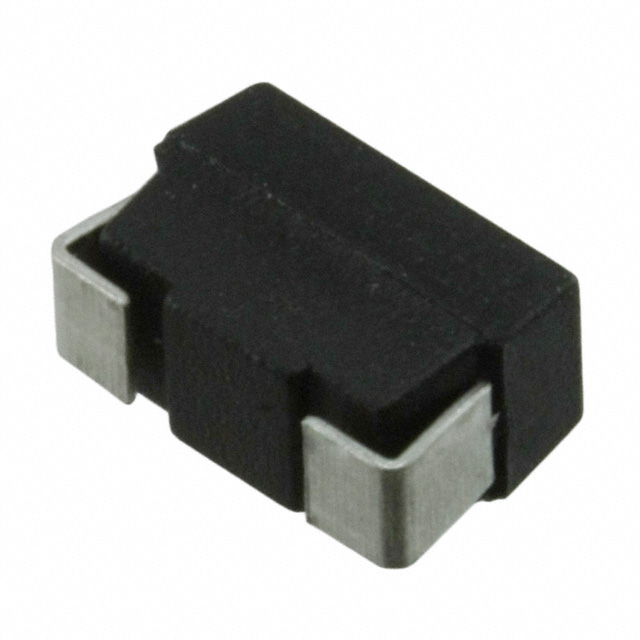

PWR2010 Series

Catalog

SURFACE MOUNT WIREWOUND RESISTOR, PWR SERIES, 0.5 OHM, 500 MW, - 5%

Part	Resistance	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Supplier Device Package	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Composition	Tolerance	Number of Terminations [custom]	Features	Power (Watts)	Power (Watts)
Bourns Inc. PWR2010WR500JE	500 mOhms	2010 J-Lead	3.76 mm	0.148 in	0.1 in	5.08 mm	2.54 mm	0.2 in	2010	90 ppm/°C	155 C	-55 C	Wirewound	5 %	2	Current Sense Pulse Withstanding	0.5 W	0.5 W
Bourns Inc. PWR2010W1800JE	180 Ohms	2010 J-Lead	3.76 mm	0.148 in	0.1 in	5.08 mm	2.54 mm	0.2 in	2010	20 ppm/°C	155 C	-55 C	Wirewound	5 %	2	Current Sense Pulse Withstanding	0.5 W	0.5 W
Bourns Inc. PWR2010W47R0JE	47 Ohms	2010 J-Lead	3.76 mm	0.148 in	0.1 in	5.08 mm	2.54 mm	0.2 in	2010	20 ppm/°C	155 C	-55 C	Wirewound	5 %	2	Current Sense Pulse Withstanding	0.5 W	0.5 W
Bourns Inc. PWR2010WR500FE	500 mOhms	2010 J-Lead	3.76 mm	0.148 in	0.1 in	5.08 mm	2.54 mm	0.2 in	2010	90 ppm/°C	155 C	-55 C	Wirewound	1 %	2	Current Sense Pulse Withstanding	0.5 W	0.5 W
Bourns Inc. PWR2010WR100JE	0.1 Ohms	2010 J-Lead	3.76 mm	0.148 in	0.1 in	5.08 mm	2.54 mm	0.2 in	2010	90 ppm/°C	155 C	-55 C	Wirewound	5 %	2	Current Sense Pulse Withstanding	0.5 W	0.5 W
Bourns Inc. PWR2010W24R0JE	24 Ohms	2010 J-Lead	3.76 mm	0.148 in	0.1 in	5.08 mm	2.54 mm	0.2 in	2010	20 ppm/°C	155 C	-55 C	Wirewound	5 %	2	Current Sense Pulse Withstanding	0.5 W	0.5 W
Bourns Inc. PWR2010W7R50JE	7.5 Ohms	2010 J-Lead	3.76 mm	0.148 in	0.1 in	5.08 mm	2.54 mm	0.2 in	2010	50 ppm/░C	155 C	-55 C	Wirewound	5 %	2	Current Sense Pulse Withstanding	0.5 W	0.5 W
Bourns Inc. PWR2010W1R00JE	1 Ohms	2010 J-Lead	3.76 mm	0.148 in	0.1 in	5.08 mm	2.54 mm	0.2 in	2010	50 ppm/░C	155 C	-55 C	Wirewound	5 %	2	Current Sense Pulse Withstanding	0.5 W	0.5 W
Bourns Inc. PWR2010W15R0JE	15 Ohms	2010 J-Lead	3.76 mm	0.148 in	0.1 in	5.08 mm	2.54 mm	0.2 in	2010	20 ppm/°C	155 C	-55 C	Wirewound	5 %	2	Current Sense Pulse Withstanding	0.5 W	0.5 W
Bourns Inc. PWR2010W5R00JE	5 Ohms	2010 J-Lead	3.76 mm	0.148 in	0.1 in	5.08 mm	2.54 mm	0.2 in	2010	50 ppm/░C	155 C	-55 C	Wirewound	5 %	2	Current Sense Pulse Withstanding	0.5 W	0.5 W
