226990 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

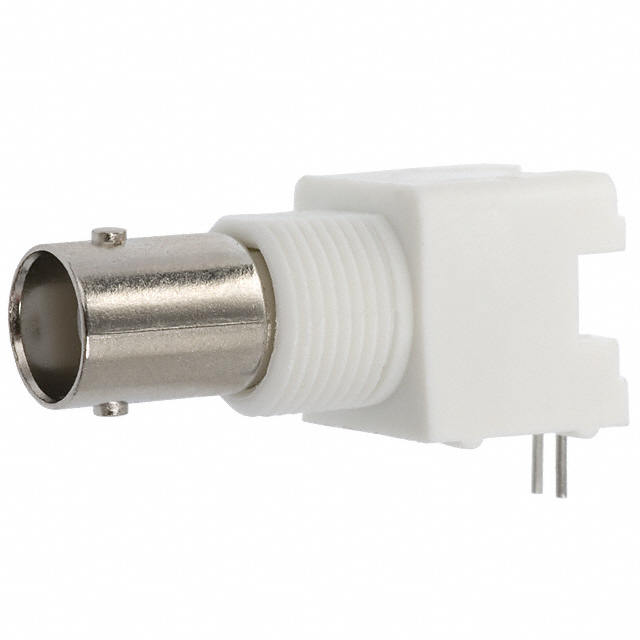

CONN BNC JACK R/A 50 OHM PCB
| Part | Mating Cycles | Body Finish | Includes | Body Material | Voltage Rating | Center Contact Material | Connector Type | Fastening Type | Connector Style | Shield Termination | Contact Termination | Operating Temperature [Max] | Operating Temperature [Min] | Impedance | Center Contact Plating | Dielectric Material | Housing Color | Number of Ports | Features | Mounting Feature | Frequency - Max [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 500 | Nickel | 1 Connector 1 Lockwasher 1 Nut | Zinc | 500 V | Phosphor Bronze | Female Socket Jack | Bayonet Lock | BNC | Solder | Solder | 85 °C | -55 °C | 50 Ohms | Tin | Polymethylpentene (PMP) | Natural Silver | 1 | Isolated | Bulkhead - Front Side Nut | 4 GHz | Panel Mount Right Angle Through Hole |
TE Connectivity Raychem Cable Protection | 500 | Nickel | 1 Connector 1 Lockwasher 1 Nut | Zinc | 500 V | Phosphor Bronze | Female Socket Jack | Bayonet Lock | BNC | Solder | Solder | 85 °C | -55 °C | 50 Ohms | Tin | Polymethylpentene (PMP) | Natural Silver | 1 | Isolated | Bulkhead - Front Side Nut | 4 GHz | Panel Mount Right Angle Through Hole |
 TE Connectivity Raychem Cable Protection | 500 | Nickel | 1 Connector 1 Lockwasher 1 Nut | Zinc | 500 V | Phosphor Bronze | Female Socket Jack | Bayonet Lock | BNC | Solder | Solder | 85 °C | -55 °C | 50 Ohms | Gold | Polymethylpentene (PMP) | Black Silver | 1 | Isolated | Bulkhead - Front Side Nut | 4 GHz | Panel Mount Right Angle Through Hole |
