6248N Series
Manufacturer: ebm-papst Inc.
Beta
⌘K

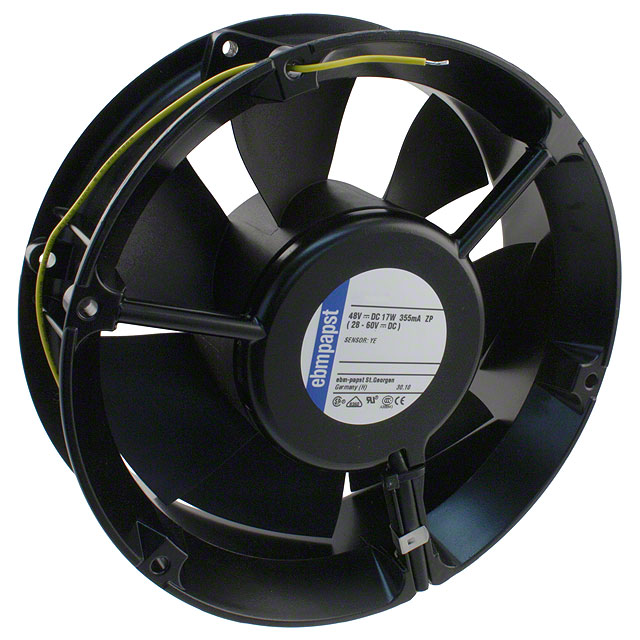

FAN AXL 171.5X50.8MM 48VDC TERM
| Part | Lifetime @ Temp. | Material - Frame | Material - Blade | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | RPM | Bearing Type | Weight | Weight | Termination | Width [y] | Static Pressure | Static Pressure | Fan Type | Air Flow | Air Flow | Operating Temperature | Power (Watts) | Size / Dimension [diameter] | Size / Dimension | Noise | Voltage - Rated | Approval Agency | Features | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 75000 Hrs | Metal | Plastic | 28 V | 60 V | 0.34 A | 3400 RPM | Ball | 1.7 lbs | 771.1 g | 2 | 50.8 mm | 58 Pa | 0.233 in H2O | Tubeaxial | 4.7 m³/min | 167.7 CFM | -10 ~ 72 14 ~ 162 | 16 W | 171.5 mm | Round | 55 dB(A) | 48 VDC | CCC CSA EAC UL VDE | |||
 ebm-papst Inc. | 75000 Hrs | Metal | Polyamide (PA) Nylon Fiberglass Reinforced | 28 V | 60 V | 3400 RPM | Ball | 1.8 lbs | 816.5 g | 3 Terminals | 50.8 mm | Tubeaxial | 6.76 m³/min | 241.3 CFM | -10 ~ 72 14 ~ 162 | 17 W | 171.5 mm | Round | 55 dB(A) | 48 VDC | Speed Sensor (Tach) | ||||||
ebm-papst Inc. | 86000 Hrs | Aluminum | Polyamide (PA) Nylon Fiberglass Reinforced | 28 V | 60 V | 1700 RPM | Ball | 0.187 lb | 84.82 g | 2 | 50.8 mm | Motorized Impellers | 3.38 mł/min | 120.7 CFM | 4 W | 171.5 mm | Round | 35 dB | 48 VDC | CE CSA UL VDE | 72 °C 162 °F | -20 ░C |
