740X043 Series

Catalog

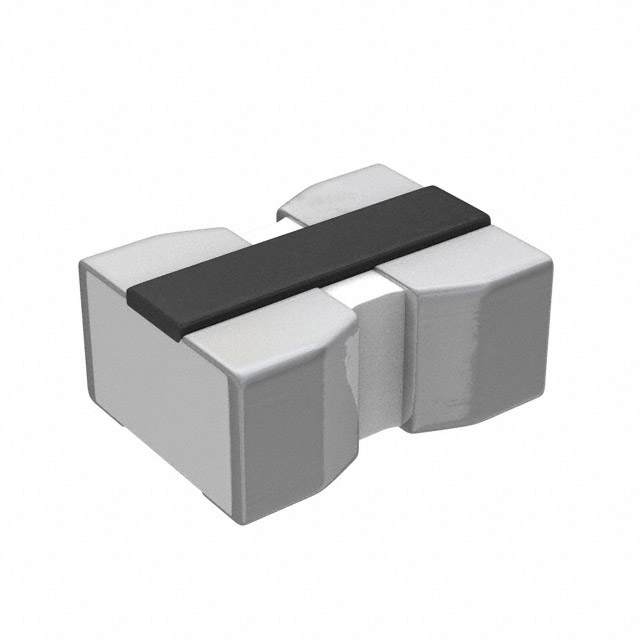

RES ARRAY 2 RES 150K OHM 0302

Part	Circuit Type	Applications	Power Per Element	Temperature Coefficient	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Grade	Qualification	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Number of Resistors	Resistance (Ohms)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Pins	Mounting Type	Tolerance	Resistance (Ohms)	Resistance (Ohms) [custom]
CTS Resistor Products 740X043154JP	Isolated	DDR SDRAM DRAM MDDR	31 mW	200 ppm/°C	0.018 "	0.45 mm	Automotive	AEC-Q200	0302 (0805 Metric) Convex Long Side Terminals	-55 C	125 °C	2	150k	0.6 mm	0.024 "	0.8 mm	0.031 in	4	Surface Mount	5 %
CTS Resistor Products 740X043274JP	Isolated	DDR SDRAM DRAM MDDR	31 mW	200 ppm/°C	0.018 "	0.45 mm	Automotive	AEC-Q200	0302 (0805 Metric) Convex Long Side Terminals	-55 C	125 °C	2		0.6 mm	0.024 "	0.8 mm	0.031 in	4	Surface Mount	5 %	270 kOhms
CTS Resistor Products 740X043330JP	Isolated	DDR SDRAM DRAM MDDR	31 mW	200 ppm/°C	0.018 "	0.45 mm	Automotive	AEC-Q200	0302 (0805 Metric) Convex Long Side Terminals	-55 C	125 °C	2		0.6 mm	0.024 "	0.8 mm	0.031 in	4	Surface Mount	5 %	33 Ohms

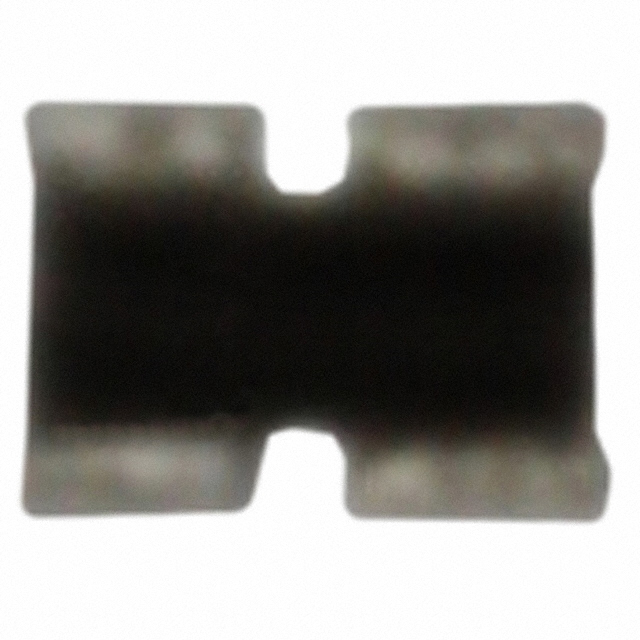

CTS Resistor Products 740X043101JP	Isolated	DDR SDRAM DRAM MDDR	31 mW	200 ppm/°C	0.018 "	0.45 mm	Automotive	AEC-Q200	0302 (0805 Metric) Convex Long Side Terminals	-55 C	125 °C	2		0.6 mm	0.024 "	0.8 mm	0.031 in	4	Surface Mount	5 %		100 Ohms
CTS Resistor Products 740X043561JP	Isolated	DDR SDRAM DRAM MDDR	31 mW	200 ppm/°C	0.018 "	0.45 mm	Automotive	AEC-Q200	0302 (0805 Metric) Convex Long Side Terminals	-55 C	125 °C	2		0.6 mm	0.024 "	0.8 mm	0.031 in	4	Surface Mount	5 %		560 Ohms
CTS Resistor Products 740X043104JP	Isolated	DDR SDRAM DRAM MDDR	31 mW	200 ppm/°C	0.018 "	0.45 mm	Automotive	AEC-Q200	0302 (0805 Metric) Convex Long Side Terminals	-55 C	125 °C	2	100k	0.6 mm	0.024 "	0.8 mm	0.031 in	4	Surface Mount	5 %

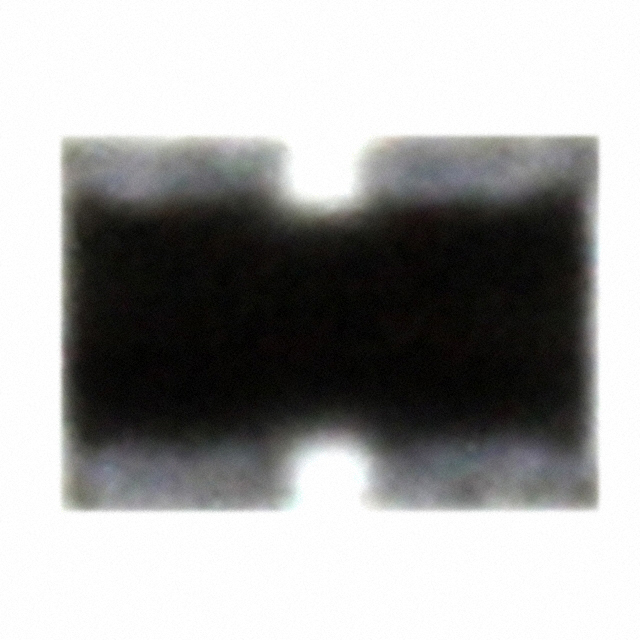

CTS Resistor Products 740X043103JP	Isolated	DDR SDRAM DRAM MDDR	31 mW	200 ppm/°C	0.018 "	0.45 mm	Automotive	AEC-Q200	0302 (0805 Metric) Convex Long Side Terminals	-55 C	125 °C	2	10k	0.6 mm	0.024 "	0.8 mm	0.031 in	4	Surface Mount	5 %
CTS Resistor Products 740X043560JP	Isolated	DDR SDRAM DRAM MDDR	31 mW	200 ppm/°C	0.018 "	0.45 mm	Automotive	AEC-Q200	0302 (0805 Metric) Convex Long Side Terminals	-55 C	125 °C	2		0.6 mm	0.024 "	0.8 mm	0.031 in	4	Surface Mount	5 %		56 Ohms
CTS Resistor Products 740X043224JP	Isolated	DDR SDRAM DRAM MDDR	31 mW	200 ppm/°C	0.018 "	0.45 mm	Automotive	AEC-Q200	0302 (0805 Metric) Convex Long Side Terminals	-55 C	125 °C	2		0.6 mm	0.024 "	0.8 mm	0.031 in	4	Surface Mount	5 %	220 kOhms
CTS Resistor Products 740X043151JP	Isolated	DDR SDRAM DRAM MDDR	31 mW	200 ppm/°C	0.018 "	0.45 mm	Automotive	AEC-Q200	0302 (0805 Metric) Convex Long Side Terminals	-55 C	125 °C	2		0.6 mm	0.024 "	0.8 mm	0.031 in	4	Surface Mount	5 %	150 Ohms
