109P0512 Series

Catalog

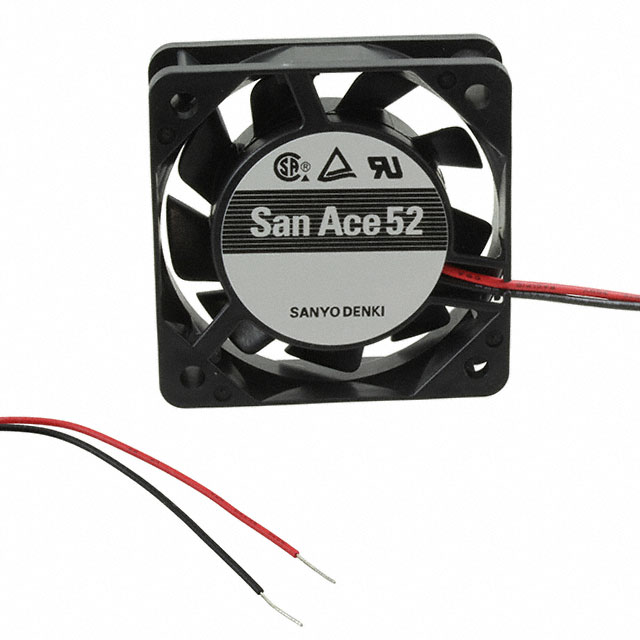

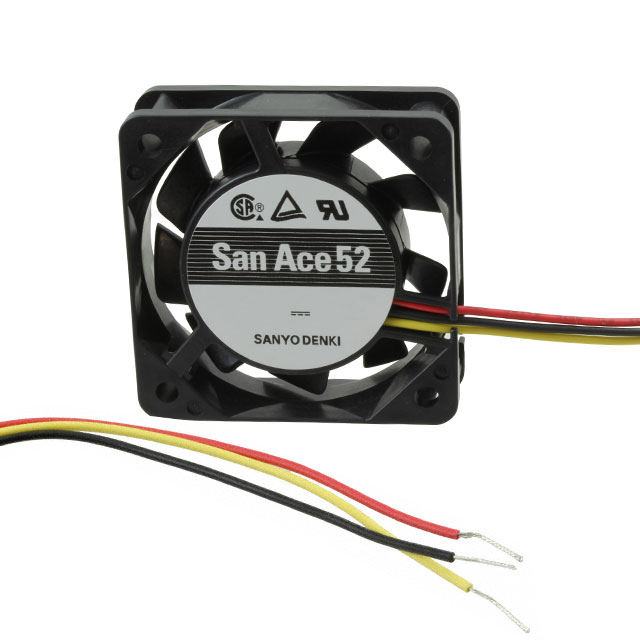

FAN AXIAL 52X15MM 12VDC WIRE

Part	Material - Frame	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	RPM	Operating Temperature [Min]	Operating Temperature [Max]	Static Pressure	Static Pressure	Features	Fan Type	Weight [custom]	Weight [custom]	Termination	Width [y]	Power (Watts)	Approval Agency	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Noise	Bearing Type	Voltage - Rated	Lifetime @ Temp.
Sanyo Denki America Inc. 109P0512H7D01	Plastic	13.8 VDC	7 V	9 CFM	0.252 m³/min	Plastic	100 mA	4600 RPM	-20 ░C	70 °C	0.128 in H2O	31.8 Pa	Locked Rotor Sensor	Tubeaxial	0.122 lb	55.34 g	3 Wire Leads	15 mm	1.2 W	CSA TUV UL	Square	52 mm	52 mm	27 dB(A)	Ball	12 VDC
Sanyo Denki America Inc. 109P0512H701	Plastic	13.8 VDC	7 V	9 CFM	0.252 m³/min	Plastic	100 mA	4600 RPM	-20 ░C	70 °C	0.128 in H2O	31.8 Pa	Locked Rotor Protection Speed Sensor (Tach)	Tubeaxial	0.122 lb	55.34 g	3 Wire Leads	15 mm	1.2 W	CSA TUV UL	Square	52 mm	52 mm	27 dB(A)	Ball	12 VDC
Sanyo Denki America Inc. 109P0512M7D01	Plastic	13.8 VDC	7 V	0.205 CFM	0.006 m³/min	Plastic	70 mA	3700 RPM	-20 ░C	70 °C	0.086 in H2O	21.5 Pa	Locked Rotor Sensor	Tubeaxial	0.122 lb	55.34 g	3 Wire Leads	15 mm	840 mW	CSA TUV UL	Square	52 mm	52 mm	22 dB(A)	Ball	12 VDC
Sanyo Denki America Inc. 109P0512A7D01	Plastic	13.8 VDC	10.2 VDC	13.2 CFM	0.37 m³/min	Plastic	0.21 A	6800 RPM	-20 ░C	70 °C	0.28 in H2O	69.7 Pa	Locked Rotor Sensor	Tubeaxial	0.122 lb	55.34 g	3 Wire Leads	15 mm	2.52 W	CSA TUV UL	Square	52 mm	52 mm	36 dB	Ball	12 VDC	40000 Hrs
