L77TWC21 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

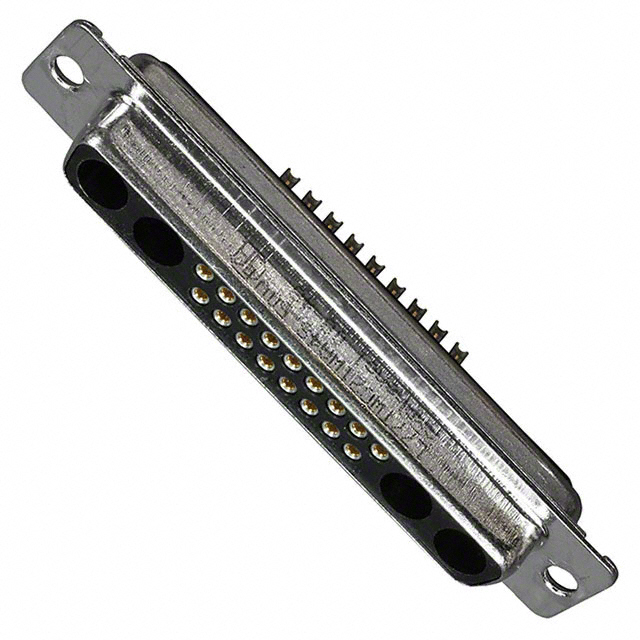

CONN D-SUB RCPT 21POS R/A SLDR
| Part | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Contact Material | Color | Flange Feature | Backset Spacing | Backset Spacing | Number of Positions | Contact Finish | Connector Style | Number of Rows [custom] | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Features | Mounting Type | Contact Type | Termination | Shell Size, Connector Layout | Number of Positions [x] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Thermoplastic | 155 C | -55 C | 300 VDC | Bronze | Black | Board Side (4-40) | 10.3 mm | 0.406 in | 21 | Gold | Combo D-Sub | 2 | 7.5 A | 16 µin | 0.41 µm | Receptacle Female Sockets | Board Lock Mounting Brackets | Panel Mount Right Angle Through Hole | Signal and Power | Solder | 4 (DC C) - 21WA4 | ||
Amphenol ICC (Commercial Products) | Thermoplastic | 155 C | -55 C | 300 VDC | Bronze | Black | 4-40 Mating Side Female Screwlock | 21 | Gold | Combo D-Sub | 2 | 7.5 A | 16 µin | 0.41 µm | Receptacle Female Sockets | Board Lock | Panel Mount Through Hole | Signal and Power | Solder | 4 (DC C) - 21WA4 | ||||
Amphenol ICC (Commercial Products) | Thermoplastic | 155 C | -55 C | 300 VDC | Bronze | Black | Board Side (4-40) | 10.3 mm | 0.406 in | 21 | Gold | Combo D-Sub | 2 | 7.5 A | 16 µin | 0.41 µm | Receptacle Female Sockets | Board Lock Mounting Brackets | Panel Mount Right Angle Through Hole | Signal and Power | Solder | 4 (DC C) - 21WA4 | ||
Amphenol ICC (Commercial Products) | Thermoplastic | 155 C | -55 C | 300 VDC | Bronze | Black | 4-40 Mating Side Female Screwlock | 8.1 mm | 0.319 in | 21 | Gold | Combo D-Sub | 2 | 7.5 A | 16 µin | 0.41 µm | Receptacle Female Sockets | Board Lock Mounting Brackets | Panel Mount Right Angle Through Hole | Signal and Power | Solder | 4 (DC C) - 21WA4 | ||
Amphenol ICC (Commercial Products) | Thermoplastic | 155 C | -55 C | 300 VDC | Bronze | Black | 4-40 Mating Side Female Screwlock | 8.1 mm | 0.319 in | Gold | Combo D-Sub | 2 | 16 µin | 0.41 µm | Receptacle Female Sockets | Board Lock Mounting Brackets | Panel Mount Right Angle Through Hole | Coax Signal | Solder | 4 (DC C) - 21WA4 | 17 | 4 | ||
Amphenol ICC (Commercial Products) | Thermoplastic | 155 C | -55 C | 300 VDC | Bronze | Black | Housing/Shell (Unthreaded) | 8.1 mm | 0.319 in | 21 | Gold | Combo D-Sub | 2 | 7.5 A | 16 µin | 0.41 µm | Receptacle Female Sockets | Panel Mount Right Angle Through Hole | Signal and Power | Solder | 4 (DC C) - 21WA4 | |||
 Amphenol ICC (Commercial Products) | Thermoplastic Glass Filled | 155 C | -55 C | 300 VDC | Bronze | Black | Housing/Shell (Unthreaded) | 21 | Gold | Combo D-Sub | 2 | 7.5 A | 16 µin | 0.41 µm | Receptacle Female Sockets | Panel Mount | 4 (DC C) - 21WA4 | |||||||
 Amphenol ICC (Commercial Products) | Thermoplastic | 155 C | -55 C | 300 VDC | Bronze | Black | Board Side (4-40) | 21 | Gold | Combo D-Sub | 2 | 7.5 A | 16 µin | 0.41 µm | Receptacle Female Sockets | Panel Mount Through Hole | Signal and Power | Solder | 4 (DC C) - 21WA4 | |||||
Amphenol ICC (Commercial Products) | Thermoplastic | 155 C | -55 C | 300 VDC | Bronze | Black | Housing/Shell (Unthreaded) | 21 | Gold | Combo D-Sub | 2 | 7.5 A | 16 µin | 0.41 µm | Receptacle Female Sockets | Panel Mount Through Hole | Solder | 4 (DC C) - 21WA4 |
