M2440 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

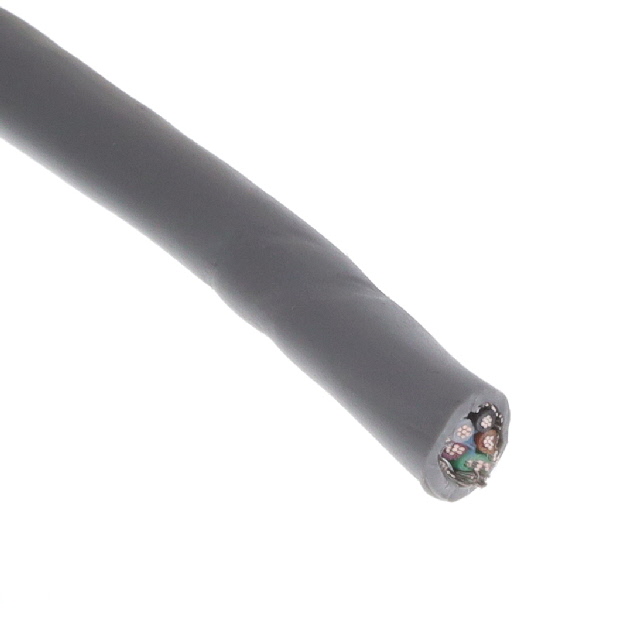

CABLE 5CON 24AWG SLATE SHLD 100'
| Part | Shield Coverage | Shield Material | Features | Number of Conductors | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Voltage | Ratings | Cable Type | Jacket (Insulation) Material | Length [x] | Length [x] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Drain Wire Rip Cord | 5 | 0.209 in | 5.31 mm | Slate | 24 AWG | 300 VDC | UL Style 2464 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 7 | 32 AWG | Braid Foil | Copper Tinned | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | Drain Wire Rip Cord | 5 | 0.209 in | 5.31 mm | Slate | 24 AWG | 300 VDC | UL Style 2464 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | 7 | 32 AWG | Braid Foil | Copper Tinned | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 0.813 mm | 0.032 in | 304.8 m | 1000 ft |
