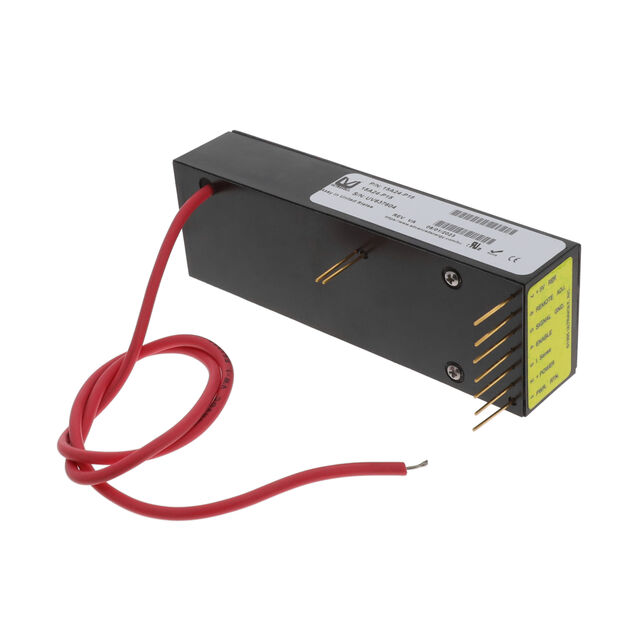

15A24 Series
Manufacturer: ULTRAVOLT / Advanced Energy
Beta
⌘K
A-SERIES DC TO HVDC CONVERTER, S
| Part | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Standard Number | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Package / Case | Approval Agency | Features | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Applications | Type | Control Features | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ULTRAVOLT / Advanced Energy | |||||||||||||||||||||||
 ULTRAVOLT / Advanced Energy | 1 mA | 30 V | 23 V | 60950-1 | 15000 V | 0 V | Module | CE cURus | Adjustable Output Remote On/Off | 15 W | 119.4 mm | 1 in | 25.4 mm | 1.52 " | 4.7 in | 38.7 mm | ITE (Commercial) | High Voltage - Non-Isolated Module | Active High Enable | 1 | -40 C | 65 °C | Through Hole |
ULTRAVOLT / Advanced Energy | 2 mA | 30 V | 23 V | 60950-1 | 15000 V | 0 V | Module | CE cUR cURus UR | Adjustable Output Remote On/Off | 30 Watts | 119.4 mm | 1 in | 25.4 mm | 1.52 " | 4.7 in | 38.7 mm | ITE (Commercial) | High Voltage - Non-Isolated Module | Active Low Enable | 1 | -40 C | 65 °C | Through Hole |
ULTRAVOLT / Advanced Energy | |||||||||||||||||||||||
ULTRAVOLT / Advanced Energy | 1 mA | 30 V | 23 V | 60950-1 | 15000 V | 0 V | Module | CE cUR cURus UR | Adjustable Output Remote On/Off | 15 W | 119.4 mm | 1 in | 25.4 mm | 1.52 " | 4.7 in | 38.7 mm | ITE (Commercial) | High Voltage - Non-Isolated Module | Active High Enable | 1 | -40 C | 65 °C | Through Hole |
ULTRAVOLT / Advanced Energy | 2 mA | 30 V | 23 V | 60950-1 | 15000 V | 0 V | Module | CE cUR cURus UR | Adjustable Output Remote On/Off | 30 Watts | 119.4 mm | 1 in | 25.4 mm | 1.52 " | 4.7 in | 38.7 mm | ITE (Commercial) | High Voltage - Non-Isolated Module | Active Low Enable | 1 | -40 C | 65 °C | Through Hole |
ULTRAVOLT / Advanced Energy | |||||||||||||||||||||||
ULTRAVOLT / Advanced Energy | 2 mA | 30 V | 23 V | 60950-1 | 15000 V | 0 V | Module | CE cUR cURus UR | Adjustable Output Remote On/Off | 30 Watts | 119.4 mm | 1 in | 25.4 mm | 1.52 " | 4.7 in | 38.7 mm | ITE (Commercial) | High Voltage - Non-Isolated Module | Active High Enable | 1 | -40 C | 65 °C | Through Hole |
ULTRAVOLT / Advanced Energy | 1 mA | 30 V | 23 V | 60950-1 | 15000 V | 0 V | Module | CE cUR cURus UR | Adjustable Output Remote On/Off | 15 W | 119.4 mm | 1 in | 25.4 mm | 1.52 " | 4.7 in | 38.7 mm | ITE (Commercial) | High Voltage - Non-Isolated Module | Active Low Enable | 1 | -40 C | 65 °C | Through Hole |
ULTRAVOLT / Advanced Energy |
