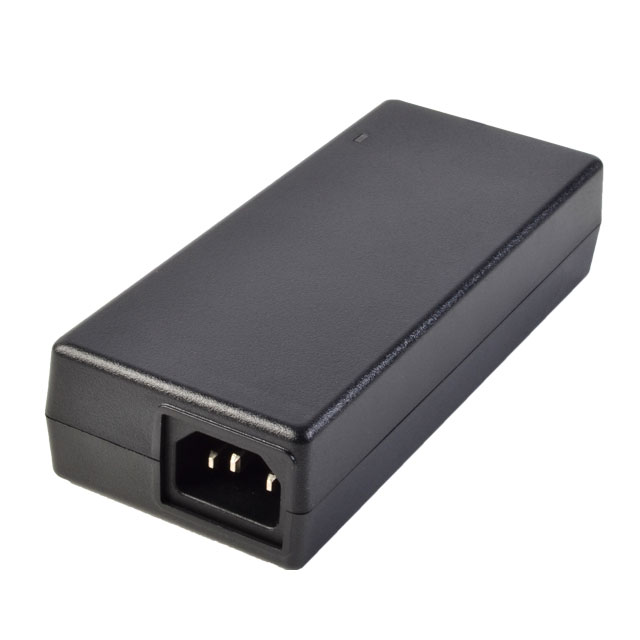

SDI90 Series

Manufacturer: CUI Inc.

Catalog

AC/DC DESKTOP ADAPTER 24V 90W

Part	Cord Length	Cord Length	Current - Output (Max) [Max]	Region Utilized	Power (Watts)	Operating Temperature [Max]	Approval Agency	Standard Number	Input Type	Applications	Form	Polarization	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Input Connector	Output Connector [diameter]	Output Connector	Output Connector [z]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	No Load Power Consumption	Output Connector [x]	Weight	Weight	Current - Output (Max)	Output Connector [custom]	Output Connector [custom]	Output Connector [custom]
CUI Inc. SDI90-24-UC-P6R	1.5 m	59 in	3.75 A	North America	90 W	40 °C	CB Scheme CSA EN FCC IEC PSE UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Cord	ITE (Commercial)	Desktop (Class I)	Positive Center	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	IEC 320-C14	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	Level VI	264 VAC	90 VAC	24 V	210 mW
CUI Inc. SDI90-15-U-P5	1.5 m	59 in	6 A	International	90 W	40 °C	CB Scheme CSA EN FCC IEC PSE UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	Positive Center	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	IEC 320-C14	2.1 mm 5.5 mm	Barrel Plug		Level VI	264 VAC	90 VAC	15 V	210 mW	9.5 mm
CUI Inc. SDI90-48-U-P5	1.5 m	59 in	1.88 A	International	90 W	40 °C	CB Scheme CSA EN FCC IEC PSE UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	Positive Center	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	IEC 320-C14	2.1 mm 5.5 mm	Barrel Plug		Level VI	264 VAC	90 VAC	48 V	210 mW	9.5 mm	1.1 lbs	499 g
CUI Inc. SDI90-18-U-P5	1.5 m	59 in		International	90 W	40 °C	CB Scheme CSA EN FCC IEC PSE UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	Positive Center	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	IEC 320-C14	2.1 mm 5.5 mm	Barrel Plug		Level VI	264 VAC	90 VAC	18 V	210 mW	9.5 mm			5 A
CUI Inc. SDI90-48-UC-P5	1.5 m	59 in	1.88 A	North America	90 W	40 °C	CB Scheme CSA EN FCC IEC PSE UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Cord	ITE (Commercial)	Desktop (Class I)	Positive Center	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	IEC 320-C14	2.1 mm 5.5 mm	Barrel Plug		Level VI	264 VAC	90 VAC	48 V	210 mW	9.5 mm	1.1 lbs	499 g
CUI Inc. SDI90-12-U-P5	1.5 m	59 in	7 A	International	84 W	40 °C	CB Scheme CSA EN FCC IEC PSE UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	Positive Center	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	IEC 320-C14	2.1 mm 5.5 mm	Barrel Plug		Level VI	264 VAC	90 VAC	12 V	210 mW	9.5 mm	1.1 lbs	499 g
CUI Inc. SDI90-24-U-P6	1.5 m	59 in	3.75 A	International	90 W	40 °C	CB Scheme CSA EN FCC IEC PSE UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	Positive Center	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	IEC 320-C14	2.5 mm 5.5 mm	Barrel Plug		Level VI	264 VAC	90 VAC	24 V	210 mW	9.5 mm	1.1 lbs	499 g
CUI Inc. SDI90-24-U-P6R	1.5 m	59 in	3.75 A	International	90 W	40 °C	CB Scheme CSA EN FCC IEC PSE UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	Positive Center	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	IEC 320-C14	2.5 mm 5.5 mm	Barrel Plug R/A	9.5 mm	Level VI	264 VAC	90 VAC	24 V	210 mW
CUI Inc. SDI90-19-U-P5	1.5 m	59 in		International	90 W	40 °C	CB Scheme CSA EN FCC IEC PSE UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	Positive Center	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	IEC 320-C14	2.1 mm 5.5 mm	Barrel Plug		Level VI	264 VAC	90 VAC	19 V	210 mW	9.5 mm	1.1 lbs	499 g
CUI Inc. SDI90-18-U-P5R	1.5 m	59 in		International	90 W	40 °C	CB Scheme CSA EN FCC IEC PSE UL	55024 55032 Class B 60950-1 61000-3-2 61000-3-3 62368-1 C22.2 No. 60950-1	Cord (Sold Separately)	ITE (Commercial)	Desktop (Class I)	Positive Center	2.52 in	1.42 "	5.94 "	64 mm	151 mm	36 mm	IEC 320-C14		Barrel Plug R/A		Level VI	264 VAC	90 VAC	18 V	210 mW				5 A	9.5 mm	5.5 mm	2.1 mm
