B72314S Series

Catalog

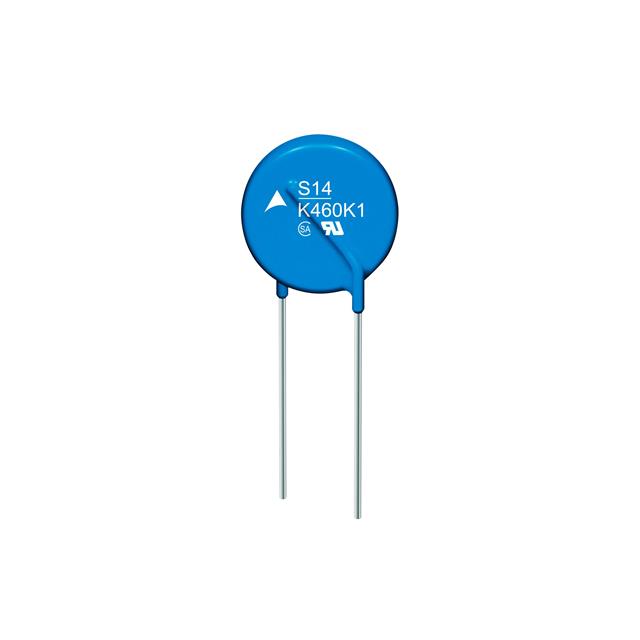

14MM, 460VAC, 10%, ADVANCED COMP

Part	Package / Case	Varistor Voltage (Min) [Min]	Current - Surge	Varistor Voltage (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Varistor Voltage (Typ)	Energy	Maximum DC Volts [Max]	Number of Circuits	Maximum AC Volts [Max]	Capacitance @ Frequency	Mounting Type	Varistor Voltage (Max)
EPCOS - TDK Electronics B72314S2461K101	Disc 14mm	675 V	5 kA	825 V	-40 °C	105 °C	750 V	150 J	615 V	1	460 V	260 pF	Through Hole
EPCOS - TDK Electronics B72314S2301K101	Disc 14mm	423 V	6000 A	517 V	-40 °C	105 °C	470 V	125 J	385 V	1	300 V	1 kHz 400 pF	Through Hole
EPCOS - TDK Electronics B72314S0321K101	Disc 14mm	459 V	4.5 kA	561 V	-40 °C	105 °C	510 V	80 J	420 V	1	320 V	1 kHz 370 pF	Through Hole
EPCOS - TDK Electronics B72314S2271K101	Disc 14mm	387 V	6000 A		-40 °C	105 °C	430 V	110 J	350 V	1	275 V	1 kHz 440 pF	Through Hole	473 V
EPCOS - TDK Electronics B72314S0271K101	Disc 14mm	387 V	4.5 kA		-40 °C	105 °C	430 V	71 J	350 V	1	275 V	1 kHz 440 pF	Through Hole	473 V
EPCOS - TDK Electronics B72314S0351K101	Disc 14mm	504 V	4.5 kA	616 V	-40 °C	105 °C	560 V	80 J	460 V	1	350 V	1 kHz 350 pF	Through Hole
EPCOS - TDK Electronics B72314S0301K101	Disc 14mm	423 V	4.5 kA	517 V	-40 °C	105 °C	470 V	76 J	385 V	1	300 V	1 kHz 400 pF	Through Hole
EPCOS - TDK Electronics B72314S2351K101	Disc 14mm	504 V	5 kA	616 V	-40 °C	105 °C	560 V		460 V	1	350 V	1 kHz 350 pF	Through Hole
