LNE-12 Series

Catalog

AC/DC LED POWER SUPPLY 156W SINGLE 7-PIN

Part	Weight	Weight	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Voltage - Isolation	Type	Power (Watts)	Dimming	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Topology	Current - Output (Max) [Max]	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Ratings

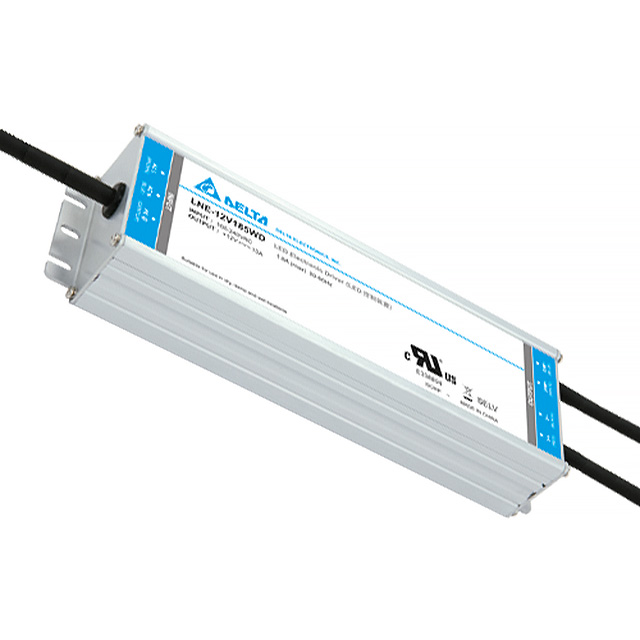

Delta Electronics LNE-12V185WDAA	1.1 kg	2.4 lbs	Chassis Mount	305 VAC	90 VAC	91.5 %	3.85 kV	Constant Current Voltage	185 W	Analog PWM	1	204 mm	1.53 in	68 mm	2.68 in	38.8 mm	8.03 in	OCP OTP OVP SCP	UL	70 °C	-40 C	50581 60950-1 8750	AC DC Converter	13 A	Wire Leads	12 V	6 V	IP67

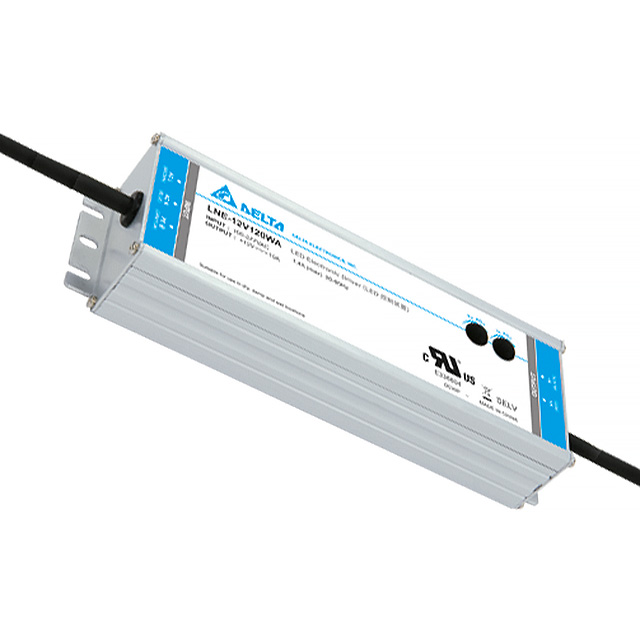

Delta Electronics LNE-12V120WAAA	997.9 g	2.2 lbs	Chassis Mount	305 VAC	90 VAC	92 %	3.85 kV	Constant Current Voltage	120 W		1	196 mm	1.53 in	68 mm	2.68 in	38.8 mm	7.72 in	OCP OTP OVP SCP	UL	70 °C	-40 C	50581 60950-1 8750	AC DC Converter	10 A	Wire Leads	12 V	6 V	IP65

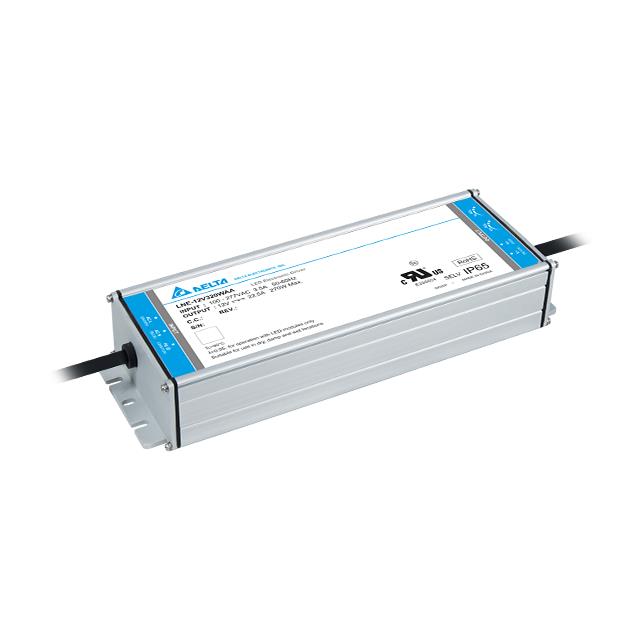

Delta Electronics LNE-12V320WDAA			Chassis Mount	305 VAC	90 VAC	91 %	3.85 kV	Constant Current Voltage	320 W	Analog PWM	1	252 mm	1.72 in	89.9 mm	3.54 in	43.7 mm	9.92 "	OCP OTP OVP SCP	UL	70 °C	-40 C	50581 60950-1 8750	AC DC Converter	22.5 A	Wire Leads	12 V	6 V	IP67
