CDC7005 Series

Catalog

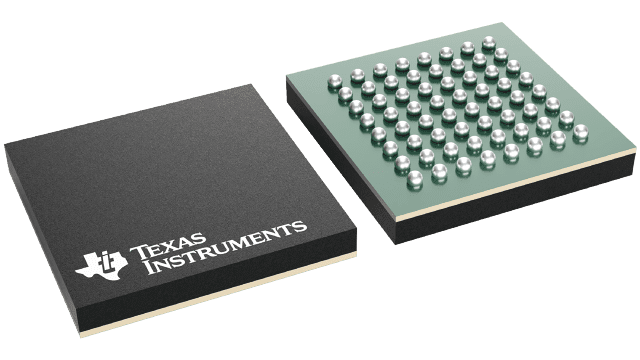

IC CLOCK SYNCHRONIZER 64BGA

Part	Frequency - Max [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Input	Ratio - Input:Output	Output	Supplier Device Package	Number of Circuits	Function	Supplied Contents	Utilized IC / Part	Type
Texas Instruments CDC7005GVAT	800 MHz	3.6 V	3 V	85 °C	-40 °C	Surface Mount	64-BGA	LVCMOS LVPECL	2:5	LVPECL	64-BGA	1
Texas Instruments CDC7005ZVAT	800 MHz	3.6 V	3 V	85 °C	-40 °C	Surface Mount	64-LFBGA	LVCMOS LVPECL	2:5	LVPECL	64-BGA (8x8)	1
Texas Instruments CDC7005ZVAR	800 MHz	3.6 V	3 V	85 °C	-40 °C	Surface Mount	64-LFBGA	LVCMOS LVPECL	2:5	LVPECL	64-BGA (8x8)	1
Texas Instruments CDC7005RGZR	800 MHz	3.6 V	3 V	85 °C	-40 °C	Surface Mount	48-VFQFN Exposed Pad	LVCMOS LVPECL	2:5	LVPECL	48-VQFN (7x7)	1
Texas Instruments CDC7005ZVA	800 MHz	3.6 V	3 V	85 °C	-40 °C	Surface Mount	64-LFBGA	LVCMOS LVPECL	2:5	LVPECL	64-BGA (8x8)	1
Texas Instruments CDC7005RGZRG4	800 MHz	3.6 V	3 V	85 °C	-40 °C	Surface Mount	48-VFQFN Exposed Pad	LVCMOS LVPECL	2:5	LVPECL	48-VQFN (7x7)	1

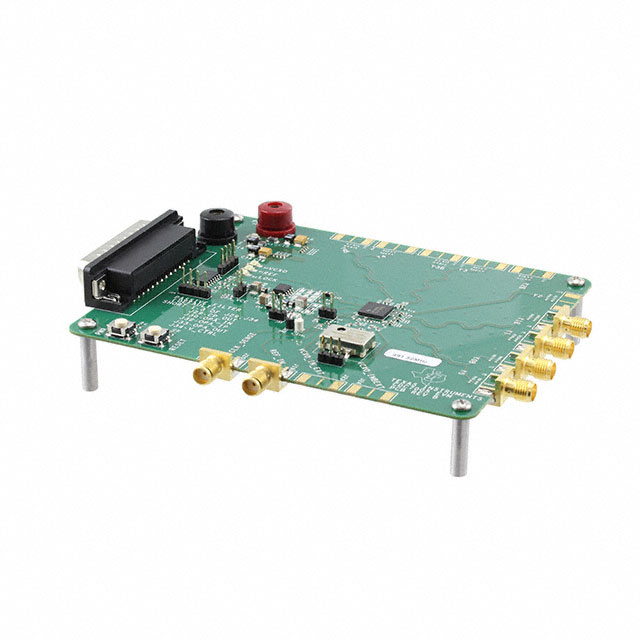

Texas Instruments CDC7005-EVM													Clock Synchronizer	Board(s)	CDC7005	Timing
Texas Instruments CDC7005RGZT	800 MHz	3.6 V	3 V	85 °C	-40 °C	Surface Mount	48-VFQFN Exposed Pad	LVCMOS LVPECL	2:5	LVPECL	48-VQFN (7x7)	1
