NCL30486B Series

Smart-Dimmable CC/CV PSR Controller

Catalog

Smart-Dimmable CC/CV PSR Controller

Part	Mounting Type	Voltage - Supply (Max) [Max]	Number of Outputs	Topology	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Type	Supplier Device Package	Voltage - Supply (Min) [Min]	Package / Case	Package / Case	Package / Case [x]	Package / Case [y]	Applications	Current - Output / Channel	Voltage - Supply (Max)	Voltage - Output [Min]	Voltage - Output [Max]

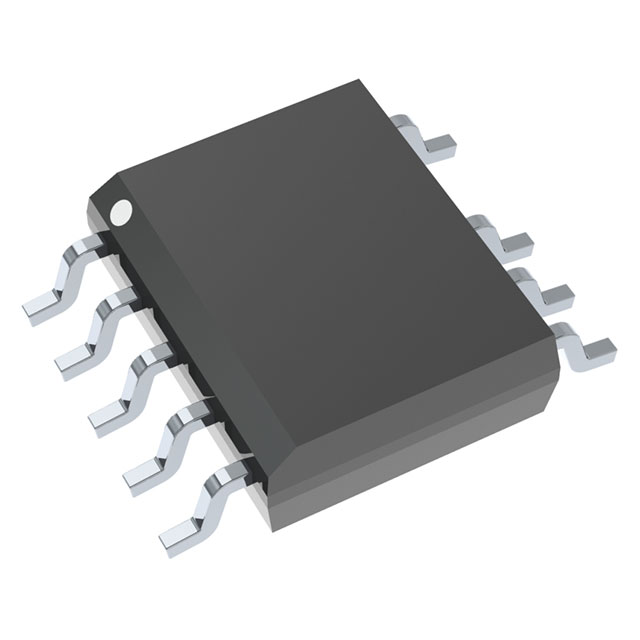

ON Semiconductor NCL30486A1DR2G	Surface Mount	26.5 V	1	Flyback	Analog PWM	-40 °C	125 ¯C	AC DC Offline Switcher	9-SOIC	10.2 V	10-SOP	9 PC Pad	0.154 in	3.9 mm	Lighting
ON Semiconductor NCL30486A2DR2G	Surface Mount	26.5 V	1	Flyback	Analog PWM	-40 °C	125 ¯C	DC DC Controller	9-SOIC	10.2 V	10-SOP	9 PC Pad	0.154 in	3.9 mm	Lighting
ON Semiconductor NCL30486B2DR2G	Surface Mount		1	Flyback	Analog PWM	-40 °C	125 ¯C	DC DC Controller	9-SOIC	10.2 V	10-SOP	9 PC Pad	0.154 in	3.9 mm	General Purpose	500 mA	30 V	8 V	14 V
ON Semiconductor NCL30486B1DR2G	Surface Mount		1	Flyback	Analog PWM	-40 °C	125 ¯C	DC DC Controller	9-SOIC	10.2 V	10-SOP	9 PC Pad	0.154 in	3.9 mm	General Purpose	500 mA	30 V	8 V	14 V

Catalog

Smart-Dimmable CC/CV PSR Controller

Key Features

• Integrated 700 V HV Startup

• Precise current regulation accuracy (<±2% typical)

• Precise voltage regulation accuracy (<±1% typical)

• PF(>0.95)/THD(<10%)

• Quasi-resonant control

• Standby Mode

• Optional PSR/SSR mode

• ADIM: Analog output current with DC signal, PWM output current with PWM signa

• PDIM: Analog output current with PWM signal

• DIM CV Mode

• Optional Min. Dim. Clamping(0/1/5/8%)

• Protections - BO/ Line OVP/ VCC OVP - LED Open/ short protection - Winding / Diode short protection - TSD

Description

The NCL30486B is a high PF Single stage Constant Current and Constant Voltage PSR PWM controller for Flyback/ Buck-Boost/ Sepic/ Boost. This controller operates in a QR mode to provide high efficiency. Thanks to a novel control method, the device is able to tightly regulate a constant LED current from the primary side. This device is providing very deep analog dimming output current with two dedicated dimming control input pin – ADIM and PDIM.
