WR9QB1000 Series

Catalog

AC/DC WALL MNT ADAPTER 5.95V 6W

Part	No Load Power Consumption	Voltage - Output	Cord Length	Cord Length	Current - Output (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Approval Agency	Form	Efficiency	Input Connector	Polarization	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Output Connector [diameter]	Output Connector	Output Connector [x]	Standard Number	Input Type	Region Utilized	Size / Dimension [z]	Size / Dimension [y]

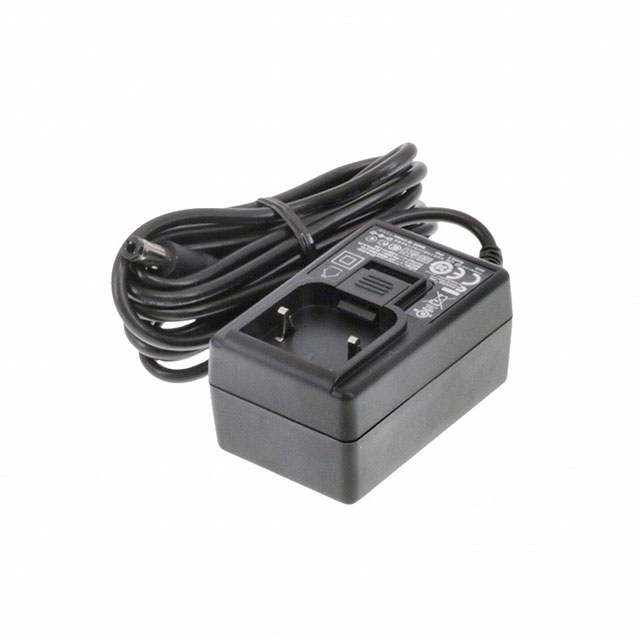

GlobTek, Inc. WR9QB1000LCP-N(R6B)	75 mW	5.95 V	1.83 m	72 in	1 A	40.5 mm	2.52 "	31.5 mm	1.24 "	64 mm	1.59 "	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI	Wall Mount	CoC Tier 2 Level VI	Multi-Blade (Sold Separately)	Positive Center	6 W	264 VAC	90 VAC	ITE (Commercial)	40 °C	0 °C	2.5 mm 5.5 mm	Barrel Plug	11 mm	60950-1	Multi-Blade (Sold Separately)	International
GlobTek, Inc. WR9QB1000T00NAIMR6B	75 mW	5.95 V	1.5 m	59 in	1 A		1.71 "		1.45 in	43.5 mm	2.91 in	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	Wall Mount	Level VI	Multi-Blade (Sold Separately)		6 W	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	50 °C	-20 ░C		Barrel Plug Kit (1.3mm x 3.5mm		1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Multi-Blade (Sold Separately)	International	36.8 mm	74 mm

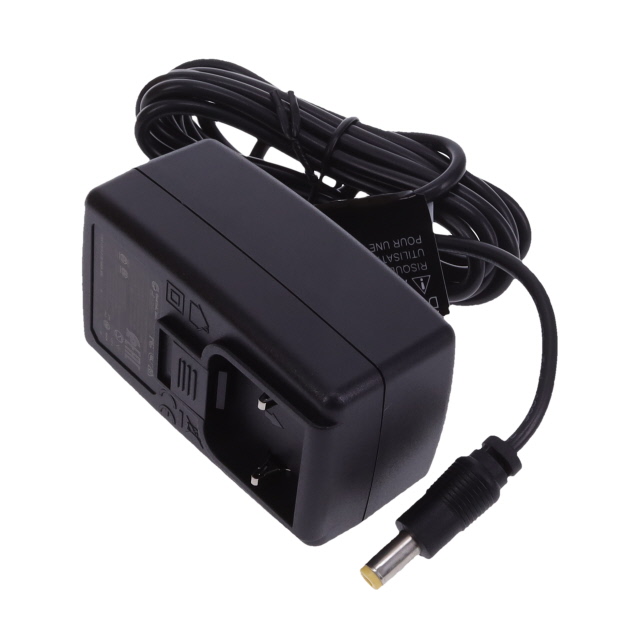

GlobTek, Inc. WR9QB1000CCPCIMR6B	75 mW	5.95 V	2 m	78.74 in	1 A	43.5 mm	2.91 in	36.8 mm	1.45 in	74 mm	1.71 in	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	Wall Mount	CoC Tier 2 Level VI	Multi-Blade (Included) Multi-Blade (Sold Separately)	Positive Center	6 W	264 VAC	90 VAC	Household Appliances ITE (Commercial) Medical	50 °C	-10 °C	2.1 mm 5.5 mm	Barrel Plug	11 mm	60335-1 60601-1 60950-1 62368-1	Multi-Blade (Included) Multi-Blade (Sold Separately)	International
