11000 Series

Catalog

CIRCUIT BOARD HARDWARE - PCB .080 X .250 SOLDER TERMINAL

Part	Terminal Type	Contact Finish	Number of Turrets	Mounting Type	Board Thickness	Board Thickness	Length - Overall	Length - Overall	Termination	Length - Above Board [x]	Length - Above Board [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Length - Below Flange [x]	Length - Below Flange [x]	Contact Material	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Diameter - Turret Head [diameter]	Diameter - Turret Head [diameter]	Insulation	Length - Overall [x]	Length - Overall [x]	Material - Insulation	Insulation Color	Length - Above Board	Length - Above Board	Length - Overall [custom]	Length - Overall [custom]	Flange Diameter	Flange Diameter	Color	Height	Height	Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Plating	Material - Body	Size / Dimension	Size / Dimension [z]
Keystone Electronics 11301	Single End	Tin	Double	Through Hole	1.57 mm	0.062 "	8.38 mm	0.33 in	Press-Fit	6.35 mm	0.25 in	0.125 in	3.18 mm	0.08 "	2.03 mm	Brass	0.086 in	2.18 mm	2.18 mm	0.086 "	Insulated
Keystone Electronics 11116	Double End Fork	Tin	Single	Through Hole	1.57 mm	0.062 "			Press-Fit	9.91 mm	0.39 in	0.187 in	4.75 mm	0.212 "	5.39 mm	Brass	0.158 in	4.01 mm			Insulated	0.821 in	20.85 mm

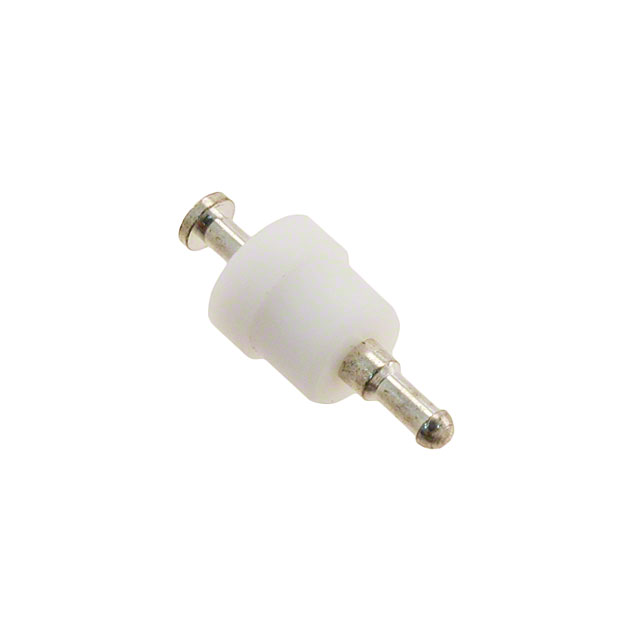

Keystone Electronics 11251	Double End	Tin	Double	Through Hole	1.57 mm	0.062 "			Press-Fit			0.2 "	5.08 mm	0.305 "	7.75 mm	Brass	0.158 in	4.01 mm	2.29 mm	0.09 "	Insulated			Polytetrafluoroethylene (PTFE)	White	0.195 in	4.95 mm	0.5 "	12.7 mm
Keystone Electronics 11311	Single End	Tin	Double	Through Hole	1.57 mm	0.062 "			Press-Fit	8.89 mm	0.35 in					Brass	0.136 in	3.45 mm	2.03 mm	0.08 in	Insulated	0.35 in	8.89 mm	Polytetrafluoroethylene (PTFE)	White

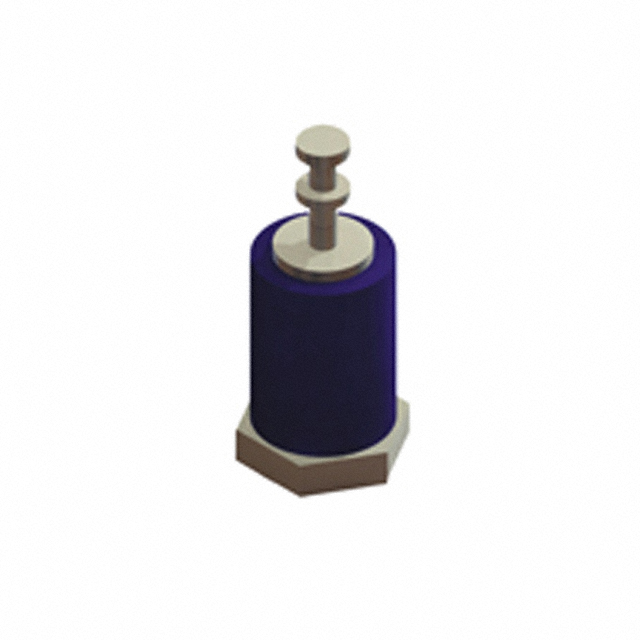

Keystone Electronics 11512	Single End	Tin	Double	Panel Mount					Threaded	15.09 mm	0.594 in					Brass			2.36 mm	0.093 in	Insulated	0.594 in	15.09 mm	Diallyl Phthalate (DAP)	Blue					6.35 mm	0.25 in

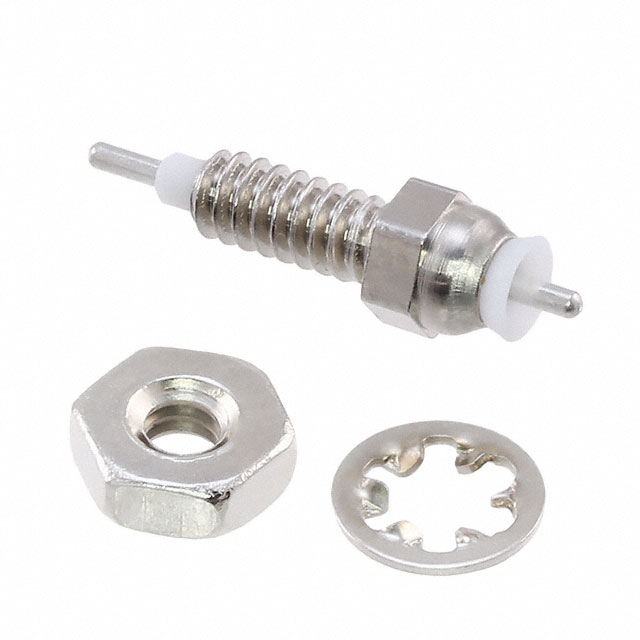

Keystone Electronics 11361	Double End Feed Through								Threaded																							White

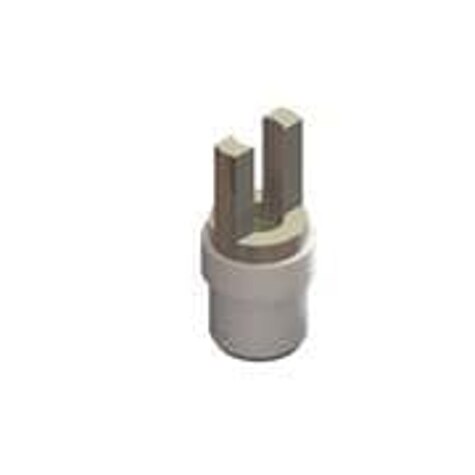

Keystone Electronics 11114	Fork Hollow Single End	Tin	Single	Through Hole	1.57 mm	0.062 "			Press-Fit	9.91 mm	0.39 in	0.187 in	4.75 mm	0.15 "	3.81 mm	Brass	0.158 in	4.01 mm			Insulated	0.54 in	13.72 mm	Polytetrafluoroethylene (PTFE)	White

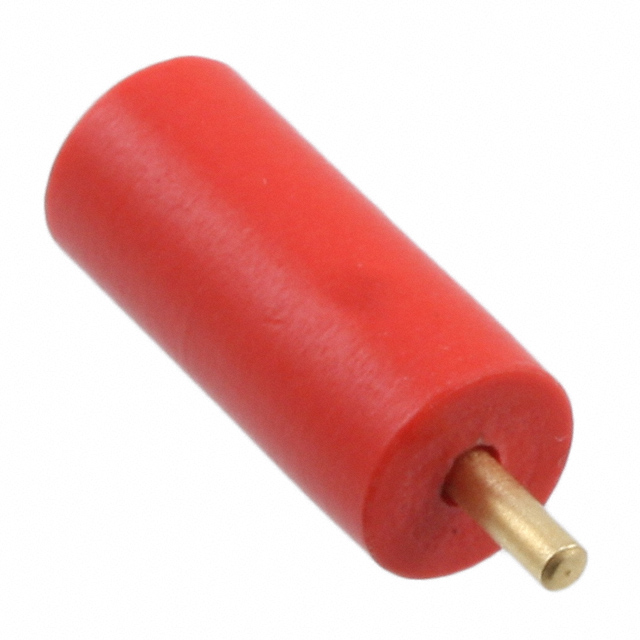

Keystone Electronics 11012-R				Through Hole																				Polytetrafluoroethylene (PTFE)								Red	12.7 mm	0.5 in	PC Test Point Jack	0.218 in	5.54 mm	Gold	Brass

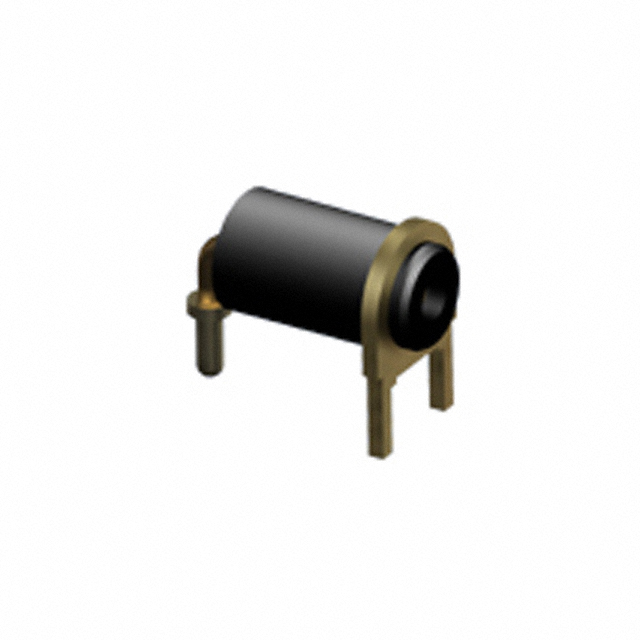

Keystone Electronics 11015-B				Right Angle Through Hole																				Polytetrafluoroethylene (PTFE)								Black	10.29 mm	0.405 in	PC Test Point Jack	0.218 in		Gold	Beryllium Copper	5.54 mm 9.6 mm	0.378 in
Keystone Electronics 11307	Single End	Tin	Double	Through Hole	1.57 mm	0.062 "			Press-Fit	7.37 mm	0.29 in			0.25 "	6.35 mm	Brass	0.136 in	3.45 mm	2.36 mm	0.093 in	Insulated	0.54 in	13.72 mm	Polytetrafluoroethylene (PTFE)	White
