VTB1113 Series
Manufacturer: Excelitas Technologies
Beta
⌘K

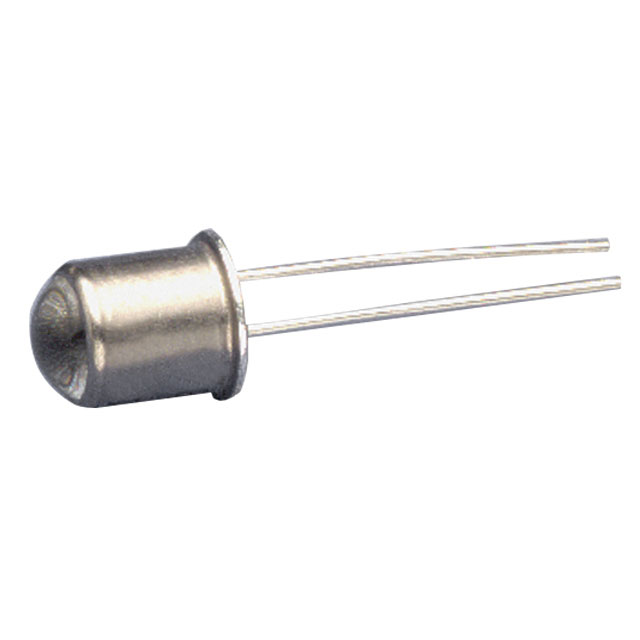

SENSOR PHOTODIODE 920NM RADIAL
| Part | Active Area | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Viewing Angle | Spectral Range [Min] | Spectral Range [Max] | Package / Case | Current - Dark (Typ) | Wavelength | Voltage - DC Reverse (Vr) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Excelitas Technologies | 1.6 mm˛ | Through Hole | -40 C | 110 °C | 30 ° | 320 nm | 1100 nm | Radial Lensed Metal Can TO-46-2 | 20 pA | 920 nm | 40 V |
 Excelitas Technologies | 1.6 mm˛ | Through Hole | -40 C | 110 °C | 30 ° | 330 nm | 720 nm | Radial Lensed Metal Can TO-46-2 | 20 pA | 580 nm | 40 V |
