BD9C301FJ-LB(H2) Series

4.5V to 18V Input, 3.0A Integrated MOSFET 1ch Synchronous Buck DC/DC Converter

Catalog

4.5V to 18V Input, 3.0A Integrated MOSFET 1ch Synchronous Buck DC/DC Converter

Part	Synchronous Rectifier	Supplier Device Package	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Package / Case	Package / Case [y]	Package / Case [x]	Output Configuration	Frequency - Switching	Topology	Function	Current - Output	Voltage - Output (Min/Fixed)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output Type	Voltage - Output (Max) [Max]	Voltage - Input [Max]	Voltage - Input [Min]	Main Purpose	Regulator Topology	Voltage - Output	Outputs and Type	Outputs and Type	Supplied Contents	Utilized IC / Part	Board Type
Rohm Semiconductor BD9C301FJ-LBGH2		8-SOP-J	1	18 V	4.5 V	8-SOIC	3.9 mm	0.154 in	Positive	500 kHz	Buck	Step-Down	3 A	0.8 V	85 °C	-40 °C	Surface Mount	Adjustable	12.6 V

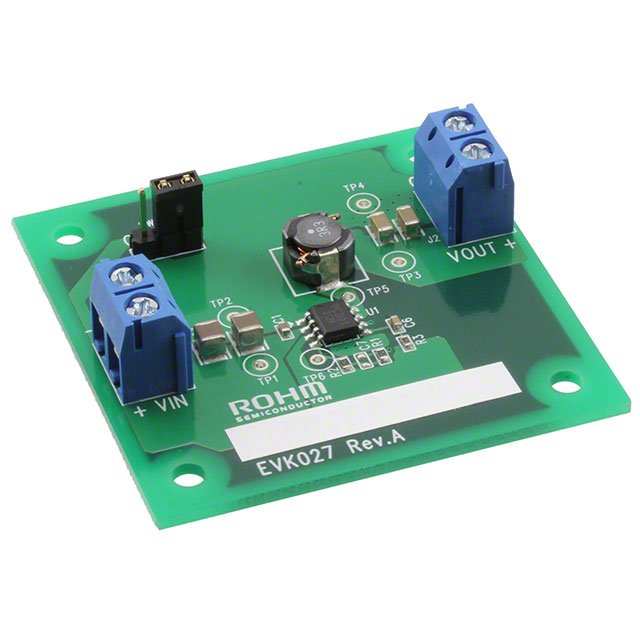

Rohm Semiconductor BD9C301FJ-EVK-001										500 kHz			3 A							18 V	4.72 V	DC/DC Step Down	Buck	3.3 V	Non-Isolated	1	Board(s)	BD9C301	Fully Populated

Catalog

4.5V to 18V Input, 3.0A Integrated MOSFET 1ch Synchronous Buck DC/DC Converter

Description

This is the product guarantees long time support in Industrial market. BD9C301FJ is a synchronous buck switching regulator with built-in low on-resistance power MOSFETs. With wide input voltage range, It is capable of providing current of up to 3 A. It is a current mode control DC/DC converter and features high-speed transient response. Phase compensation can also be set easily.
