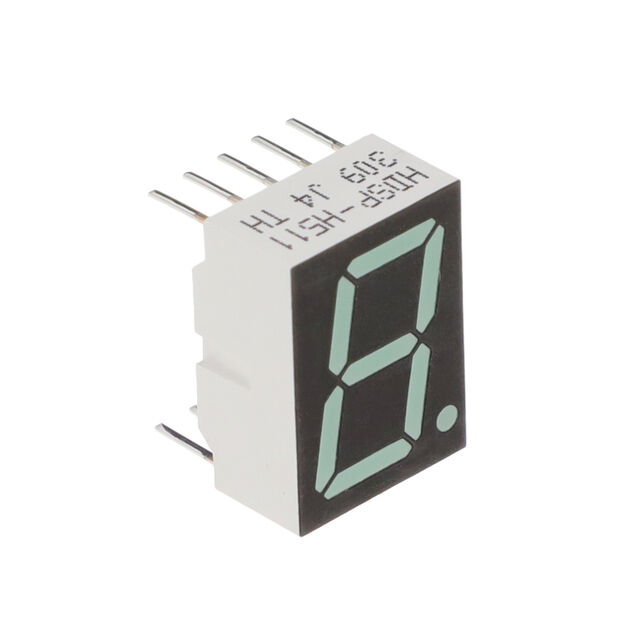

HDSP-H511 Series
Manufacturer: Broadcom Limited
Beta
⌘K
S4,0.56S,GRN,CA,T/S BLACK
| Part | Display Type | Wavelength - Peak | Number of Characters [custom] | Millicandela Rating | Package / Case | Package / Case | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Color | Current - Test | Voltage - Forward (Vf) (Typ) | Common Pin | Power Dissipation (Max) [Max] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 7-Segment | 566 nm | 1 | 2.5 mcd | 0.6 in | 15.24 mm | 10-DIP | 0.56 in | 14.22 mm | Green | 10 mA | 2.1 V | Common Anode | 105 mW | 8 mm | 17.02 mm | 0.495 in | 12.57 mm | 0.315 " | 0.67 in | |
Broadcom Limited | 7-Segment | 566 nm | 1 | 2.5 mcd | 0.6 in | 18-DIP | 0.56 in | 14.22 mm | Green | 10 mA | 2.1 V | Common Anode | 105 mW | 8 mm | 17.02 mm | 0.495 in | 12.57 mm | 0.315 " | 0.67 in | 15.24 mm |
