637-M62 Series
Manufacturer: EDAC Inc.
Beta
⌘K

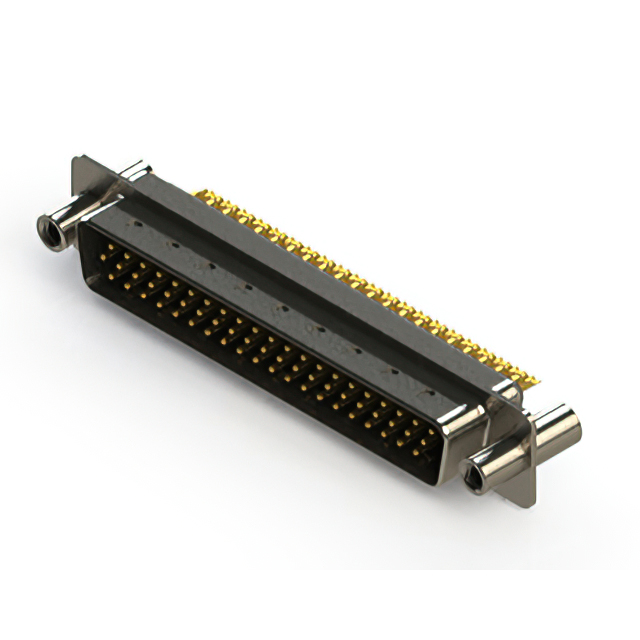

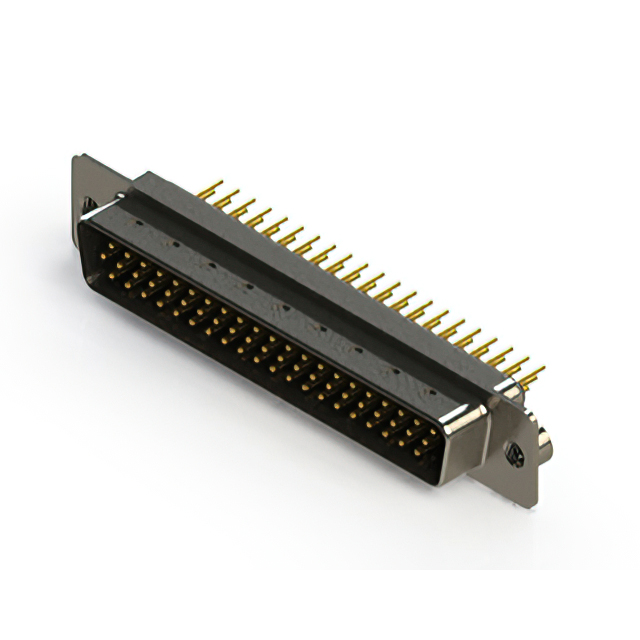

637M SERIES VERTICAL D-SUB PLUG
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Dielectric Material | Number of Positions | Connector Style | Material Flammability Rating | Contact Finish | Current Rating (Amps) | Features | Shell Size, Connector Layout | Shell Size, Connector Layout | Flange Feature | Flange Feature | Connector Type | Contact Type | Shell Material, Finish | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Contact Finish Thickness | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 62 | D-Sub High Density | UL94 V-0 | Gold | 5 A | Board Lock Grounding Indents Shielded | C DC | 4 | Housing/Shell | 4-40 | Plug Male Pins | Signal | Nickel Plated Steel | 3 | 30 Áin | 0.76 Ám | Free Hanging (In-Line) | ||
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 62 | D-Sub High Density | UL94 V-0 | Gold | 5 A | Grounding Indents Shielded | C DC | 4 | Housing/Shell | 4-40 | Plug Male Pins | Signal | 3 | Free Hanging (In-Line) | Flash | ||||
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 62 | D-Sub High Density | UL94 V-0 | Gold | 5 A | Grounding Indents Shielded | C DC | 4 | Housing/Shell | 4-40 | Plug Male Pins | Signal | Nickel Plated Steel | 3 | Free Hanging (In-Line) | Flash | |||
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 62 | D-Sub High Density | UL94 V-0 | Gold | 5 A | Grounding Indents Shielded | C DC | 4 | Housing/Shell | 4-40 | Plug Male Pins | Signal | 3 | Through Hole | Flash | Solder | |||
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 62 | D-Sub High Density | UL94 V-0 | Gold | 5 A | Grounding Indents Shielded | C DC | 4 | Housing/Shell | 4-40 | Plug Male Pins | Signal | 3 | 30 Áin | 0.76 Ám | Through Hole | Solder | ||
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 62 | D-Sub High Density | UL94 V-0 | Gold | 5 A | Grounding Indents Shielded | C DC | 4 | Housing/Shell | 4-40 | Plug Male Pins | Signal | 3 | 30 Áin | 0.76 Ám | Through Hole | Solder | ||
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 62 | D-Sub High Density | UL94 V-0 | Gold | 5 A | Grounding Indents Shielded | C DC | 4 | Housing/Shell | 4-40 | Plug Male Pins | Signal | 3 | 30 Áin | 0.76 Ám | Through Hole | Solder | ||
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 62 | D-Sub High Density | UL94 V-0 | Gold | 5 A | Grounding Indents Shielded | C DC | 4 | Housing/Shell | 4-40 | Plug Male Pins | Signal | 3 | Free Hanging (In-Line) | Flash | ||||
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 62 | D-Sub High Density | UL94 V-0 | Gold | 5 A | Grounding Indents Shielded | C DC | 4 | Housing/Shell | 4-40 | Plug Male Pins | Signal | 3 | Through Hole | Flash | Solder | |||
 EDAC Inc. | Black | -55 C | 125 °C | Copper Alloy | Polyamide (PA6T) Nylon 6T | 62 | D-Sub High Density | UL94 V-0 | Gold | 5 A | Grounding Indents Shielded | C DC | 4 | Housing/Shell | 4-40 | Plug Male Pins | Signal | Nickel Plated Steel | 3 | Through Hole | Flash | Solder |
