5826 Series

Manufacturer: BRADY

Catalog

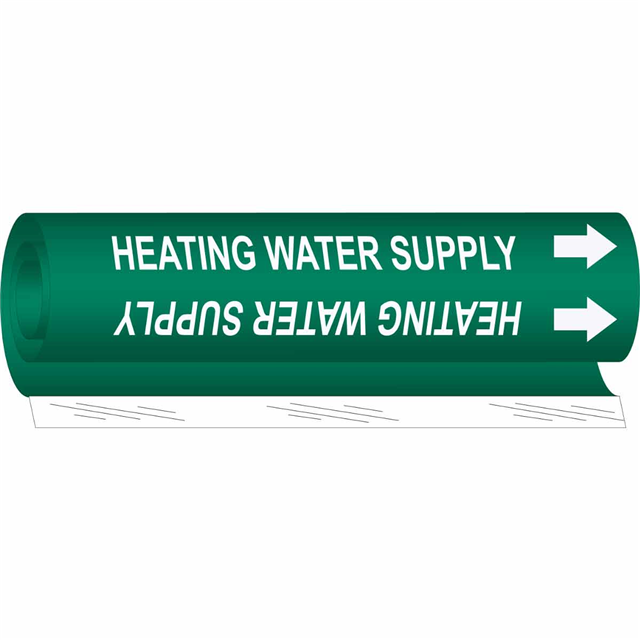

B689 5826-II WHT/GRN STYLE II

Part	Legend (Symbol Only)	Length [x]	Length [x]	Features	Arrangement	Print Type	Color - Legend	Shape	Outside Pipe Diameter (Min) [Min]	Outside Pipe Diameter (Min) [Min]	Color - Background	Material - Body	Applications	Language	Legend (Text)	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Application Specifics	Mounting Type	Width	Width	Location	Length	Length	Outside Pipe Diameter (Min)	Width [x]	Width [x]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]
BRADY 5826-II	Directional Arrow	660.4 mm	26 in	Chemical Resistant	Symbol and Text	Pre-Printed	White	Rectangle	7.875 in	200.03 mm	Green	Plastic	Pipe	63000 A 69000 A	Heating Water Supply	63.5 mm	2.5 in	Water Fluids	Snap On	304.8 mm	12 in	Outdoor
BRADY 5826-O	Directional Arrow			Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Symbol and Text	Pre-Printed	White	Rectangle	1.375 in		Green	Plastic	Pipe	63000 A 69000 A	Heating Water Supply			Directionality	Snap On			Outdoor	8 in	203.2 mm	34.93 mm	127 mm	127 mm	0.5 in	12.7 mm
BRADY 5826-I	Directional Arrow			Abrasion Resistant Chemical Resistant	Symbol and Text	Pre-Printed	White	Rectangle	2.375 in		Green	Plastic	General	63000 A 69000 A	Heating Water Supply			Directionality	Snap On	203.2 mm	8 in	Outdoor	9 in	228.6 mm	60.33 mm					1.5 in	38.1 mm
