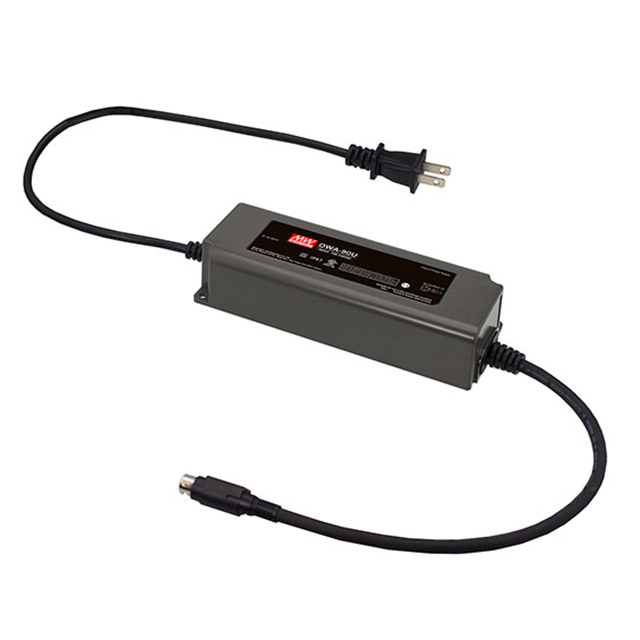

OWA-90U Series

Catalog

AC/DC DESKTOP ADAPTER 36V 90W

Part	Applications	Approval Agency	Power (Watts)	Efficiency	No Load Power Consumption	Region Utilized	Voltage - Input [Max]	Voltage - Input [Min]	Polarization	Input Type	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	Voltage - Output	Cord Length	Cord Length	Operating Temperature [Max]	Operating Temperature [Min]	Form	Output Connector [diameter]	Output Connector	Output Connector [x]
MEAN WELL USA Inc. OWA-90U-36-P1M	ITE (Commercial)	cULus FCC UL	90 W	Level VI	150 mW	North America	264 VAC	90 VAC	Positive Center	Cord	2.5 A	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	NEMA 1-15P	36 V	11.8 "	0.3 m	70 °C	-40 C	Desktop (Class II)	2.5 mm 5.5 mm	Barrel Plug	11 mm
MEAN WELL USA Inc. OWA-90U-42-P1M	ITE (Commercial)	cULus FCC UL	90 W	Level VI	150 mW	North America	264 VAC	90 VAC	Positive Center	Cord	2.15 A	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	NEMA 1-15P	42 V	11.8 "	0.3 m	70 °C	-40 C	Desktop (Class II)	2.5 mm 5.5 mm	Barrel Plug	11 mm
MEAN WELL USA Inc. OWA-90U-54	ITE (Commercial)	cULus FCC UL	90 W	Level VI	150 mW	North America	264 VAC	90 VAC		Cord	1.67 A	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	NEMA 1-15P	54 V	11.8 "	0.3 m	70 °C	-40 C	Desktop (Class II)		Power DIN 4 Pin
MEAN WELL USA Inc. OWA-90U-12	ITE (Commercial)	cULus FCC UL	90 W	Level VI	150 mW	North America	264 VAC	90 VAC		Cord	7.5 A	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	NEMA 1-15P	12 V	11.8 "	0.3 m	70 °C	-40 C	Desktop (Class II)		Power DIN 4 Pin
MEAN WELL USA Inc. OWA-90U-30-P1M	ITE (Commercial)	cULus FCC UL	90 W	Level VI	150 mW	North America	264 VAC	90 VAC	Positive Center	Cord	3 A	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	NEMA 1-15P	30 V	11.8 "	0.3 m	70 °C	-40 C	Desktop (Class II)	2.5 mm 5.5 mm	Barrel Plug	11 mm
MEAN WELL USA Inc. OWA-90U-54-P1M	ITE (Commercial)	cULus FCC UL	90 W	Level VI	150 mW	North America	264 VAC	90 VAC	Positive Center	Cord	1.67 A	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	NEMA 1-15P	54 V	11.8 "	0.3 m	70 °C	-40 C	Desktop (Class II)	2.5 mm 5.5 mm	Barrel Plug	11 mm
MEAN WELL USA Inc. OWA-90U-30	ITE (Commercial)	cULus FCC UL	90 W	Level VI	150 mW	North America	264 VAC	90 VAC		Cord	3 A	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	NEMA 1-15P	30 V	11.8 "	0.3 m	70 °C	-40 C	Desktop (Class II)		Power DIN 4 Pin
MEAN WELL USA Inc. OWA-90U-48-P1M	ITE (Commercial)	cULus FCC UL	90 W	Level VI	150 mW	North America	264 VAC	90 VAC	Positive Center	Cord	1.88 A	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	NEMA 1-15P	48 V	11.8 "	0.3 m	70 °C	-40 C	Desktop (Class II)	2.5 mm 5.5 mm	Barrel Plug	11 mm
MEAN WELL USA Inc. OWA-90U-20-P1M	ITE (Commercial)	cULus FCC UL	90 W	Level VI	150 mW	North America	264 VAC	90 VAC	Positive Center	Cord	4.5 A	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	NEMA 1-15P	20 V	11.8 "	0.3 m	70 °C	-40 C	Desktop (Class II)	2.5 mm 5.5 mm	Barrel Plug	11 mm
MEAN WELL USA Inc. OWA-90U-36	ITE (Commercial)	cULus FCC UL	90 W	Level VI	150 mW	North America	264 VAC	90 VAC		Cord	2.5 A	1.48 "	6.73 in	63 mm	37.5 mm	2.48 in	171 mm	NEMA 1-15P	36 V	11.8 "	0.3 m	70 °C	-40 C	Desktop (Class II)		Power DIN 4 Pin
