FES10G Series

Ultrafast Rectifier

Catalog

Ultrafast Rectifier

Part	Technology	Package / Case	Mounting Type	Reverse Recovery Time (trr)	Speed	Supplier Device Package	Grade	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Capacitance @ Vr, F	Current - Average Rectified (Io)	Qualification	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Voltage - Forward (Vf) (Max) @ If [Max]

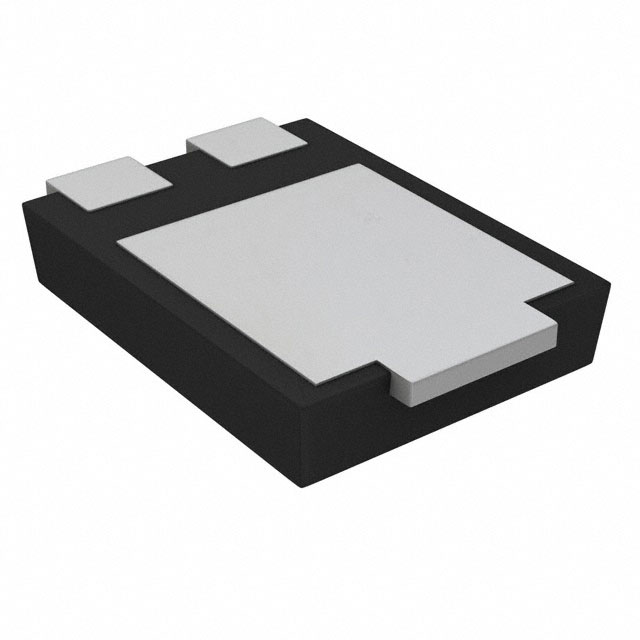

ON Semiconductor FES10J	Standard	3-PowerDFN TO-277	Surface Mount	30 ns	200 mA 500 ns	TO-277-3	Automotive	175 ░C	-55 C	600 V	140 pF	10 A	AEC-Q101	5 µA	1.8 V
ON Semiconductor FES10G	Standard	3-PowerDFN TO-277	Surface Mount	30 ns	200 mA 500 ns	TO-277-3	Automotive	175 ░C	-55 C	400 V	140 pF	10 A	AEC-Q101	5 µA		1.2 V
ON Semiconductor FES10G	Standard	3-PowerDFN TO-277	Surface Mount	30 ns	200 mA 500 ns	TO-277-3	Automotive	175 ░C	-55 C	400 V	140 pF	10 A	AEC-Q101	5 µA		1.2 V

Ultrafast Rectifier

• Very Low Profile : Typical Height of 1.1mm

• Ultrafast Recovery Time

• Low Forward Voltage Drop

• Low Thermal Resistance

• Very Stable Operation at Industrial Temperature, 150c

• RoHS CompliantGreen Mold Compound as per IEC61249

• StandardLead Free in compliance with EU RoHS 2011/65/EU Directive

• Industrial Device Qualified per AEC-Q101 Standards* See authorized use policy

10A, 600V Surface Mount Ultrafast Rectifier
