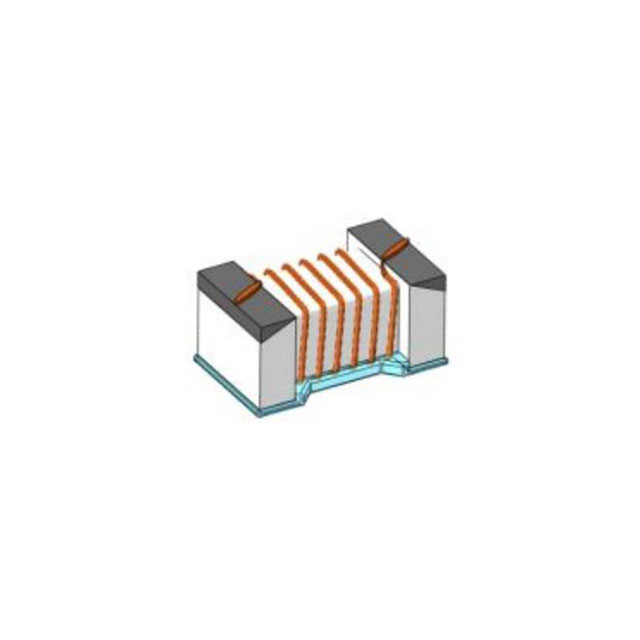

MWSD1005C14 Series

Catalog

FIXED IND 14NH 430MA 210MOHM SMD

Part	Package / Case	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material - Core	Supplier Device Package	Current Rating (Amps)	Inductance Frequency - Test	Shielding	DC Resistance (DCR) [Max]	Type	Inductance	Mounting Type	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C14NHT	0402 (1005 Metric)	0.024 "	1.1 mm	0.6 mm	0.043 in	Ceramic	0402	430 mA	250 MHz	Unshielded	210 mOhm	Drum Core Wirewound	14 nH	Surface Mount	5 GHz	26	250 MHz	125 °C	-40 C	0.026 in	0.65 mm	3 %
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C14NKT	0402 (1005 Metric)	0.024 "	1.1 mm	0.6 mm	0.043 in	Ceramic	0402	430 mA	250 MHz	Unshielded	210 mOhm	Drum Core Wirewound	14 nH	Surface Mount	5 GHz	26	250 MHz	125 °C	-40 C	0.026 in	0.65 mm	10 %
Shenzhen Sunlord Electronics Co., Ltd. MWSD1005C14NJT	0402 (1005 Metric)	0.024 "	1.1 mm	0.6 mm	0.043 in	Ceramic	0402	430 mA	250 MHz	Unshielded	210 mOhm	Drum Core Wirewound	14 nH	Surface Mount	5 GHz	26	250 MHz	125 °C	-40 C	0.026 in	0.65 mm	5 %
