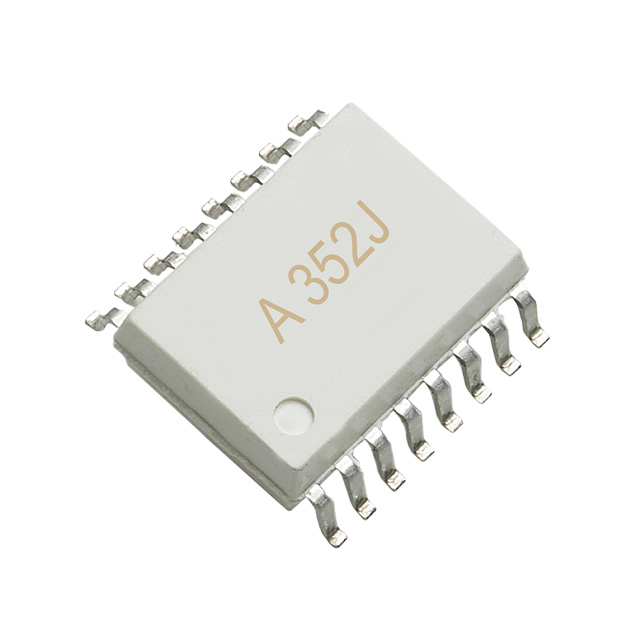

ACPL-352 Series

Catalog

OPTOISO 5KV 1CH GATE DVR 16SOIC

Part	Current - Output High, Low [Min]	Current - Output High, Low [Max]	Approval Agency	Mounting Type	Number of Channels [custom]	Voltage - Forward (Vf) (Typ)	Current - Peak Output	Propagation Delay tpLH / tpHL (Max) [Max]	Pulse Width Distortion (Max) [Max]	Current - DC Forward (If) (Max) [Max]	Technology	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case	Package / Case	Package / Case	Supplier Device Package	Common Mode Transient Immunity (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]
Broadcom Limited ACPL-352J-500E	4.5 A	4.5 A	CSA IEC/EN/DIN UR	Surface Mount	1	1.55 V	5 A	150 ns	50 ns	25 mA	Optical Coupling	37 ns	30 ns	16-SOIC	7.5 mm	0.295 "	16-SOIC	100 V/ns	-40 C	105 ░C	15 V	30 V
Broadcom Limited ACPL-352J-000E	4.5 A	4.5 A	CSA IEC/EN/DIN UR	Surface Mount	1	1.55 V	5 A	150 ns	50 ns	25 mA	Optical Coupling	37 ns	30 ns	16-SOIC	7.5 mm	0.295 "	16-SO	100 V/ns	-40 C	105 ░C	15 V	30 V
