628-M09 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN D-SUB RCPT 9POS VERT SLDR
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Dielectric Material | Features | Shell Material, Finish | Mounting Type | Termination | Current Rating (Amps) | Connector Type | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Finish | Contact Type | Flange Feature | Flange Feature | Connector Style | Number of Rows [custom] | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

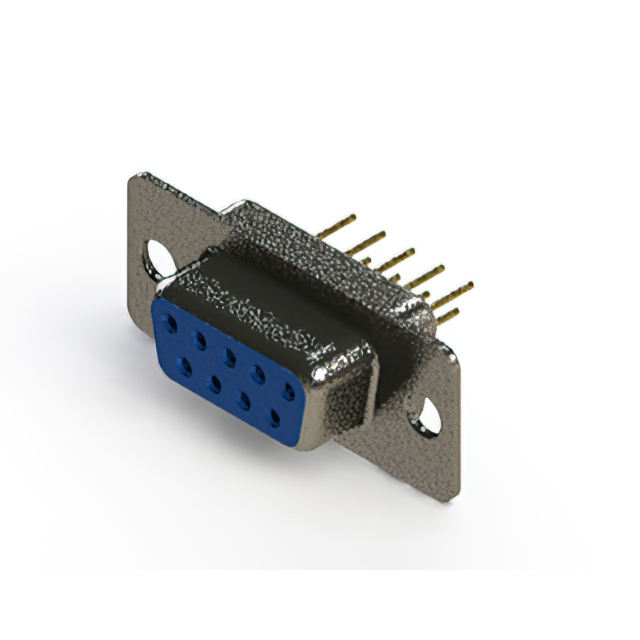

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Shielded | Nickel Plated Steel | Through Hole | Solder | 5 A | Receptacle Female Sockets | UL94 V-0 | 0.38 µm | 15 µin | 9 | 1 | DE E | Gold | Signal and Power | Housing/Shell | 4-40 | D-Sub | 2 | |

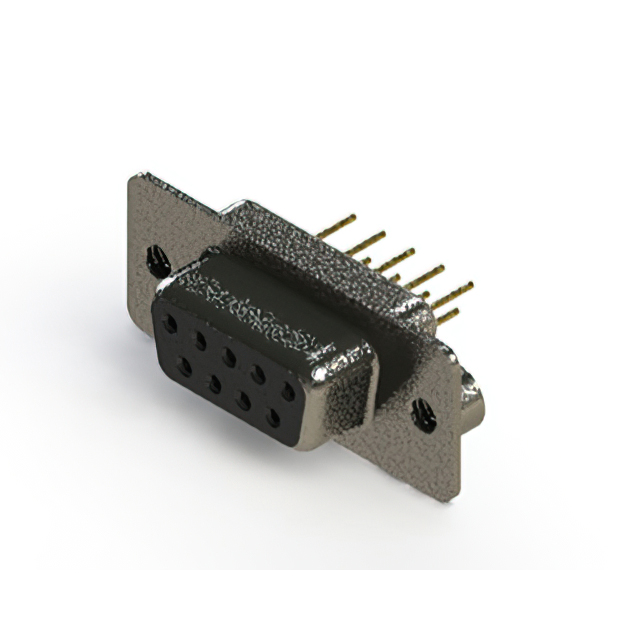

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Black | Polyamide (PA6T) Nylon 6T | Shielded | Nickel Plated Steel | Through Hole | Solder | 5 A | Receptacle Female Sockets | UL94 V-0 | 9 | 1 | DE E | Gold | Signal and Power | Housing/Shell (Unthreaded) | D-Sub | 2 | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Shielded | Through Hole | Solder | 5 A | Receptacle Female Sockets | UL94 V-0 | 0.38 µm | 15 µin | 9 | 1 | DE E | Gold | Signal and Power | Housing/Shell (Unthreaded) | D-Sub | 2 | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Board Lock Shielded | Nickel Plated Steel | Through Hole | Solder | 5 A | Receptacle Female Sockets | UL94 V-0 | 0.76 Ám | 30 Áin | 9 | 1 | DE E | Gold | Signal and Power | Board Side (4-40) | D-Sub | 2 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Shielded | Nickel Plated Steel | Through Hole | Solder | 5 A | Receptacle Female Sockets | UL94 V-0 | 9 | 1 | DE E | Gold | Signal and Power | Board Side (4-40) | D-Sub | 2 | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Board Lock Shielded | Through Hole | Solder | 5 A | Receptacle Female Sockets | UL94 V-0 | 0.76 Ám | 30 Áin | 9 | 1 | DE E | Gold | Signal and Power | 4-40 | D-Sub | 2 | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Shielded | Nickel Plated Steel | Through Hole | Solder | 5 A | Receptacle Female Sockets | UL94 V-0 | 9 | 1 | DE E | Gold | Signal and Power | Housing/Shell (Unthreaded) | D-Sub | 2 | Flash | |||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | White | Polyamide (PA6T) Nylon 6T | Shielded | Nickel Plated Steel | Through Hole | Solder | 5 A | Receptacle Female Sockets | UL94 V-0 | 0.38 µm | 15 µin | 9 | 1 | DE E | Gold | Signal and Power | Housing/Shell (Unthreaded) | D-Sub | 2 | ||
 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Blue | Polyamide (PA6T) Nylon 6T | Board Lock Shielded | Nickel Plated Steel | Through Hole | Solder | 5 A | Receptacle Female Sockets | UL94 V-0 | 9 | 1 | DE E | Gold | Signal and Power | Board Side (4-40) | D-Sub | 2 | Flash | |||

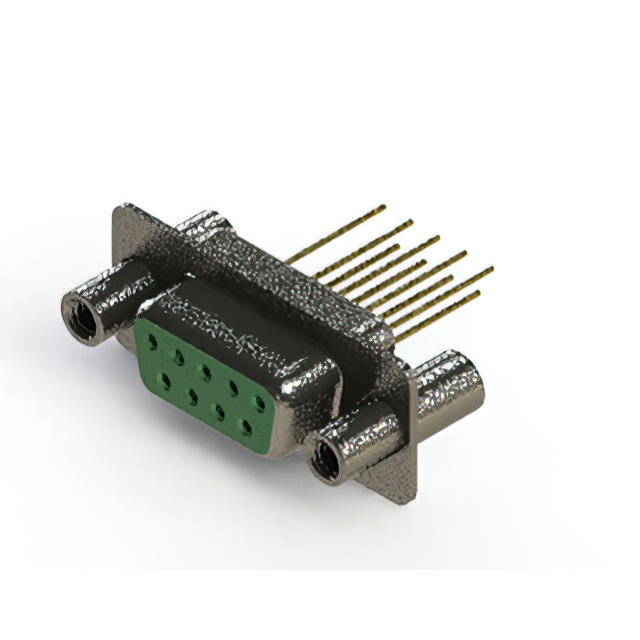

 EDAC Inc. | Copper Alloy | -55 C | 125 °C | Green | Polyamide (PA6T) Nylon 6T | Board Lock Shielded | Nickel Plated Steel | Through Hole | Solder | 5 A | Receptacle Female Sockets | UL94 V-0 | 0.76 Ám | 30 Áin | 9 | 1 | DE E | Gold | Signal and Power | 4-40 | D-Sub | 2 |
