ASSR Series

Catalog

SOLID STATE RELAYS - PCB MOUNT SSR(GP+1A) (60V 0.6A)

Part	Voltage - Load [Max]	Voltage - Load [Min]	Termination Style	Approval Agency	Load Current	Package / Case	Package / Case	Package / Case	Mounting Type	Output Type	Supplier Device Package	On-State Resistance (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input	Turn On / Turn Off Time (Typ)	Input Type	Voltage - Output (Max) [Max]	Voltage - Isolation	Number of Channels	Current - DC Forward (If) (Max) [Max]	Voltage - Forward (Vf) (Typ)	Package / Case	Circuit
Broadcom Limited ASSR-1411-501E	60 V	0 V	Gull Wing	CSA UL	600 mA	7.62 mm	0.3 in	6-SMD	Surface Mount	AC DC	6-DIP Gull Wing	1 Ohms	85 °C	-40 C	1.3 V
Broadcom Limited ASSR-V622-302E									Surface Mount	Photovoltaic	8-DIP Gull Wing		85 °C	-40 C		30 µs 280 µs	DC	7 V	3750 Vrms	2	30 mA	1.3 V

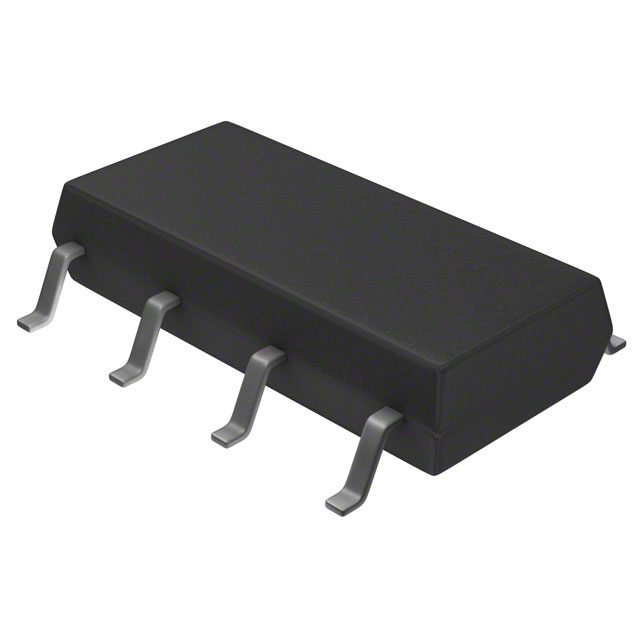

Broadcom Limited ASSR-1530-005E	60 V	0 V	Gull Wing	CSA UL	1000 mA			8-SOP	Surface Mount	AC DC	8-SO	500 mOhm	85 °C	-40 C	1.3 V								0.173 " 4.4 mm	SPST-NO (1 Form A) x 2
