ZC Series

Basic / Snap Action Switches SM.LS,SEAL.RLR.PLNGR;24VDC LED

Manufacturer: Omron Automation and Safety

Catalog

Basic / Snap Action Switches SM.LS,SEAL.RLR.PLNGR;24VDC LED

Catalog

Basic / Snap Action Switches SM.LS,SEAL.RLR.PLNGR;24VDC LED

Part	Differential Travel	Differential Travel	Voltage Rating - DC	Circuit	Operating Force	Actuator Type	Termination Style	Overtravel	Overtravel	Operating Position	Operating Position	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Current Rating (Amps)	Ingress Protection	Release Force	Voltage Rating - AC	Pretravel	Pretravel	Mounting Type	Mechanical Life	Overtravel [custom]	Overtravel [custom]	Features
Omron Automation and Safety ZC-Q2155-MR VCT 5M	0.2 mm	0.008 in	30 V	SPDT	1200 gf	Roller Plunger	Cable Leads	0.118 "	3 mm	1.866 in	47.4 mm	On-Mom	-10 °C	80 °C	500000 Cycles	6 A 10 A	IP67 - Dust Tight Waterproof	500 gf	125 V	0.06 in	1.5 mm	Panel Mount	10000000 Cycles
Omron Automation and Safety ZC-W55	1 mm	0.04 in	30 V	SPDT	400 gf	Lever Straight	Screw Terminal			1.122 in	28.5 mm	On-Mom	-10 °C	80 °C	500000 Cycles	6 A 10 A	IP67 - Dust Tight Waterproof	80 gf	125 V			Chassis Mount	10000000 Cycles	0.235 "	6 mm

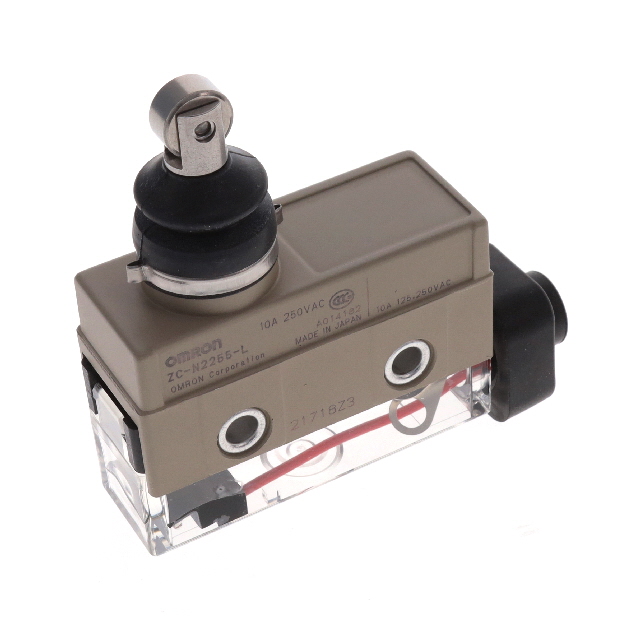

Omron Automation and Safety ZC-N2255L	0.2 mm	0.008 in	30 V	SPDT	700 gf	Roller Plunger	Screw Terminal			1.866 in	47.4 mm	On-Mom	-10 °C	80 °C	500000 Cycles	6 A 10 A	IP67 - Dust Tight Waterproof	170 gf	125 V	0.06 in	1.5 mm	Chassis Mount	10000000 Cycles	0.098 "	2.5 mm	Status Indicator
Omron Automation and Safety ZC-Q2255-MD VCT 1M	0.2 mm	0.008 in	30 V	SPDT	1200 gf	Roller Plunger	Cable Leads	0.118 "	3 mm	1.866 in	47.4 mm	On-Mom	-10 °C	80 °C	500000 Cycles	6 A 10 A	IP67 - Dust Tight Waterproof	500 gf	125 V	0.06 in	1.5 mm	Panel Mount	10000000 Cycles
Omron Automation and Safety ZC-W155-MR VCT 3M	1.4 mm	0.055 in	30 V	SPDT	280 gf	Lever Straight	Cable Leads			1.122 in	28.5 mm	On-Mom	-10 °C	80 °C	500000 Cycles	6 A 10 A	IP67 - Dust Tight Waterproof	60 gf	125 V			Chassis Mount	10000000 Cycles
