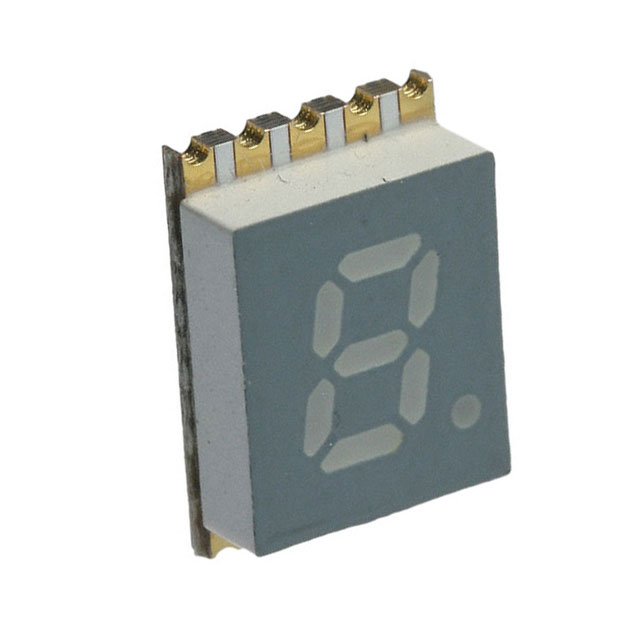

ACSA02 Series
Manufacturer: Kingbright
Beta
⌘K

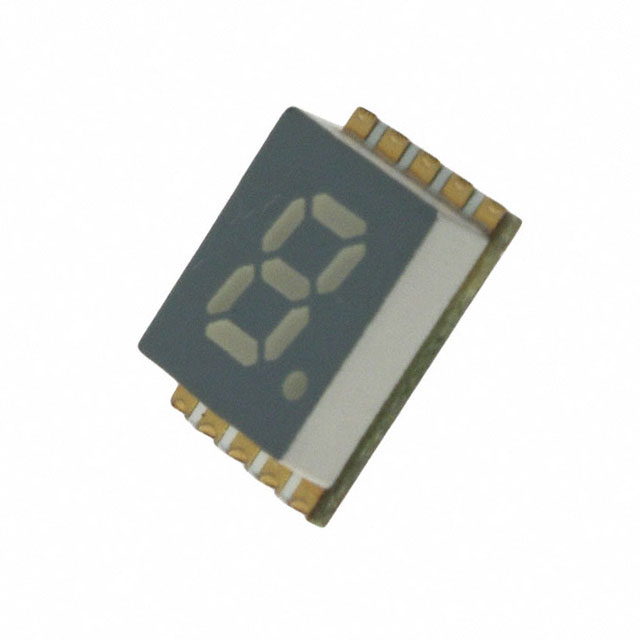

DISPLAY 7-SEG 0.2" SGL RED 10SMD
| Part | Wavelength - Peak | Number of Characters | Digit/Alpha Size | Digit/Alpha Size | Voltage - Forward (Vf) (Typ) | Display Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Color | Power Dissipation (Max) [Max] | Package / Case | Millicandela Rating | Common Pin | Current - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 650 nm | 1 | 0.2 in | 5.08 mm | 1.95 V | 7-Segment | 0.118 " | 0.272 in | 3 mm | 8 mm | 0.315 in | 6.9 mm | Red | 75 mw | 10-SMD No Lead | 30 mcd | Common Anode | 20 mA |
 Kingbright | 590 nm | 1 | 0.2 in | 5.08 mm | 2 V | 7-Segment | 0.118 " | 0.272 in | 3 mm | 8 mm | 0.315 in | 6.9 mm | Yellow | 75 mw | 10-SMD No Lead | 50 mcd | Common Anode | 20 mA |
 Kingbright | 565 nm | 1 | 0.2 in | 5.08 mm | 2.2 V | 7-Segment | 0.118 " | 0.272 in | 3 mm | 8 mm | 0.315 in | 6.9 mm | Green | 62.5 mW | 10-SMD No Lead | 3.9 mcd | Common Anode | 20 mA |
 Kingbright | 1 | 0.2 in | 5.08 mm | 2.1 V | 7-Segment | 0.118 " | 0.272 in | 3 mm | 8 mm | 0.315 in | 6.9 mm | Green | 75 mw | 10-SMD No Lead | 12 mcd | Common Anode | 20 mA |
