112TW1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH TOGGLE DPDT 5A 125V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Illumination	Circuit	Termination Style	Voltage Rating - DC	Actuator Type	Current Rating (Amps)	Bushing Thread	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Mounting Type	Actuator Length [x]	Features
Honeywell Sensing and Productivity Solutions 112TW1-8F	12.4 mm	125 V	Non-Illuminated	DPDT	IWTS	28 V	Locking Lever	5 A	15/32-32	On-Mom	-65 ░C	71 °C	Environment Sealed	Panel Mount	29.46 mm

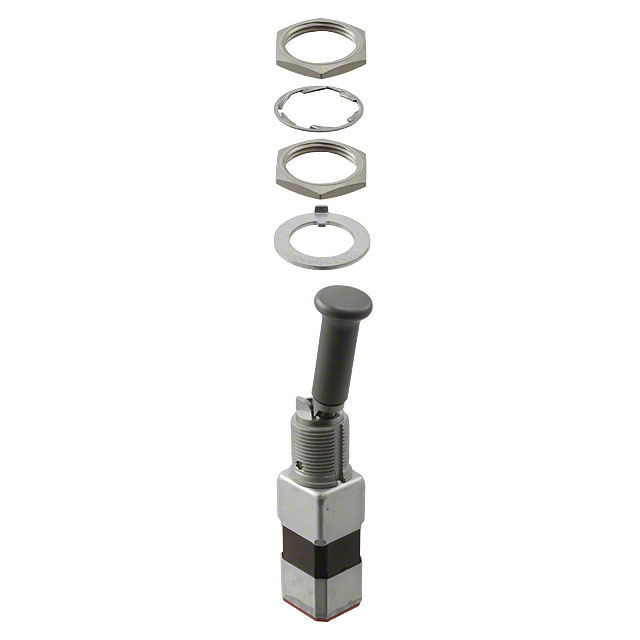

Honeywell Sensing and Productivity Solutions 112TW1-3G	12.4 mm	125 V	Non-Illuminated	DPDT	IWTS	28 V	Locking Lever	5 A	15/32-32	On-On	-65 ░C	71 °C	Environment Sealed	Panel Mount	29.46 mm
Honeywell Sensing and Productivity Solutions 112TW1-10A	12.4 mm	125 V	Non-Illuminated	SP3T	IWTS	28 V	Locking Lever	5 A	15/32-32	On-On-On	-65 ░C	71 °C	Environment Sealed	Panel Mount	29.46 mm	Jumper needed to achieve triple throw

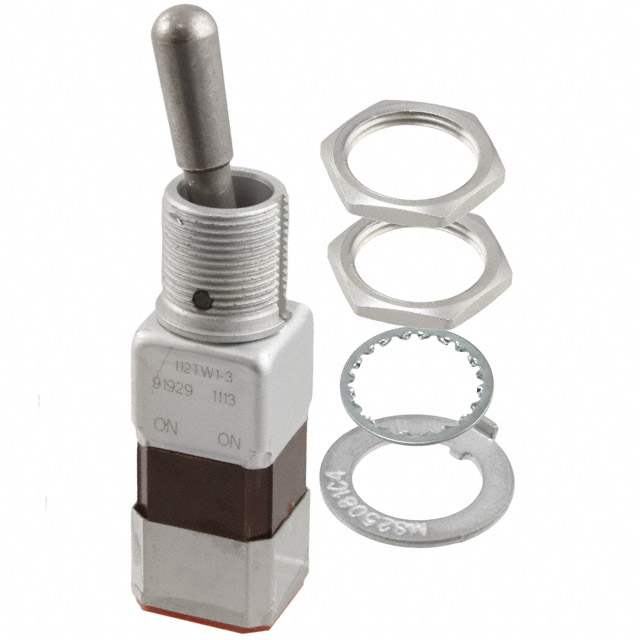

Honeywell Sensing and Productivity Solutions 112TW1-3	12.4 mm	125 V	Non-Illuminated	DPDT	IWTS	28 V	Standard Round	5 A	15/32-32	On-On	-65 ░C	71 °C	Environment Sealed	Panel Mount	17.27 mm
Honeywell Sensing and Productivity Solutions 112TW1-50	12.4 mm	125 V	Non-Illuminated	DPDT	IWTS	28 V	Standard Round	5 A	15/32-32	On-On-Mom	-65 ░C	71 °C	Environment Sealed	Panel Mount	17.27 mm
Honeywell Sensing and Productivity Solutions 112TW1-7	12.4 mm	125 V	Non-Illuminated	DPDT	IWTS	28 V	Standard Round	5 A	15/32-32	Mom-Off-Mom	-65 ░C	71 °C	Environment Sealed	Panel Mount	17.27 mm
Honeywell Sensing and Productivity Solutions 112TW1-51	12.4 mm	125 V	Non-Illuminated	DPDT	IWTS	28 V	Standard Round	5 A	15/32-32	On-Mom	-65 ░C	71 °C	Environment Sealed	Panel Mount	17.27 mm

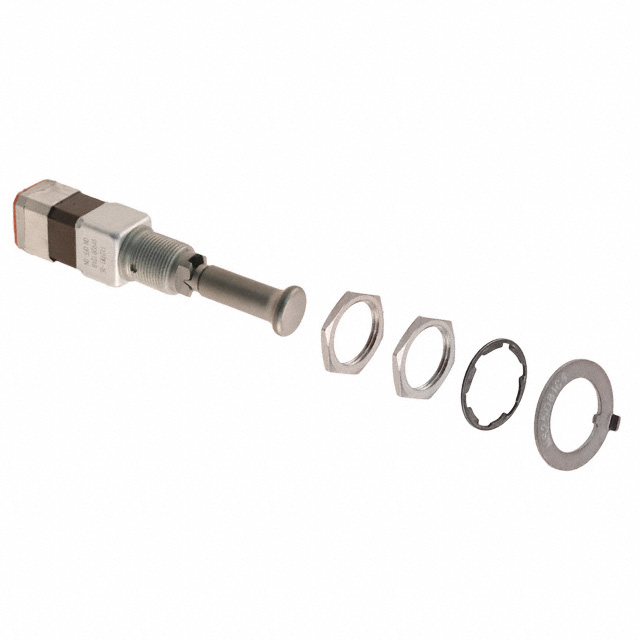

Honeywell Sensing and Productivity Solutions 112TW1-1E	12.4 mm	125 V	Non-Illuminated	DPDT	IWTS	28 V	Locking Lever	5 A	15/32-32	On-Off-On	-65 ░C	71 °C	Environment Sealed	Panel Mount	29.46 mm

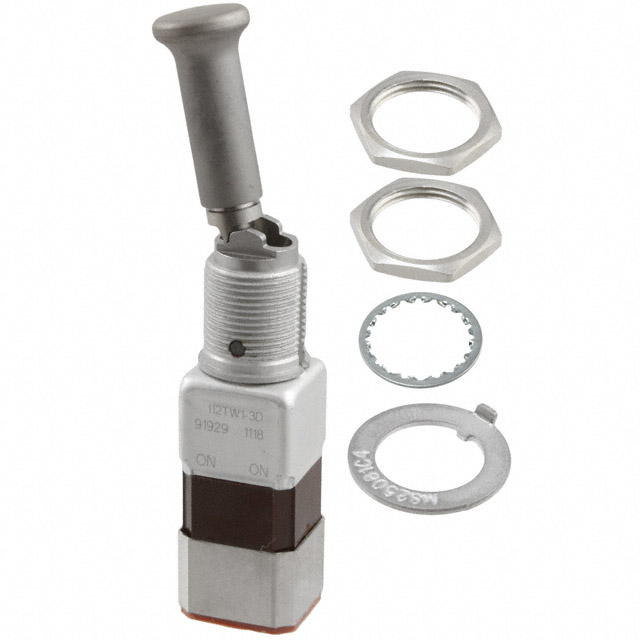

Honeywell Sensing and Productivity Solutions 112TW1-3D	12.4 mm	125 V	Non-Illuminated	DPDT	IWTS	28 V	Locking Lever	5 A	15/32-32	On-On	-65 ░C	71 °C	Environment Sealed	Panel Mount	29.46 mm
