P12 Series

Catalog

TERMINALS RING TERMINAL HEAVY DUTY NON-INSULD

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Width - Outer Edges [x]	Width - Outer Edges [x]	Mounting Type	Length - Overall [x]	Length - Overall [x]	Terminal Type	Thickness	Thickness	Features	Termination	Insulation	Stud/Tab Size	Contact Material	Stud/Tab Size	Width - Outer Edges	Panel Thickness [Min]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Color	Material	Type Attributes	Opening Size [Min]	Opening Size [Max]	Opening Size [Max] [z]	Opening Size [Min] [z]	Type	Width - Outer Edges [y]	Width - Outer Edges [y]

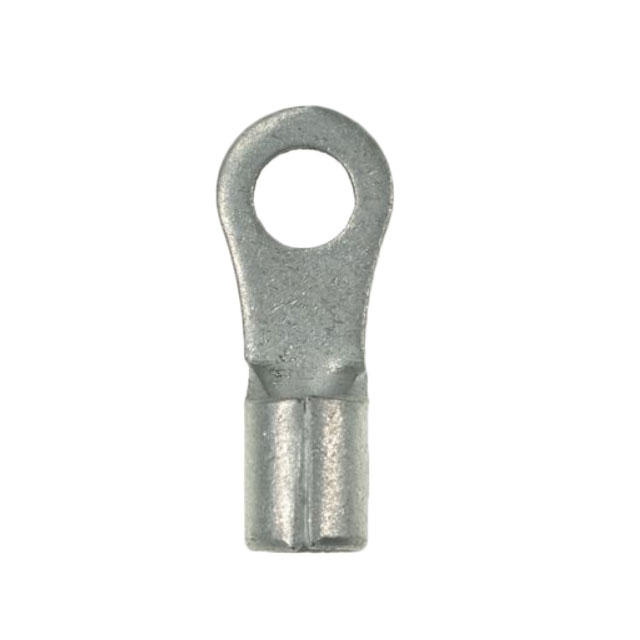

Panduit Corp P12-38HDR-L	12 AWG	16 AWG	Tin	14.73 mm	0.58 in	Free Hanging (In-Line)	26.42 mm	1.04 "	Circular	50 mils	0.05 in	Brazed Seam Heavy Duty	Crimp	Non-Insulated	3/8 Stud	Copper
Panduit Corp P12-14HDR-D	12 AWG	16 AWG	Tin		0.52 in	Free Hanging (In-Line)	24.38 mm	0.96 "	Circular	50 mils	0.05 in	Brazed Seam Heavy Duty	Crimp	Non-Insulated		Copper	0.25 Stud	13.21 mm
Panduit Corp P12-56HDR-L	12 AWG	16 AWG	Tin		0.52 in	Free Hanging (In-Line)	24.38 mm	0.96 "	Circular	50 mils	0.05 in	Brazed Seam Heavy Duty	Crimp	Non-Insulated		Copper	0.3125 Stud	13.21 mm

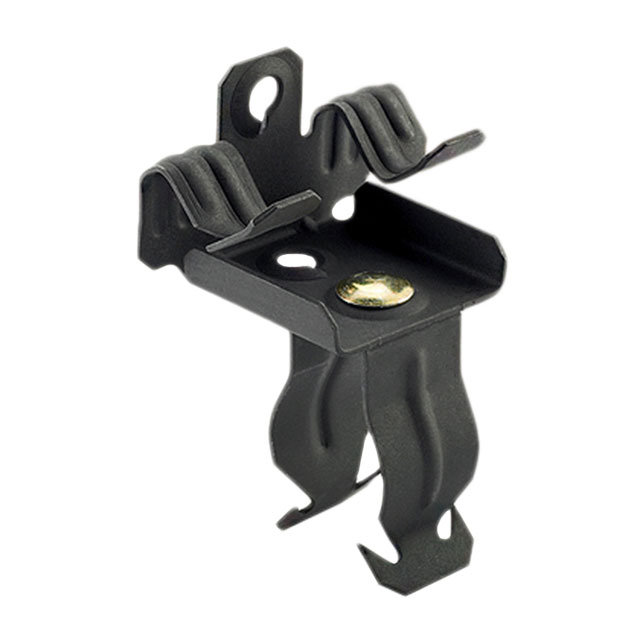

Panduit Corp P12P58						Beam Mount Hammer On						360° Rotation							7.95 mm	0.313 in	0.5 in	12.7 mm	Metallic	Metal	Push-Fit	12.7 mm	19.05 mm	0.75 in	0.5 in	Clip Conduit

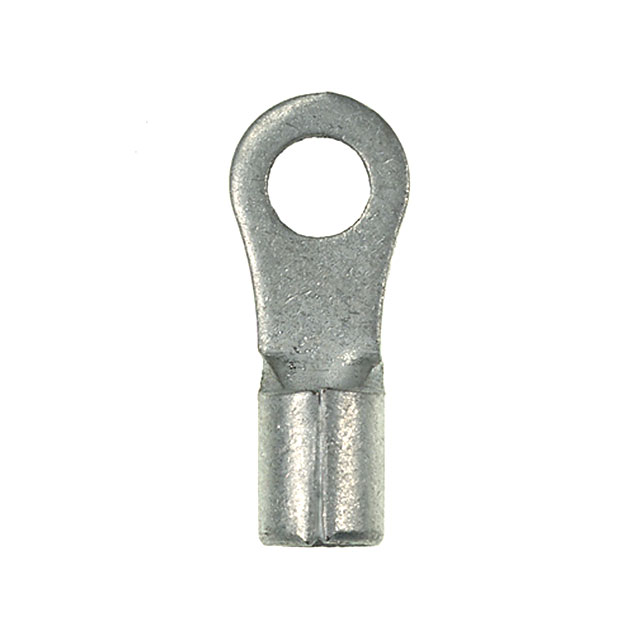

Panduit Corp P12-10HDR-D	12 AWG	16 AWG	Tin			Free Hanging (In-Line)	20.57 mm	0.81 in	Circular	50 mils	0.05 in	Brazed Seam Heavy Duty	Crimp	Non-Insulated		Copper	10 Stud														9.4 mm	0.37 in

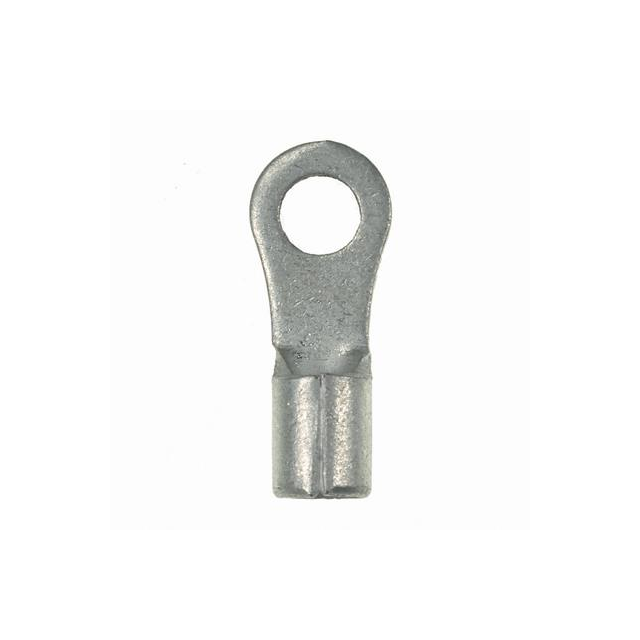

Panduit Corp P12-6HDR-L	12 AWG	16 AWG	Tin			Free Hanging (In-Line)	19.81 mm	0.78 in	Circular	50 mils	0.05 in	Brazed Seam Heavy Duty	Crimp	Non-Insulated		Copper	6 Stud	7.87 mm														0.31 in
Panduit Corp P12-10HDR-L	12 AWG	16 AWG	Tin			Free Hanging (In-Line)	20.57 mm	0.81 in	Circular	50 mils	0.05 in	Brazed Seam Heavy Duty	Crimp	Non-Insulated		Copper	10 Stud														9.4 mm	0.37 in

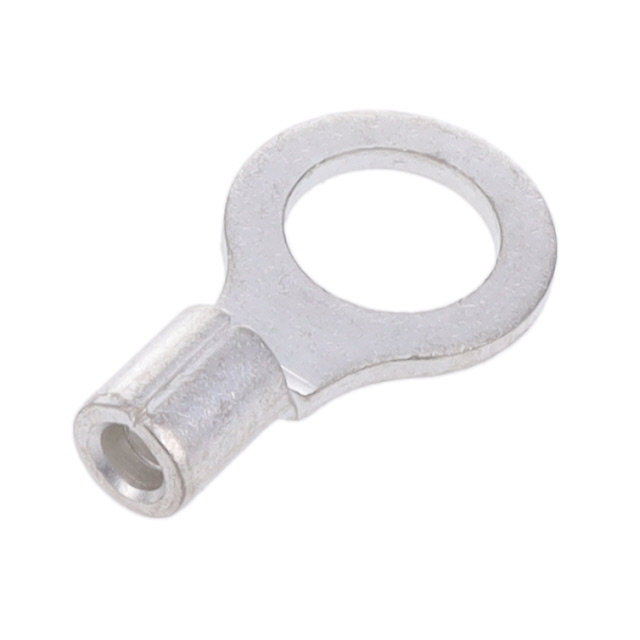

Panduit Corp P12-56HDR-D	12 AWG	16 AWG	Tin		0.52 in	Free Hanging (In-Line)	24.38 mm	0.96 "	Circular	50 mils	0.05 in	Brazed Seam Heavy Duty	Crimp	Non-Insulated		Copper	0.3125 Stud	13.21 mm
