LHA-13 Series
Manufacturer: Adam Tech
Beta
⌘K

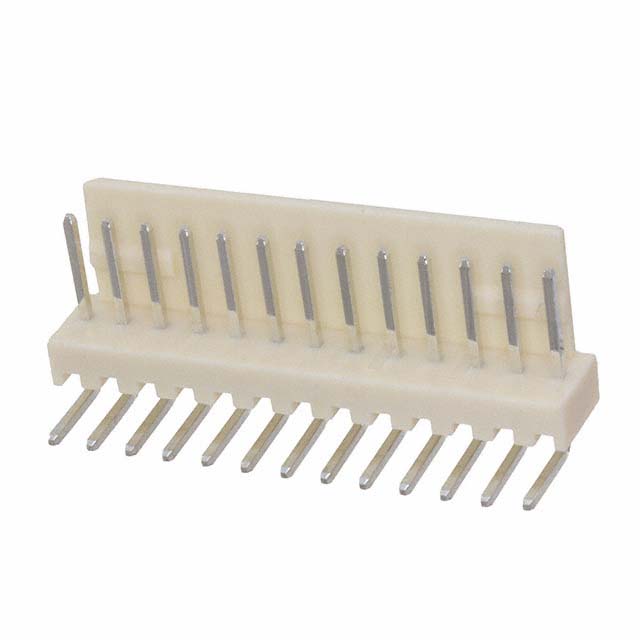

CONN HEADER R/A 13POS 2.54MM
| Part | Number of Positions | Mounting Type | Style | Contact Shape | Connector Type | Contact Material | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Fastening Type | Voltage Rating | Material Flammability Rating | Number of Positions Loaded | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Insulation Material | Contact Type | Termination | Insulation Height [z] | Insulation Height [z] | Contact Length - Mating | Contact Length - Mating [x] | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | 13 | Right Angle Through Hole | Board to Cable/Wire | Square | Header | Brass | 3 A | 0.134 " | 3.4 mm | 0.1 " | 2.54 mm | Tin | Friction Lock | 250 VAC | UL94 V-2 | All | Shrouded - 1 Wall | -40 C | 105 ░C | White | Nylon 6/6 Polyamide (PA66) | Male Pin | Solder | 0.228 " | 5.8 mm | 7 mm | 0.276 in | 1 |
