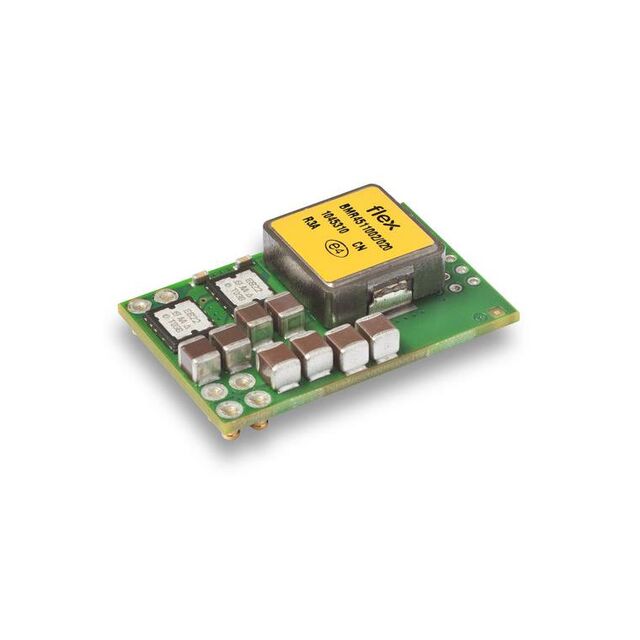

BMR451 Series
Manufacturer: Flex Power Modules
Beta
⌘K
DC DC CONVERTER 0.6-3.6V 144W
| Part | Voltage - Output 1 [Max] [custom] | Voltage - Output 1 [Min] [custom] | Mounting Type | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Approval Agency | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Features | Power (Watts) | Control Features | Applications | Number of Outputs | Efficiency | Voltage - Input (Min) [Min] | Package / Case | Standard Number | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 3.6 V | 0.6 V | Through Hole | Non-Isolated PoL Module Digital | 1.21 " | 0.79 in | 0.32 " | 30.9 mm | 20 mm | 8.2 mm | CB CSA IEC TUV UL | 14 V | 40 A | Adjustable Output PMBus™ Remote On/Off Remote Sense | 144 W | Active Low Enable | ITE (Commercial) | 1 | 94.7 % | 4.5 V | 16-DIP Module | 62368-1 | 120 °C | -40 °C |
Flex Power Modules | 3.6 V | 0.6 V | Surface Mount | Non-Isolated PoL Module Digital | 1.21 " | 0.79 in | 0.32 " | 30.9 mm | 20 mm | 8.2 mm | CB CSA IEC TUV UL | 14 V | 40 A | Adjustable Output PMBus™ Remote On/Off Remote Sense | 144 W | Active Low Enable | ITE (Commercial) | 1 | 94.7 % | 4.5 V | 16-SMD Module | 62368-1 | 120 °C | -40 °C |
