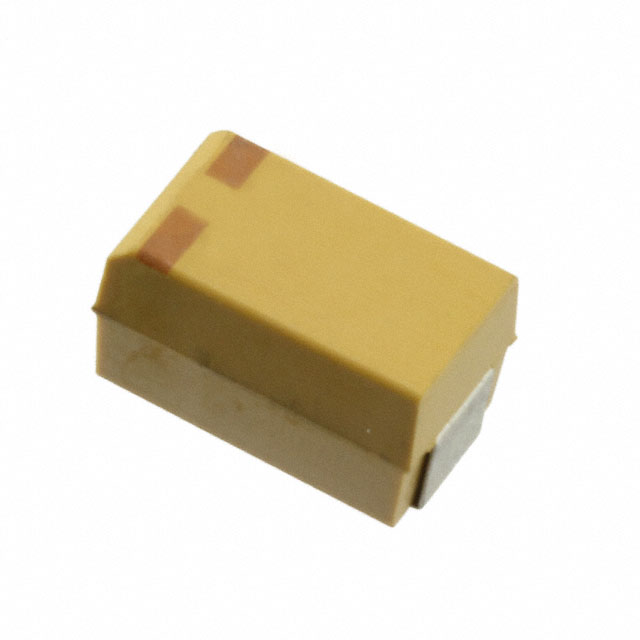

T489D Series

Manufacturer: KEMET

Catalog

SURFACE MOUNT TANTALUM CAPACITOR, T489 SERIES, 100 F, 20%, 10 V, 2917 [7343-31 METRIC], D ROHS COMPLIANT: YES

Part	Lifetime @ Temp.	Features	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Type	Capacitance	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case
KEMET T489D107M010ATE440	2000 Hrs	General Purpose	Surface Mount	0.122 in	3.1 mm	10 V	-55 C	125 °C	20 %	Molded	100 µF	D	440 mOhm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T489D685M050ATE700	2000 Hrs	General Purpose	Surface Mount	0.122 in	3.1 mm	50 VDC	-55 C	125 °C	20 %	Molded	6.8 µF	D	700 mOhm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T489D106M035ATE800	2000 Hrs	General Purpose	Surface Mount	0.122 in	3.1 mm	35 V	-55 C	125 °C	20 %	Molded	10 µF	D	800 mOhm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T489D227K010ATE500	2000 Hrs	General Purpose	Surface Mount	0.122 in	3.1 mm	10 V	-55 C	125 °C	10 %	Molded	220 µF	D	500 mOhm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T489D107K016ATE440	2000 Hrs	General Purpose	Surface Mount	0.122 in	3.1 mm	16 V	-55 C	125 °C	10 %	Molded	100 µF	D	440 mOhm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
KEMET T489D106K035ATE800	2000 Hrs	General Purpose	Surface Mount	0.122 in	3.1 mm	35 V	-55 C	125 °C	10 %	Molded	10 µF	D	800 mOhm	0.169 "	7.3 mm	0.287 "	4.3 mm	2917 (7343 Metric)
