SFH620 Series

Manufacturer: Vishay General Semiconductor - Diodes Division

Catalog

OPTOISOLATOR 5.3KV TRANS 4-DIP

Part	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Turn On / Turn Off Time (Typ)	Package / Case	Current - Output / Channel	Current Transfer Ratio (Min) [Min]	Voltage - Isolation	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max) [Max]	Supplier Device Package	Vce Saturation (Max) [Max]	Voltage - Output (Max) [Max]	Number of Channels	Current Transfer Ratio (Max)	Mounting Type	Current Transfer Ratio (Max) [Max]
Vishay General Semiconductor - Diodes Division SFH620A-1	1.25 V	100 °C	-55 °C	1.81 mOhm	2.3 µs 3 µs	4-DIP (0.300" 7.62mm)	50 mA	40 %	5300 Vrms	2 µs	2 µs	60 mA	4-DIP	400 mV	70 V	1	125 %	Through Hole
Vishay General Semiconductor - Diodes Division SFH620A-2X006	1.25 V	100 °C	-55 °C	1.81 mOhm	2.3 µs 3 µs	4-DIP	50 mA	63 %	5300 Vrms	2 µs	2 µs	60 mA	4-DIP	400 mV	70 V	1	200 %	Through Hole
Vishay General Semiconductor - Diodes Division SFH620A-2X016	1.25 V	100 °C	-55 °C	1.81 mOhm	2.3 µs 3 µs	4-DIP	50 mA	63 %	5300 Vrms	2 µs	2 µs	60 mA	4-DIP	400 mV	70 V	1	200 %	Through Hole
Vishay General Semiconductor - Diodes Division SFH620A-1X006	1.25 V	100 °C	-55 °C	1.81 mOhm	2.3 µs 3 µs	4-DIP	50 mA	40 %	5300 Vrms	2 µs	2 µs	60 mA	4-DIP	400 mV	70 V	1	125 %	Through Hole
Vishay General Semiconductor - Diodes Division SFH620A-3X006	1.25 V	100 °C	-55 °C	1.81 mOhm	2.3 µs 3 µs	4-DIP	50 mA	100 %	5300 Vrms	2 µs	2 µs	60 mA	4-DIP	400 mV	70 V	1	320 %	Through Hole

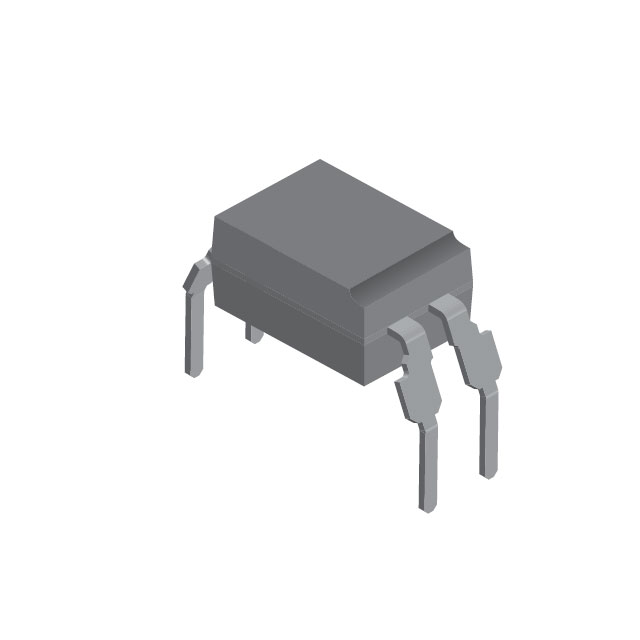

Vishay General Semiconductor - Diodes Division SFH620A-3X016	1.25 V	100 °C	-55 °C	1.81 mOhm	2.3 µs 3 µs	4-DIP	50 mA	100 %	5300 Vrms	2 µs	2 µs	60 mA	4-DIP	400 mV	70 V	1	320 %	Through Hole
Vishay General Semiconductor - Diodes Division SFH620A-2X017T	1.25 V	100 °C	-55 °C	1.81 mOhm	2.3 µs 3 µs	4-SMD Gull Wing	50 mA	63 %	5300 Vrms	2 µs	2 µs	60 mA	4-SMD	400 mV	70 V	1	200 %	Surface Mount
Vishay General Semiconductor - Diodes Division SFH620AGB-X019T	1.25 V	100 °C	-55 °C	1.81 mOhm	2 µs 25 µs	4-SMD Gull Wing	50 mA	100 %	5300 Vrms			60 mA	4-SMD	400 mV	70 V	1		Surface Mount	600 %
