PDF700S Series

Catalog

SWITCHING POWER SUPPLIES 700W 90 264VACIN 12VOUT 58.4A FULL BRICK

Part	Load Regulation	Line Regulation	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Features	Approval Agency	Current - Output (Max) [Max]	Power (Watts)	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Standard Number	Mounting Type	Applications	Package / Case	Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1
Cincon Electronics Co. LTD PDF700S120	0.5 %	0.5 %	87.5 %	264 VAC	90 VAC	Adjustable Output Baseplate PFC Remote On/Off Universal Input	CE cURus DEMKO	58.4 A	701 W	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	62368-1	Through Hole	ITE (Commercial)	Full Brick	Enclosed	12 V	-40 °C	100 °C

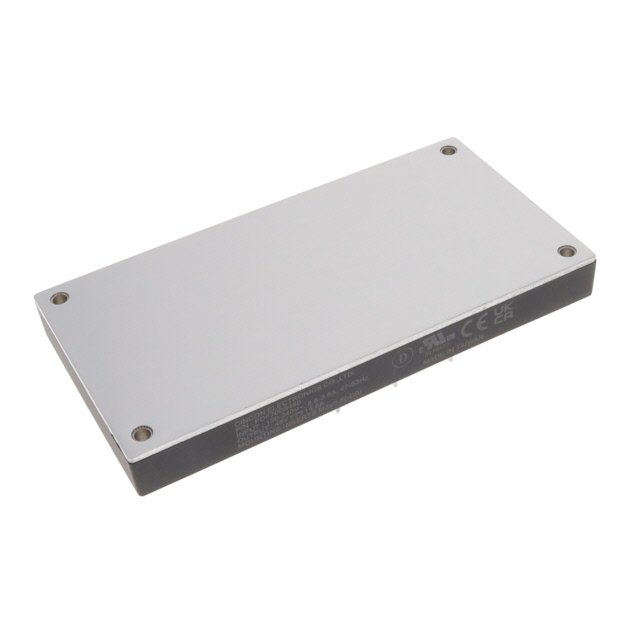

Cincon Electronics Co. LTD PDF700S480	0.5 %	0.5 %	91 %	264 VAC	90 VAC	Adjustable Output Baseplate PFC Remote On/Off Universal Input	CE cURus DEMKO	14.6 A	701 W	1	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	62368-1	Through Hole	ITE (Commercial)	Full Brick	Enclosed	48 V	-40 °C	100 °C

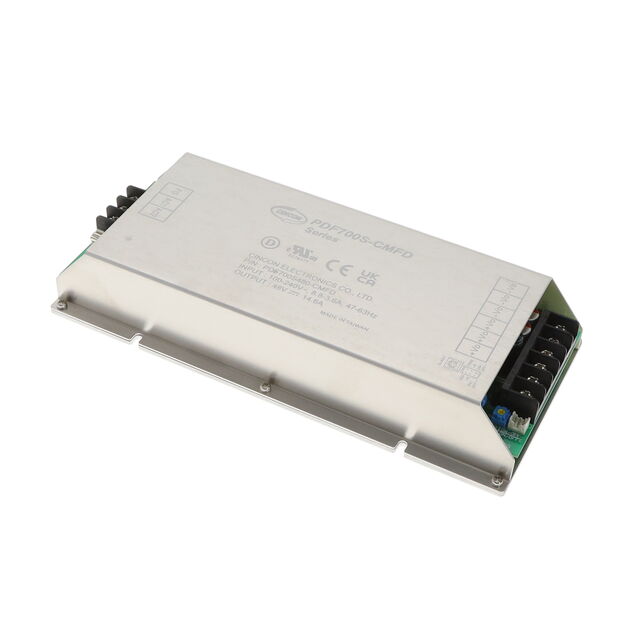

Cincon Electronics Co. LTD PDF700S480-CMFD			91.5 %	264 VAC	90 VAC	Adjustable Output Baseplate Remote On/Off Remote Sense Universal Input			600 W	1								Chassis Mount	ITE (Commercial)		Enclosed	48 V	-40 °C	95 °C	12.5 A
